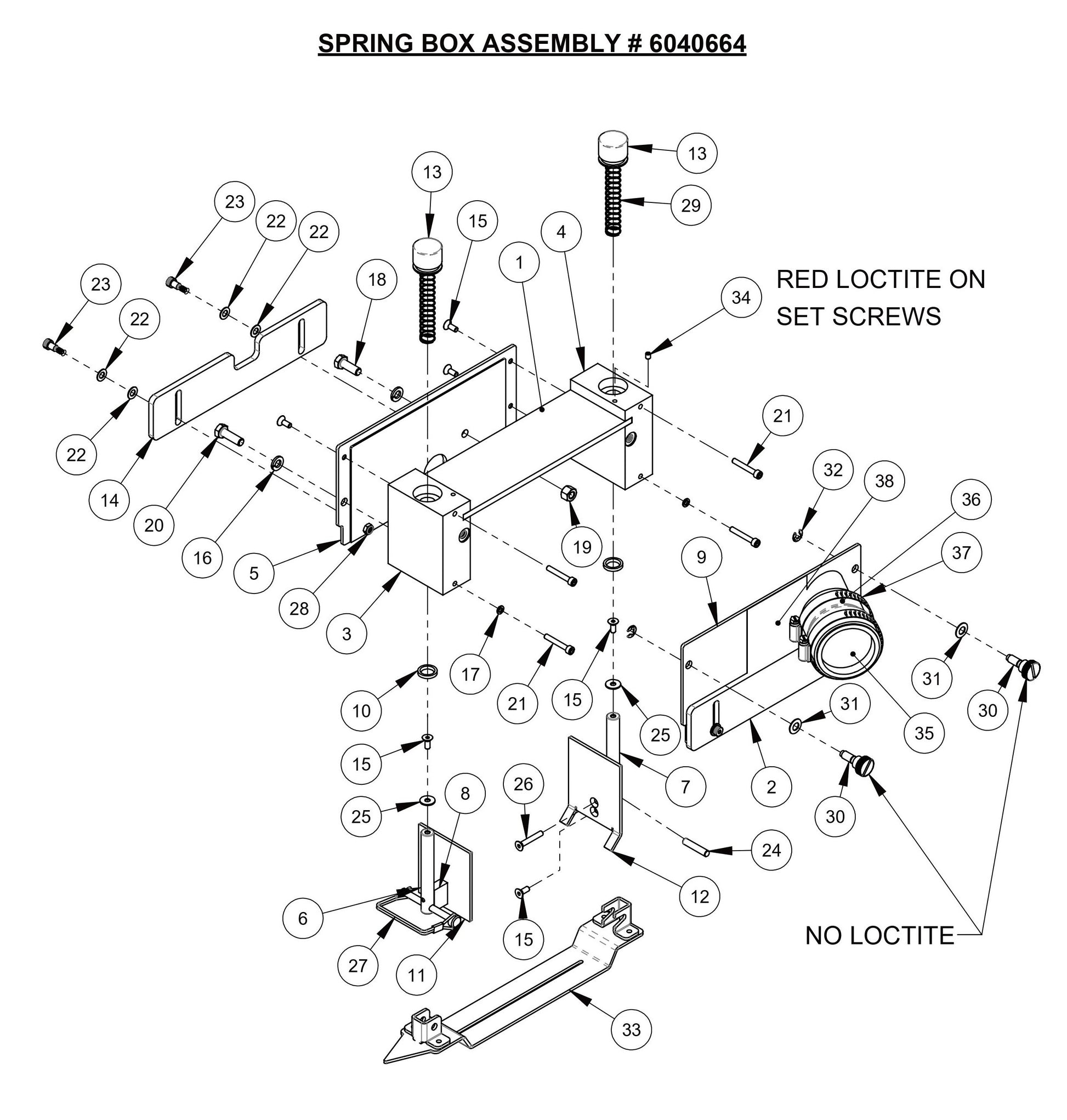

CC125BXL-EE6 Spring Box Assembly Parts

CC125BXL-EE6 Spring Box Assembly Parts

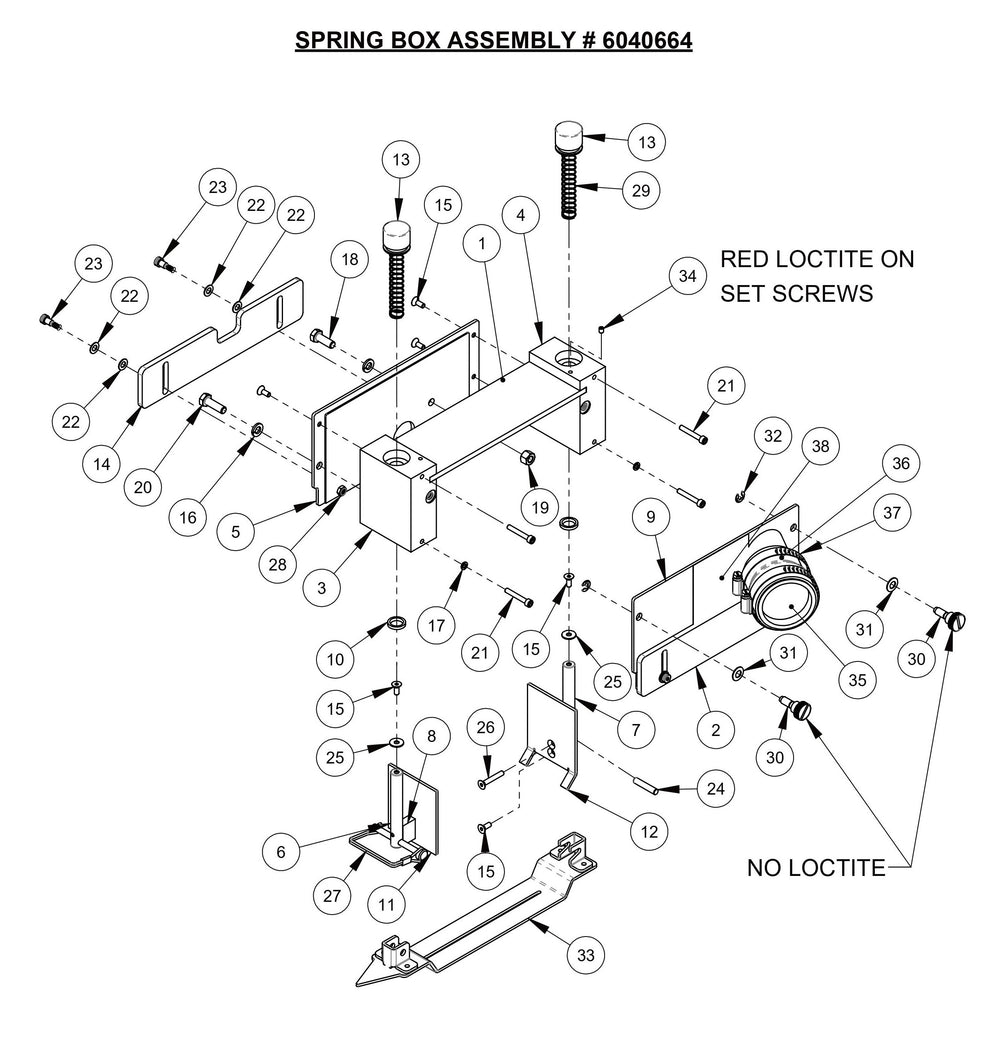

  • CC125XL-EE (Spring Box Assembly)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6040655 Cover, Top Spring Box for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$19.77
3
6040654 Spring Block, Rear 6" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$144.54
4
6040653 Spring Block, Front 6" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$144.54
5
6040652 Cover, Inner Spring Box for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$74.46
6
6040658 Shaft, Spring Block Rear for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$121.20
7
6040657 Shaft, Spring Block Front for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$121.20
8
6040659 Block, Dust Diverter for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$70.08
10
2504593 Shaft Seal, 1/2" Shaft for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$28.52
12
6040660 Diverter, Front Dust for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$36.32
13
6040656 Spring Block Cap for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$52.07
14
6040663 Cover, Inner Lexan for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$35.87
15
2900456 Cap Screw, Flat Hd., #10-32 x 1/2" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
16
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
17
2900038 Lock Washer #10 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
18
2900668 Cap Screw, Hex Hd., 5/16-18 x 7/8" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
19
2900039 Lock Nut 5/16-18 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
20
2900138 5/16-18x1.00 HEX CAP SCREW for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
21
2901584 Cap Screw, Soc. Hd., #10-32 x 1-1/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$3.99
24
2900577 Dowel Pin, 1/4" Dia x 1-1/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$4.10
25
2900770 Fender Washer, M5 for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
26
2907093 Cap Screw, Flat Hd., #10-32 x 1-1/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
27
2901589 Pin, Safety 1/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$13.64
28
2902007 Jam Lock Nut, #10-24 Nylon for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
30
6040385 Captive Thumb Screw, 5/16-18 for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$51.80
31
2901963 Washer, Belleville 5/16" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$6.99
32
2504645 Retaining Ring, 5/16 Ext. for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
34
2900059 Set Screw, Soc. Hd., #10-32 x 1/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
37
3200096 Hose Clamp #40 for CC6561 Concrete Saw Core Cut by Diamond Products
$11.71
38
1802443 DP Symbol Decal for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$17.96
39
2502046 Grease Fuchs Synthetic for CC5555-3 Concrete Saw Core Cut by Diamond Products
$104.38
2
6040662 Cover, Outer Lexan for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$41.82
22
2901585 Flat Washer, 1/4" Nylon for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$6.99
23
2902008 Shoulder Screw, 1/4" x 5/16 (#10-24) for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$6.99
29
2504643 Spring, Comp. .60 x .045 x 3.50 Long for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$13.03
9
6040774 Vac Attachment Covor Weldment fits CC125XL-EE by Core Cut Diamond Products
$120.78
11
6040813 Diverter, Rear Dust fits CC125XL-EE by Core Cut Diamond Products
$17.50
33
2505180 Skid Plate Weldent -6/8" Blade - .156Slot fits CC125XL-EE by Core Cut Diamond Products
$8.00
36
2506008 Hose Reducer, 2.25"-2" ID fits CC125XL-EE by Core Cut Diamond Products
$62.07
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
