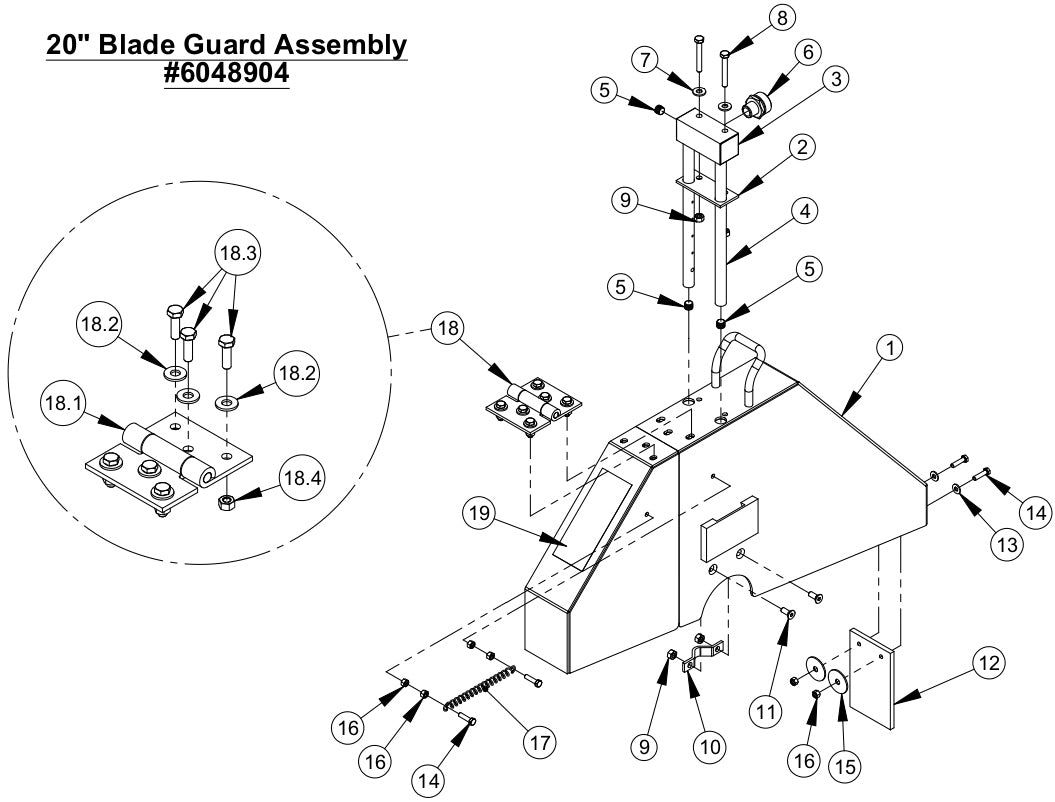

CC1300 XL 20" Blade Guard Assembly

CC1300 XL 20" Blade Guard Assembly

  • CC1300 XL 20" Blade Guard Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products 20" BLADE GUARD ONLY FOR CC1310 SAW SLIP-ON STYLE 6048905
$450.45
5
3200001 Plug, 1/8" NPT for CC6571 Concrete Saw Core Cut by Diamond Products
$5.95
7
2900009 Flat Washer, 1/4" SAE for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
18.2
2900009 Flat Washer, 1/4" SAE for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900244 Cap Screw, Hex Hd., M6 x 45mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
9
2900302 Lock Nut, M6 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
18.4
2900302 Lock Nut, M6 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
11
2900308 Cap Screw, Flat Hd. Soc., M6 x 16mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
12
6048039 Splash Flap for CC1100 Concrete Saw Core Cut by Diamond Products
$8.57
13
2900016 Flat Washer, #10 USS for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900309 Cap Screw, Hex Hd., M5 x 20mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
15
2900083 Fender Washer, 1/4" x 1-1/4" for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
16
2900301 Lock Nut, M5 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
17
2500067 Spring 3/8 X .055 X 4" for Core Cut CC1800 XL Saw by Diamond Products
$10.76
18.3
2900310 Cap Screw, Hex Hd., M6 x 20mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
2
2500829 Water Manifold Gasket for CC1113-XL Concrete Saw Core Cut by Diamond Products
$6.99
3
6048123 Water Manifold for CC1113-XL Concrete Saw Core Cut by Diamond Products
$27.11
4
6010085 Water Tube for 20" Guard for CC3535 Concrete Saw Core Cut by Diamond Products
$33.01
6
3200002 Fitting 3/8" M. Pipe to 3/4" M. Garden for CC5555-3 Concrete Saw Core Cut by Diamond Products
$22.32
10
6048155 Water Tube Clamp for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
18
Diamond Products HINGE ASSEMBLY (METRIC) FOR 18"-24" BLADE GUARDS 6048027
$46.04
18.1
2500270 Blade Guard Hinge for CC1113-XL Concrete Saw Core Cut by Diamond Products
$43.04
19
1800001 Warning Label for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
