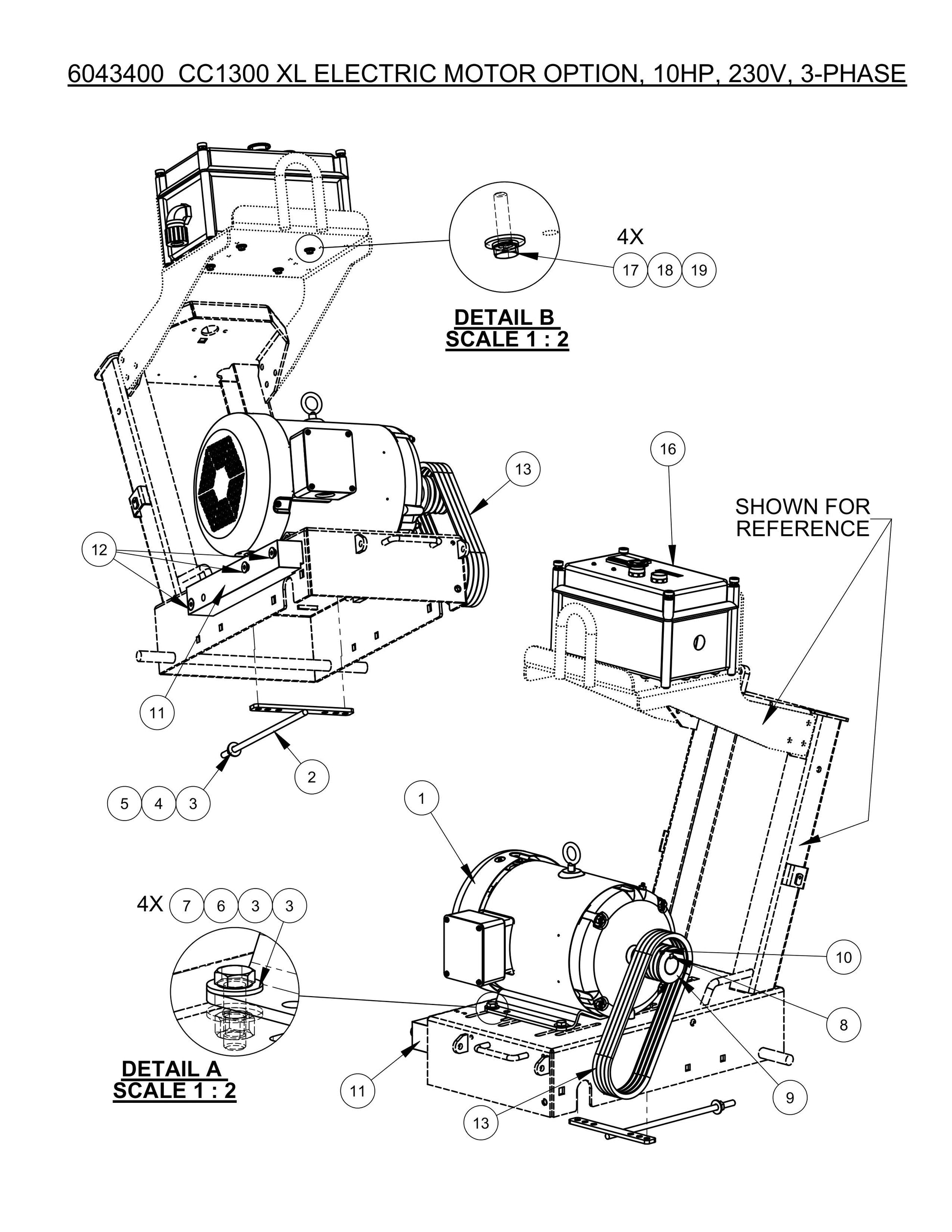

CC1300XL ELECTRIC MOTOR OPTION, 10HP, 230V, 3-PHASE

CC1300XL ELECTRIC MOTOR OPTION, 10HP, 230V, 3-PHASE

  • CC1300XL ELECTRIC MOTOR OPTION, 10HP, 230V, 3-PHASE
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products 10HP-3PH BALDOR MOTOR 230/460 VOLT 2600187
$3,178.89
2
6040261 Belt Adjustment Weldment for CC1300 XL Walk Behind Saw by Core Cut Diamond Products
$45.50
3
2900473 Flat Washer, 3/8" USS for CC1507E Basement Saw Core Cut by Diamond Product
$2.99
4
2900321 Lock Washer, M10 Split fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$2.99
5
2900325 Hex Nut, M10-1.5 for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
6
2900223 Cap Screw, Hex Hd., M10-1.5 x 30mm for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
7
2900304 Lock Nut, M10-1.5 Nylon Insert for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
8
6048046 Key, 5/16" Sq. x 1-1/2" for CC1507E Basement Saw Core Cut by Diamond Product
$4.99
9
Diamond Products SHEAVE 2.65 X 1.375 BORE 3V-4 GROOVE 6048897
$97.26
10
2900036 Set Screw, Soc. Hd., 5/16-18 x 1/4" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
11
6048319 Blade Guard Spacer 2" Wide for CC1800 Core Cut Saws by Diamond Products
$90.07
12
2900908 Cap Screw, Flat Hd., M10-1.5 x 80mm for CC6561 Concrete Saw Core Cut by Diamond Products
$7.92
13
2500380 V-Belt, 3VX300 for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$49.76
14
6048181 Frame Weldment (Regular Cut) fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$990.00
15
6030318 Lift Bar Assembly fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$230.67
16
Diamond Products STARTER BOX ASSEMBLY FOR 10HP-3PH MOTOR 230V 6004894
$2,179.98
17
2900311 Cap Screw, Hex Hd., M6-1.0 x 25mm for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
18
2900765 Lock Washer, M6 Split for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
19
2901359 Fender Washer, M6 for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
