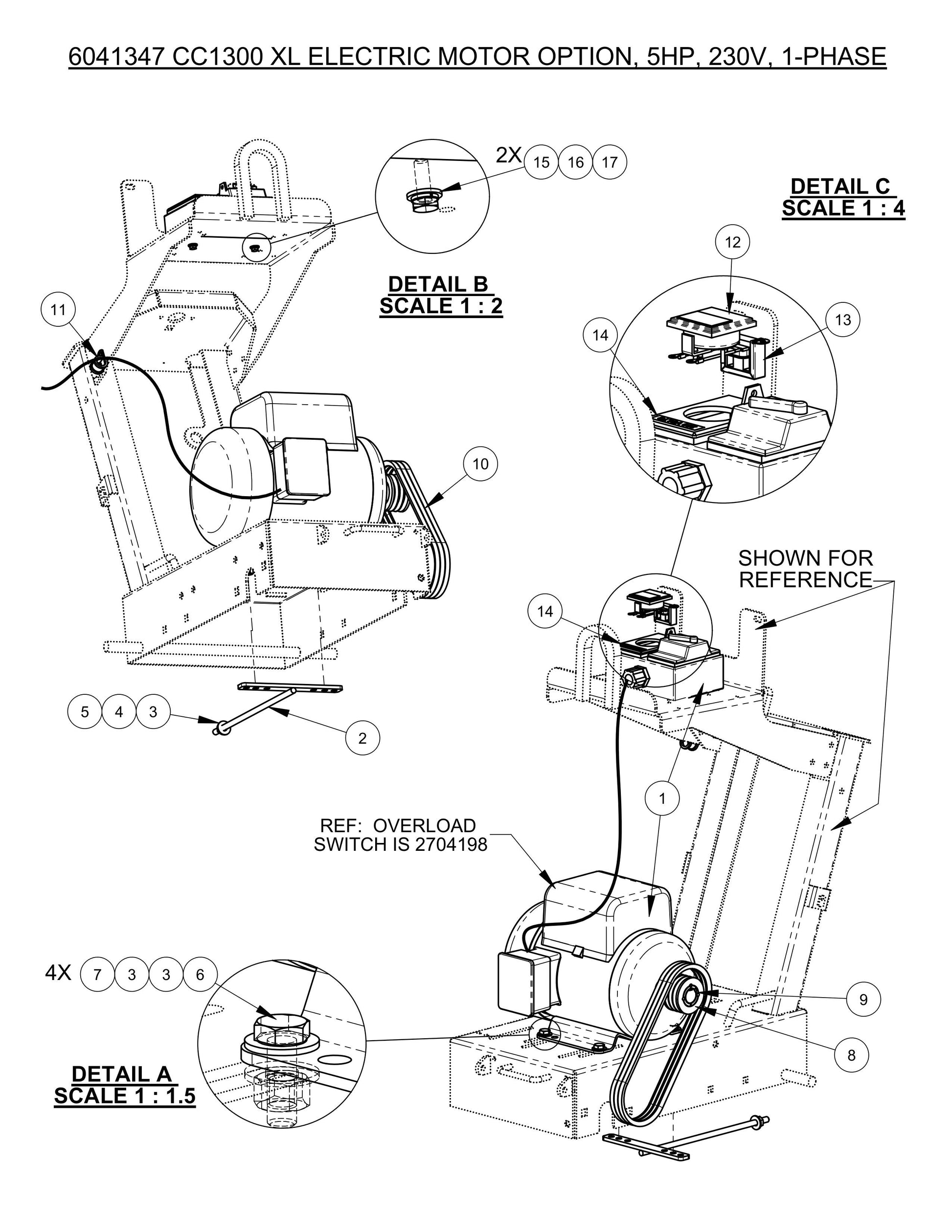

CC1300XL ELECTRIC MOTOR OPTION, 5HP, 230V, 1-PHASE

CC1300XL ELECTRIC MOTOR OPTION, 5HP, 230V, 1-PHASE

  • CC1300XL ELECTRIC MOTOR OPTION, 5HP, 230V, 1-PHASE
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products 5HP-1PH BALDOR MOTOR WITH SWITCH BOX & PIGTAIL 3450RPM, 184T FRAME, 230V TEFC 2600278
$3,407.58
2
6040261 Belt Adjustment Weldment for CC1300 XL Walk Behind Saw by Core Cut Diamond Products
$45.50
3
2900473 Flat Washer, 3/8" USS for CC1507E Basement Saw Core Cut by Diamond Product
$2.99
4
2900321 Lock Washer, M10 Split fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$2.99
5
2900325 Hex Nut, M10-1.5 for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
6
2900223 Cap Screw, Hex Hd., M10 x 30mm for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
7
2900304 Lock Nut, M10-1.5 Nylon Insert for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
8
2500022 Sheave, 2.65-3 Groove for CC1100 Concrete Saw Core Cut by Diamond Products
$122.76
9
2500027 Bushing, 1-1/8" for 5 HP Electric for CC1100 Concrete Saw Core Cut by Diamond Products
$48.42
10
2500380 V-Belt, 3VX300 for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$49.76
12
2800253 Amp Meter w/ Bracket, 0-40 AC for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$93.62
13
2800085 AC Current Transformer for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$65.32
14
Diamond Products VOLTAGE LABEL 230 VOLTS 1/2" X 2-1/4" LONG 1800810
$4.99
15
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
16
2900024 Lock Washer 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
17
2900144 Cap Screw, Hex Hd., 1/4-20 x 3/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
18
6048181 Frame Weldment (Regular Cut) fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$990.00
19
6030318 Lift Bar Assembly fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$230.67
11
Call for Price call for price call for price
