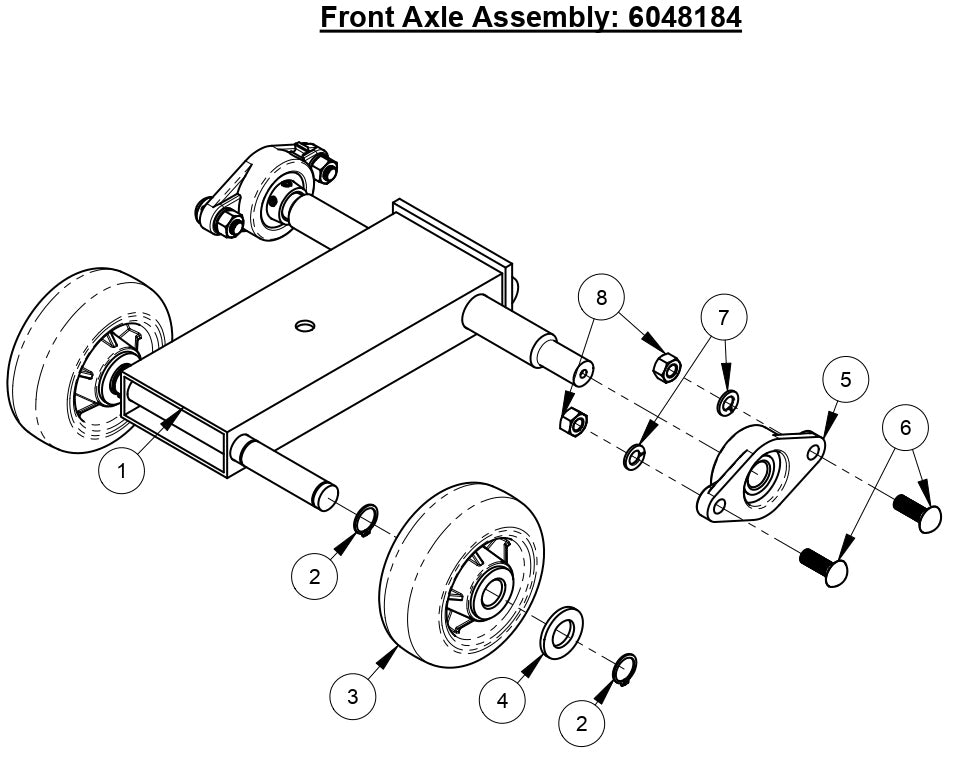

CC1300 XL Front Axle Assembly

CC1300 XL Front Axle Assembly

  • CC1300 XL Front Axle Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6040212 Front Axle Weldment for CC1507E Basement Saw Core Cut by Diamond Product
$164.40
2
2501186 Retaining Ring, External 3/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$4.99
3
2500005 Wheel, 5" x 2" x 3/4" for CC1507E Basement Saw Core Cut by Diamond Product
$48.42
4
2900003 Flat Washer, 3/4" SAE for CC1100 Concrete Saw Core Cut by Diamond Products
$3.99
5
2500011 Flange Mt. Bearing 3/4" Peer UCFT204-12-90 for CC1507E Basement Saw Core Cut by Diamond Product
$41.76
6
2900046 Carriage Bolt, 3/8-16 x 1-1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
7
2900321 Lock Washer, M10 Split fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$2.99
8
2900304 Lock Nut, M10 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
View full details
