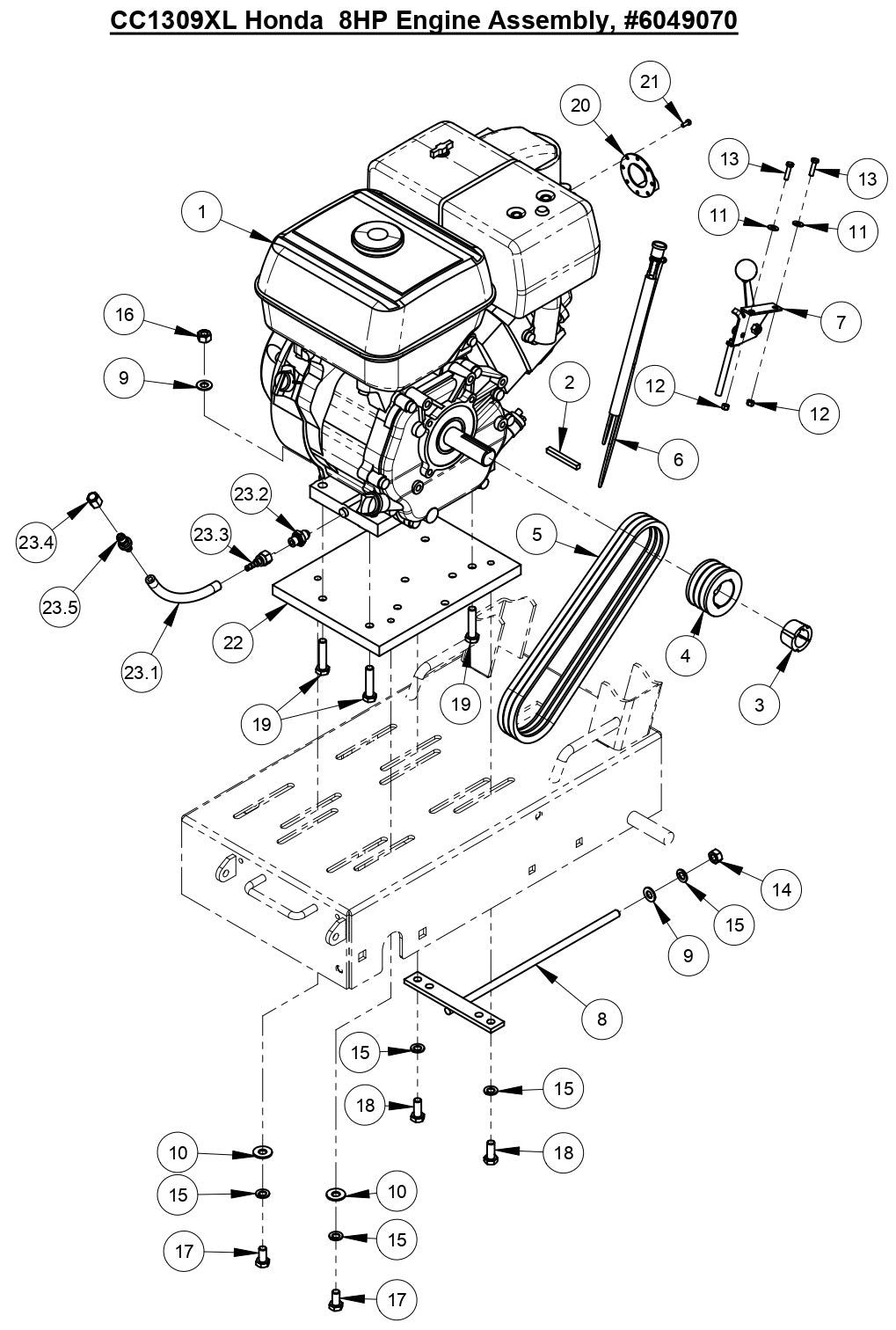

CC1309 XL Honda 8 HP Engine Assembly

CC1309 XL Honda 8 HP Engine Assembly

  • CC1309 XL Honda 8 HP Engine Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600160 Engine, 8HP Honda GX270 for CC1200XL Concrete Saw Core Cut by Diamond Products
$1,587.60
2
6048134 Key, 1/4" Sq. x 2-1/4" for CC1200 Concrete Saw Core Cut by Diamond Products
$3.99
3
2500026 Bushing, 1" for CC1100 Concrete Saw Core Cut by Diamond Products
$47.35
4
2500022 Sheave, 2.65-3 Groove for CC1100 Concrete Saw Core Cut by Diamond Products
$122.76
5
2500034 V-Belt, 3VX315 (Up-Cut) for CC1113-XL Concrete Saw Core Cut by Diamond Products
$35.51
6
6048789 Wire Harness, Stop Switch for CC1113-XL Concrete Saw Core Cut by Diamond Products
$103.15
7
2501565 Throttle Control, 15" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$28.44
8
6040261 Belt Adjustment Weldment for CC1300 XL Walk Behind Saw by Core Cut Diamond Products
$45.50
9
2900014 Flat Washer, 3/8" SAE fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$2.99
10
2900473 Flat Washer, 3/8" USS for CC1507E Basement Saw Core Cut by Diamond Product
$2.99
11
2900016 Flat Washer, #10 USS for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
12
2900301 Lock Nut, M5-0.8 Nylon Insert for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900309 Cap Screw, Hex Hd., M5 x 20mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
14
2900325 Hex Nut, M10-1.5 for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
15
2900321 Lock Washer, M10 Split fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$2.99
16
2900304 Lock Nut, M10-1.5 Nylon Insert for Core Cut CC1800XL Concrete Walk Behind Saw Parts by Diamond Products
$2.99
17
2900314 Cap Screw, Hex Hd., M10-1.5 x 20mm fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$3.99
18
2900333 Cap Screw, Hex Hd., M10-1.5 x 25mm for CC6571 Concrete Saw Core Cut by Diamond Products
$3.99
19
2900317 Hex Cap Screw M10 1.5 x 45mm 2900317 for CC1800 XL and CC2500 Saw by Core Cut Diamond Products
$4.99
20
2700554 Muffler Deflector, 11-13 HP Honda for CC1113-XL Concrete Saw Core Cut by Diamond Products
$32.28
21
2900206 Screw, Self Tapping, #8-32 x 3/8" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
22
Diamond Products ADAPTER PLATE/9HP MOT. USED ON CC1309-XL HONDA ENGINE. 6048186
$157.50
23
6048029 Oil Drain Assembly for CC1113-XL Concrete Saw Core Cut by Diamond Products
$52.77
23.1
6048289 1/4" x 6.00" Oil Drain Hose for CC1113-XL Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
23.2
3200539 Adapter, M12 x 1.5 M to 5/16" Male JIC for CC1113-XL Concrete Saw Core Cut by Diamond Products
$32.28
23.3
3200540 Fitting, 5/16" F. JIC to 1/4" Pushlock for CC1113-XL Concrete Saw Core Cut by Diamond Products
$12.91
23.4
3200006 Cap, 1/4" JIC for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
23.5
3200040 Fitting, 1/4" M. JIC to 1/4" Push Lock for CC1113-XL Concrete Saw Core Cut by Diamond Products
$11.95
