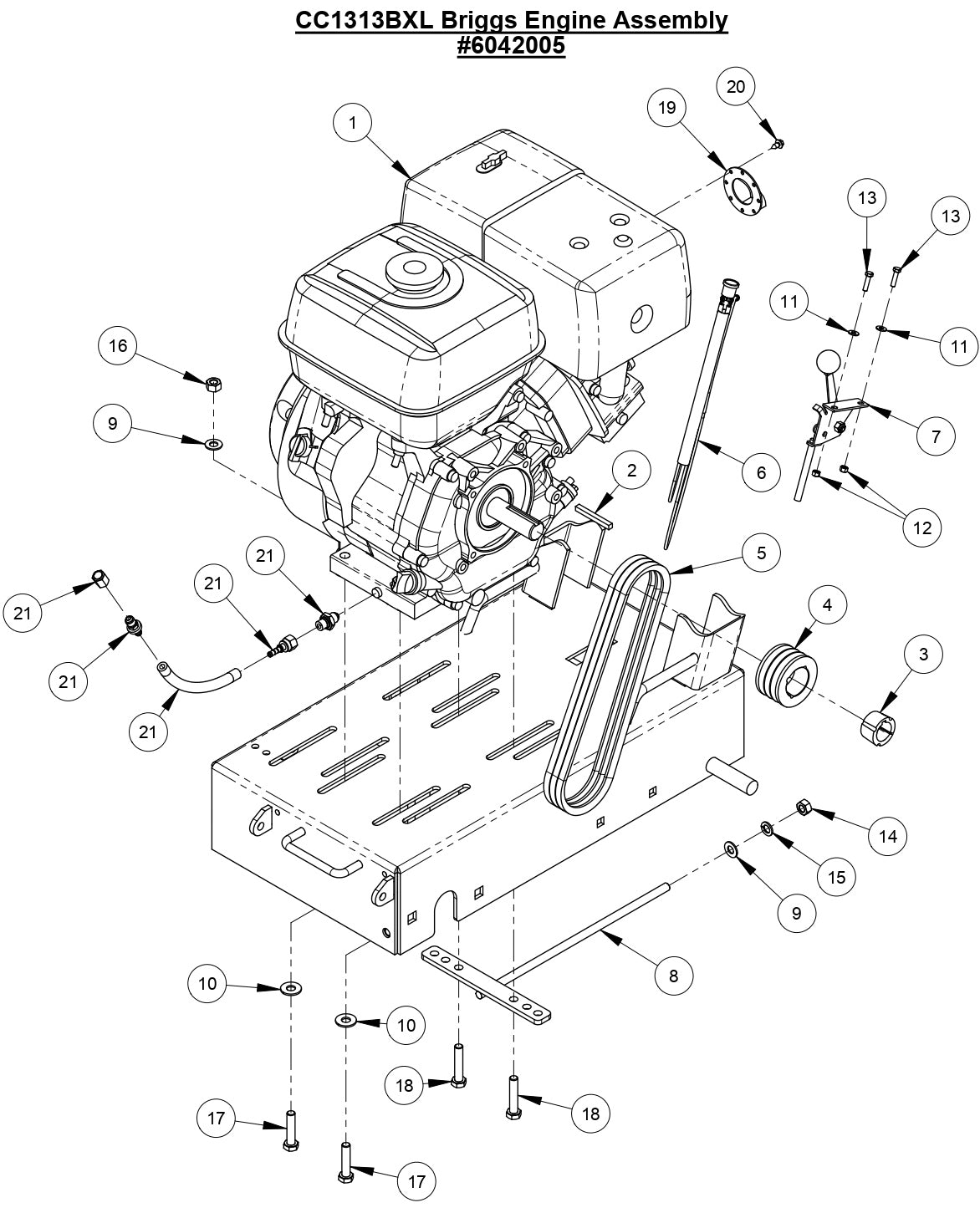

CC1313 BXL Briggs Engine Assembly

CC1313 BXL Briggs Engine Assembly

  • CC1313 BXL Briggs Engine Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600689 Engine, 420cc Briggs for CC1200XL Concrete Saw Core Cut by Diamond Products
$840.00
2
6048134 Key, 1/4" Sq. x 2-1/4" for CC1200 Concrete Saw Core Cut by Diamond Products
$3.99
3
2500026 Bushing, 1" for CC1100 Concrete Saw Core Cut by Diamond Products
$47.35
4
2500022 Sheave, 2.65-3 Groove for CC1100 Concrete Saw Core Cut by Diamond Products
$122.76
5
2500380 V-Belt, 3VX300 (Regular Cut) for CC1113-XL Concrete Saw Core Cut by Diamond Products
$49.76
6
6048789 Wire Harness, Stop Switch for CC1113-XL Concrete Saw Core Cut by Diamond Products
$103.15
7
2501565 Throttle Control, 15" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$28.44
8
6040261 Belt Adjustment Weldment for CC1300 XL Walk Behind Saw by Core Cut Diamond Products
$45.50
9
2900014 Flat Washer, 3/8" SAE for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900473 Flat Washer, 3/8" USS for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900016 Flat Washer, #10 USS for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
12
2900301 Lock Nut, M5-0.8 Nylon Insert for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900309 Cap Screw, Hex Hd., M5 x 20mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
14
2900325 Hex Nut, M10-1.5 for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
15
2900321 Lock Washer, M10 Split fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$2.99
16
2900304 Lock Nut, M10-1.5 Nylon Insert for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
18
2900318 Cap Screw, Hex Hd., M10-1.5 x 50mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$3.99
19
Diamond Products DEFLECTOR FOR BRIGGS 420CC ENGINE 2703419
$24.95
20
Diamond Products SCREW,FOR DEFLECTOR FOR 420CC BRIGGS ENGINE 2703420
$11.31
21
6048029 Oil Drain Assembly for CC1113-XL Concrete Saw Core Cut by Diamond Products
$52.77
17
2900317 Cap Screw,Hex Hd., M10-1.5X45mm fits CC1800XL by Core Cut Diamond Products
$4.99
