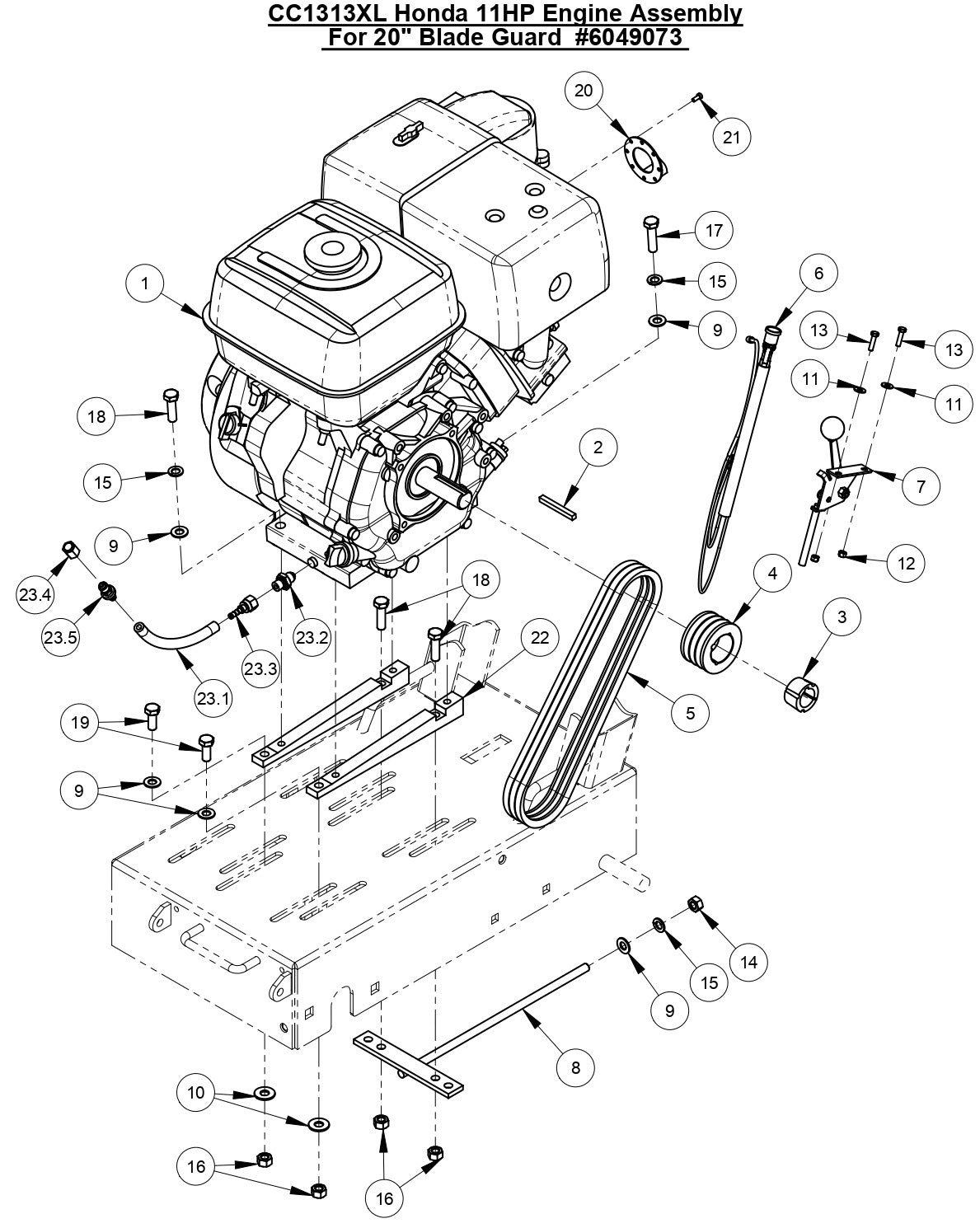

CC1313 XL Honda 11 HP Engine Assembly For 20" Blade Guard

CC1313 XL Honda 11 HP Engine Assembly For 20" Blade Guard

  • CC1313 XL Honda 11 HP Engine Assembly For 20" Blade Guard
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600116 Engine,11 HP Honda GX390 for CC1113-XL Concrete Saw Core Cut by Diamond Products
$1,708.80
2
6048134 Key, 1/4" Sq. x 2-1/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
3
2500026 Bushing, 1" for CC1100 Concrete Saw Core Cut by Diamond Products
$47.35
4
2500022 Sheave, 2.65-3 Groove for CC1100 Concrete Saw Core Cut by Diamond Products
$122.76
5
2500034 V-Belt, 3VX315 (Up-Cut) for CC1113-XL Concrete Saw Core Cut by Diamond Products
$35.51
6
6048789 Wire Harness, Stop Switch for CC1113-XL Concrete Saw Core Cut by Diamond Products
$103.15
7
2501565 Throttle Control, 15" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$28.44
8
6040261 Belt Adjustment Weldment for CC1300 XL Walk Behind Saw by Core Cut Diamond Products
$45.50
9
2900014 Flat Washer, 3/8" SAE for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900473 Flat Washer, 3/8" USS for CC1507E Basement Saw Core Cut by Diamond Product
$2.99
11
2900016 Flat Washer, #10 USS for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900309 Cap Screw, Hex Hd., M5-0.8 x 20mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
14
2900325 Hex Nut, M10-1.5 for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
15
2900321 Lock Washer, M10 Split fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$2.99
16
2900304 Lock Nut, M10-1.5 Nylon Insert for Core Cut CC1800XL Concrete Walk Behind Saw Parts by Diamond Products
$2.99
17
2900316 Cap Screw, Hex Hd., M10-1.5 x 40mm for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
18
Cap Screw, Hex Hd., M10-1.5 x 35mm 2900315 for CC2500 Saw by Core Cut Diamond Products
$3.99
20
2700554 Muffler Deflector, 11-13 HP Honda for CC1113-XL Concrete Saw Core Cut by Diamond Products
$32.28
21
2900206 Screw, Self Tapping, #8-32 x 3/8" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
22
Diamond Products MOTOR MOUNT ADAPTER USED ON CC1300XL W/20" BLADE GUARD 6043196
$53.10
23
6048029 Oil Drain Assembly for CC1113-XL Concrete Saw Core Cut by Diamond Products
$52.77
23.1
6048289 1/4" x 6.00" Oil Drain Hose for CC1113-XL Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
23.2
3200539 Adapter, M12 x 1.5 M to 5/16" Male JIC for CC1113-XL Concrete Saw Core Cut by Diamond Products
$32.28
23.3
3200540 Fitting, 5/16" F. JIC to 1/4" Pushlock for CC1113-XL Concrete Saw Core Cut by Diamond Products
$12.91
23.4
3200006 Cap, 1/4" JIC for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
23.5
3200040 Fitting, 1/4" M. JIC to 1/4" Push Lock for CC1113-XL Concrete Saw Core Cut by Diamond Products
$11.95
19
2900333 Cap Screw, Hex Hd., M10-1.5 x 25mm for CC6571 Concrete Saw Core Cut by Diamond Products
$3.99
12
2900301 Lock Nut, M5-0.8 Nylon Insert for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
