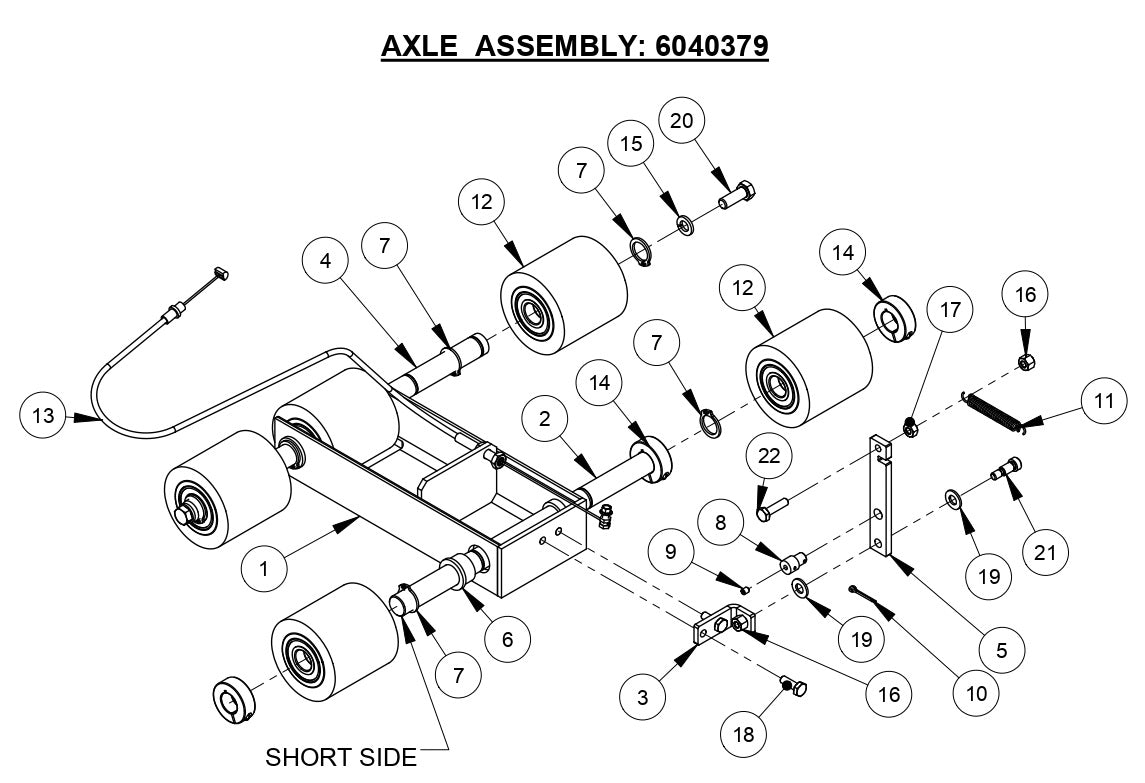

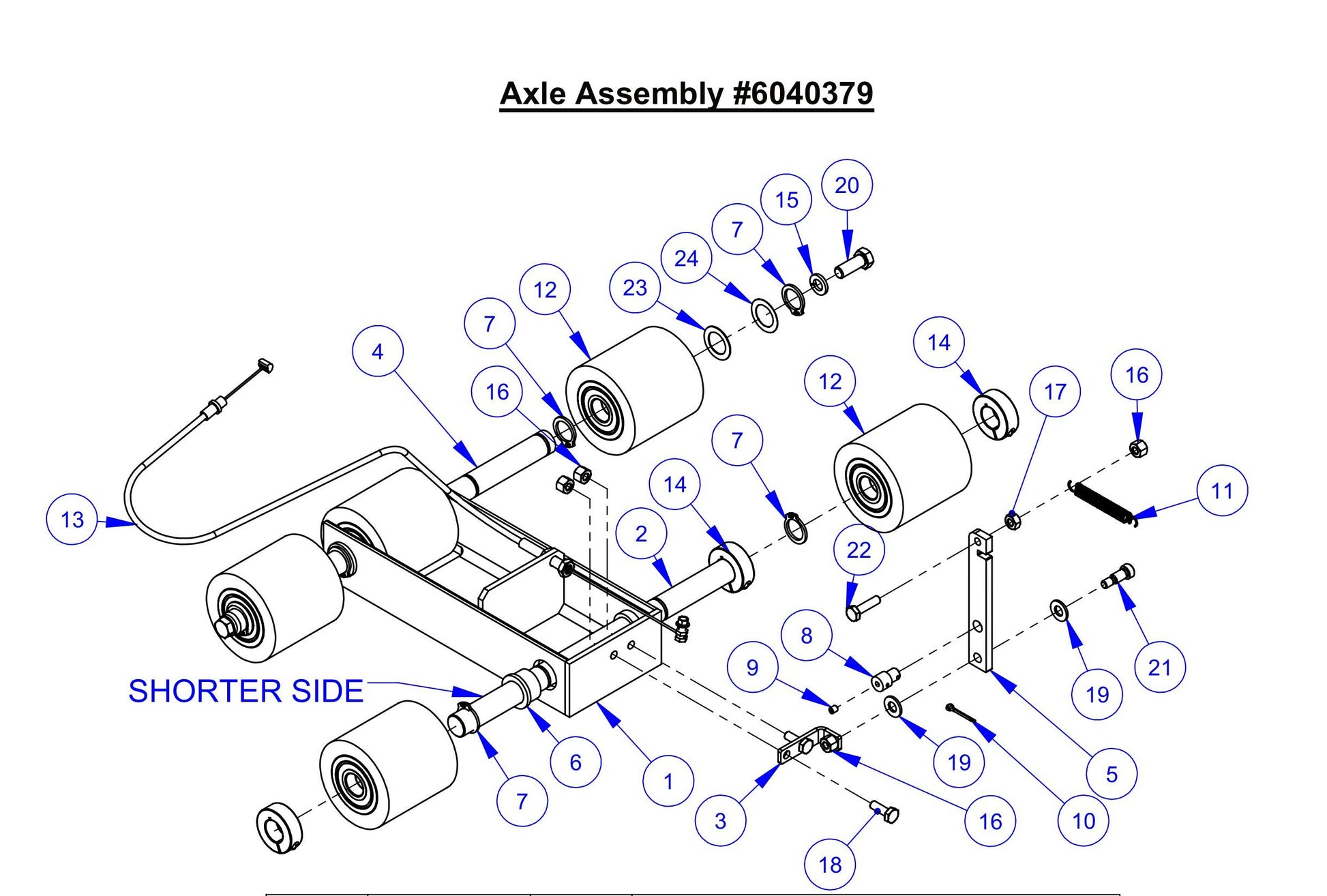

CC150XL-EE Axle Assembly

CC150XL-EE Axle Assembly

  • CC150XL-EE Axle Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6040750 Axle Weldment for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$268.80
2
6040751 Shaft, Front Axle for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$54.42
3
6040754 Bracket, Lift for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$17.36
4
6040549 Shaft, Rear Axle for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$53.58
6
2503189 Bearing, Flanged Bronze 3/4 ID for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$9.89
7
2504805 Retaining Ring, .75 Ext. Heavy Duty for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$4.99
8
6048212 Pivot Pin for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$31.19
9
2900059 Set Screw, Soc. Hd., #10-32 x 1/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
10
2900034 Cotter Pin, 3/32" x 3/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
11
2500066 Spring, Ext 3/8 X .055 X 5" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$10.38
12
2503641 Wheel 3 X 3 X 3/4" Poly for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$119.00
13
2506324 Cable Assembly for CC1113-XL Concrete Saw Core Cut by Diamond Products
$40.00
14
2504577 Shaft Collar, 3/4" Split for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$16.14
15
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
16
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
17
2900125 Hex Nut, 1/4-20 for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
18
2900144 Cap Screw, Hex Hd., 1/4-20 x 3/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
19
2900022 Flat Washer, 5/16" SAE for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
20
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
21
2900051 Shoulder Screw, 5/16" x 1/2" (1/4-20) for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$6.12
22
2900008 Cap Screw, Hex Hd., 1/4-20 x 1" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
23
2505348 Shim, 3/4"X1-1/8"X.030 fits CC150XL by Core Cut Diamond Products
$8.88
24
2900942 Shim, 3/4"X1-1/8"X.015 fits CC150XL by Core Cut Diamond Products
$10.60
5
6040814 Lift Plate fits CC125XL-EE by Core Cut Diamond Products
$17.68
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
