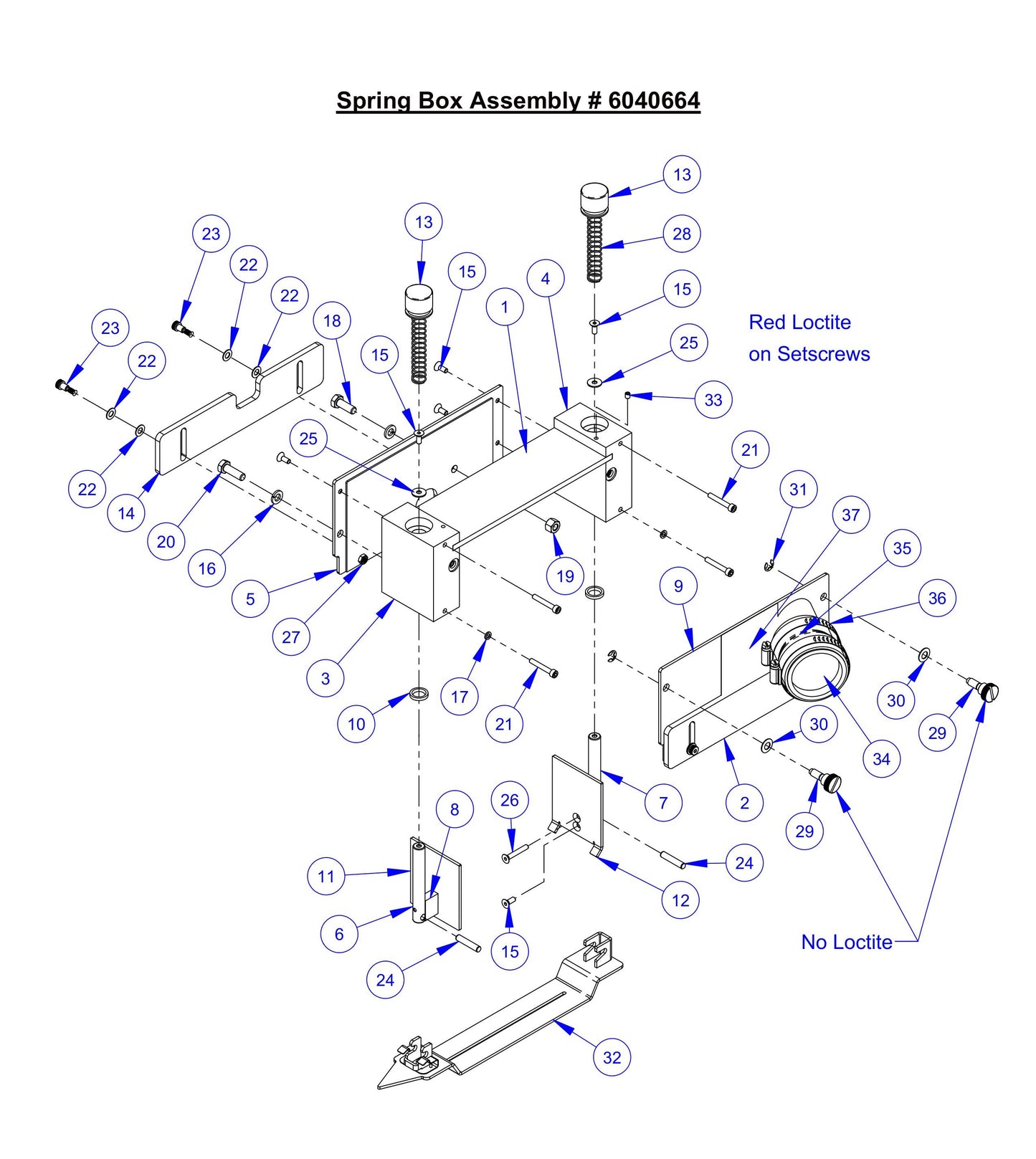

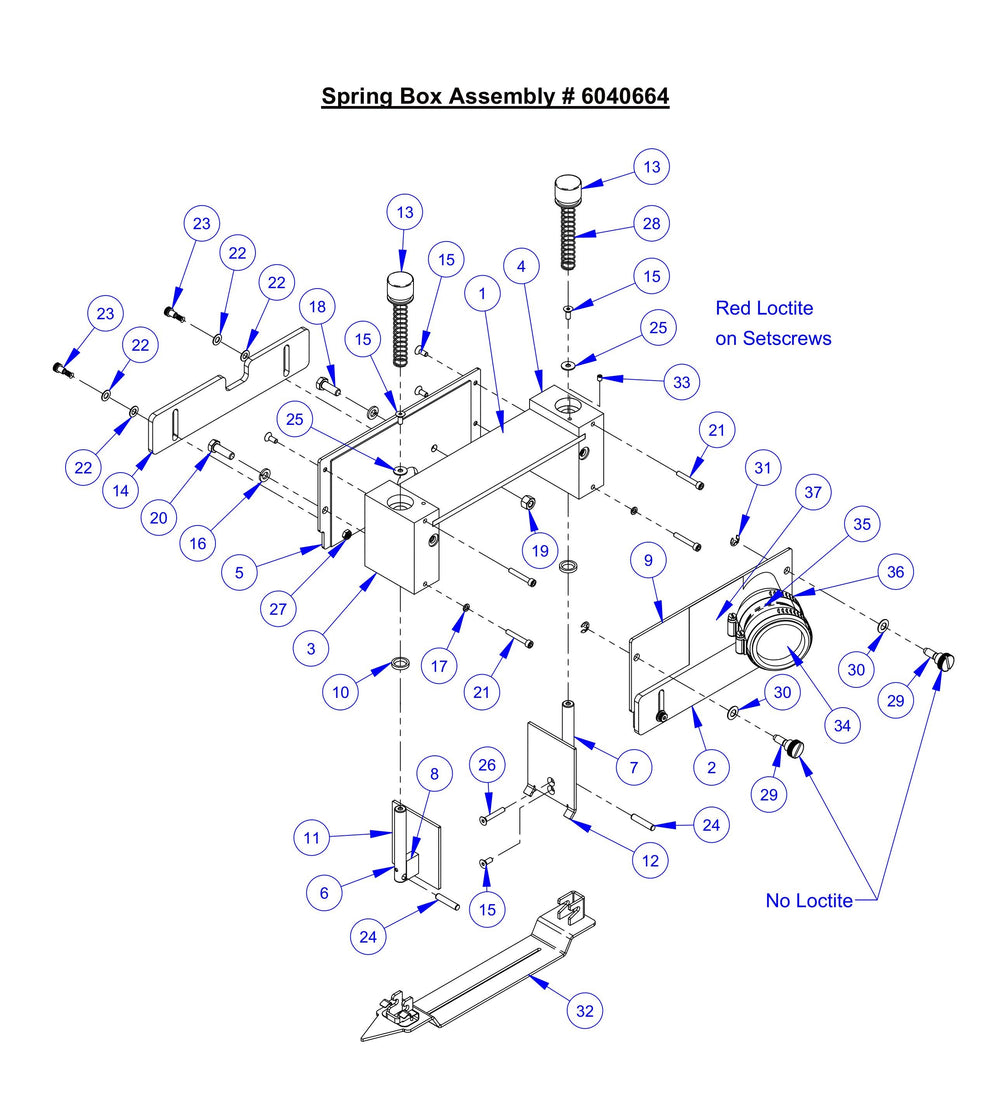

CC150XL-EE Spring Box Assembly Parts

CC150XL-EE Spring Box Assembly Parts

  • CC150XL-EE Spring Box Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6040655 Cover, Top Spring Box for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$19.77
2
6040662 Cover, Outer Lexan for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$41.82
3
6040654 Spring Block, Rear 6" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$144.54
4
6040653 Spring Block, Front 6" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$144.54
5
6040652 Cover, Inner Spring Box for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$74.46
7
6040657 Shaft, Spring Block Front for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$121.20
8
6040659 Block, Dust Diverter for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$70.08
9
6040774 Vac Attachment Covor Weldment fits CC125XL-EE by Core Cut Diamond Products
$120.78
10
2504593 Shaft Seal, 1/2" Shaft for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$28.52
11
6040813 Diverter, Rear Dust fits CC150XL by Core Cut Diamond Products
$17.50
12
6040660 Diverter, Front Dust for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$36.32
13
6040656 Spring Block Cap for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$52.07
14
6040663 Cover, Inner Lexan for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$35.87
15
2900456 Cap Screw, Flat Hd., #10-32 x 1/2" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
16
2900031 Lock Washer, 5/16" Split for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
17
2900038 Lock Washer, #10 Split for CC1507E Basement Saw Core Cut by Diamond Product
$2.99
18
2900668 Cap Screw, Hex Hd., 5/16-18 x 7/8" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
19
2900039 Lock Nut, 5/16-18 Nylon for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
20
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
21
2901584 Cap Screw, Soc. Hd., #10-32 x 1-1/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$3.99
22
2901585 Flat Washer, 1/4" Nylon for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$6.99
23
2902008 Shoulder Screw, 1/4" x 5/16 (#10-24) for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$6.99
24
2900577 Dowel Pin, 1/4" Dia x 1-1/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$4.10
25
2900770 Fender Washer, M5 for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
26
2907093 Cap Screw, Flat Hd., #10-32 x 1-1/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
27
2902007 Jam Lock Nut, #10-24 Nylon for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
28
2504643 Spring, Comp. .60 x .045 x 3.50 Long for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$13.03
29
6040385 Captive Thumb Screw, 5/16-18 for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$51.80
30
2901963 Washer, Belleville 5/16" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$6.99
31
2504645 Retaining Ring, 5/16 Ext. for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
32
2505481 Skid Plate Weldment Universal-6/8' Blade- .156 Slot fits CC150XL by Core Cut Diamond Products
$185.13
33
2900059 Set Screw, Soc. Hd., #10-32 x 1/4" for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
34
2505177 Plug, Tapered Round 2-1/4" fits CC150XL by Core Cut Diamond Products
$6.00
35
2506008 Hose Reducers, 2.25"- 2" ID fits CC150XL by Core Cut Diamond Products
$62.07
36
3200096 Hose Clamp #40 for CC6561 Concrete Saw Core Cut by Diamond Products
$11.71
37
1805555 First Cut Decal fits CC190PRO by Core Cut Diamond Products
$10.19
38
2502046 Grease, Fuchs Synthetic for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$104.38
6
Call for Price call for price call for price
View full details
