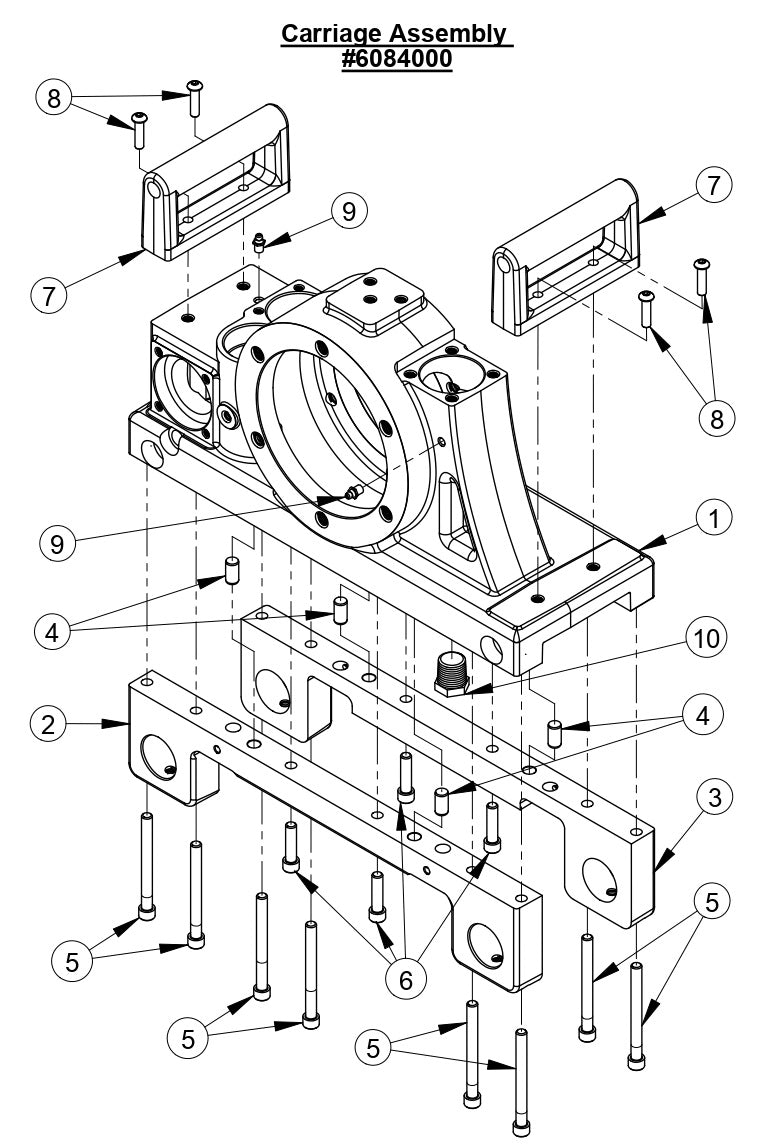

CC1600 Carriage Assembly Parts

CC1600 Carriage Assembly Parts

  • CC1600 Carriage Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6084139 Main Housing Machining for CC1600 WALL SAW Core Cut by Diamond Products
$1,497.87
2
6084140 Front Leg Machining for CC1600 WALL SAW Core Cut by Diamond Products
$286.11
3
6084141 Rear Leg Machining for CC1600 WALL SAW Core Cut by Diamond Products
$250.47
4
2900517 Dowel Pin, 3/8" Dia. x 3/4" for CC1600 WALL SAW Core Cut by Diamond Products
$2.14
5
2900613 Cap Screw, Soc. Hd., 5/16-18 x 3-1/4 for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
6
2900176 Cap Screw, Soc. Hd., 5/16-18 x 1-1/4" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
7
6084132 Lift Handle Machined for CC1600 WALL SAW Core Cut by Diamond Products
Call for Price call for price call for price
8
2901229 Cap Screw, Button Hd., 1/4-20 x 1" for CC1600 WALL SAW Core Cut by Diamond Products
$3.99
9
2900614 Grease Fitting, 1/4-28 Str. Thrd for CC1600 WALL SAW Core Cut by Diamond Products
$3.99
10
3200160 Plug, 1/2-14 NPT for CC1600 WALL SAW Core Cut by Diamond Products
$4.28
View full details
