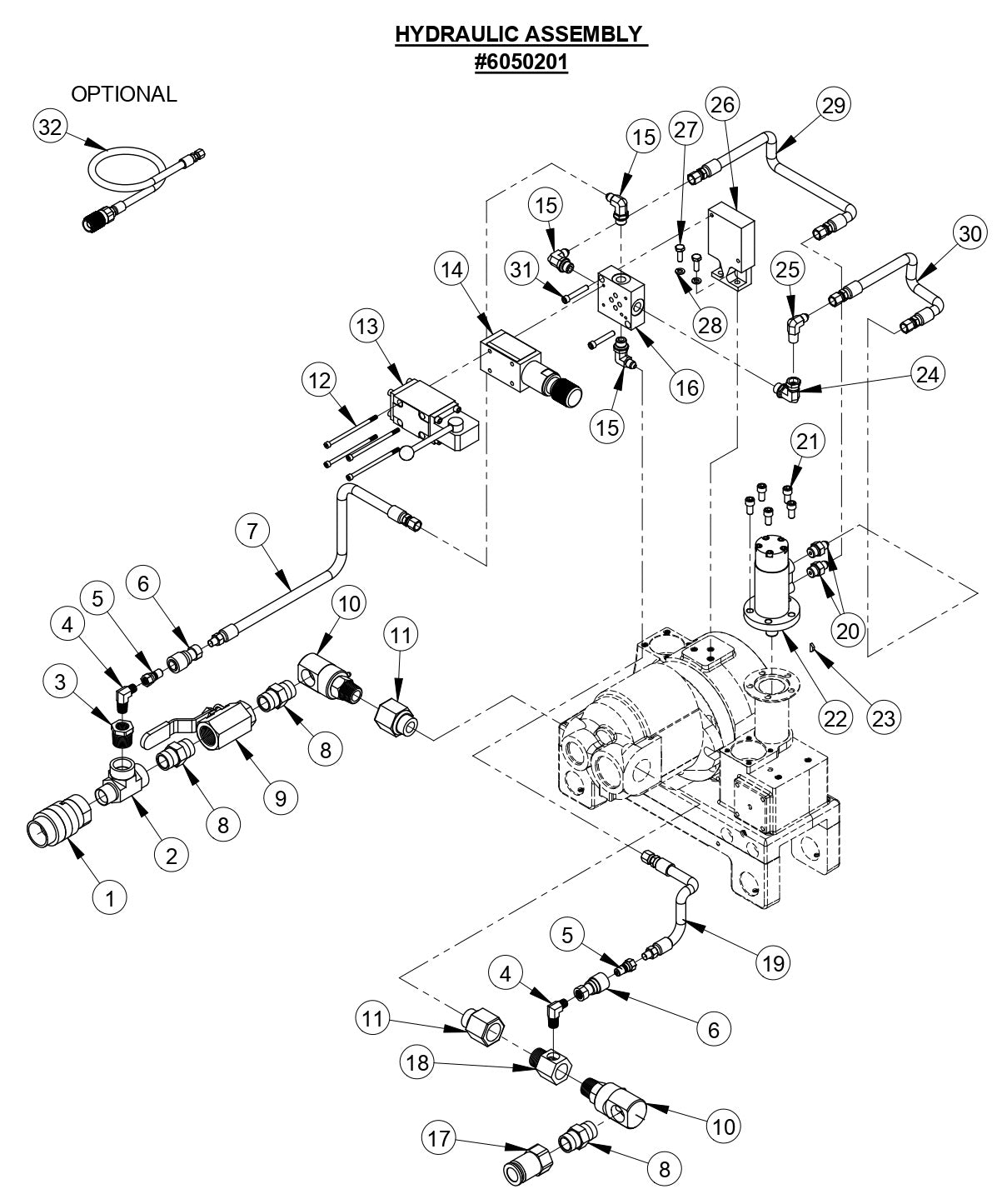

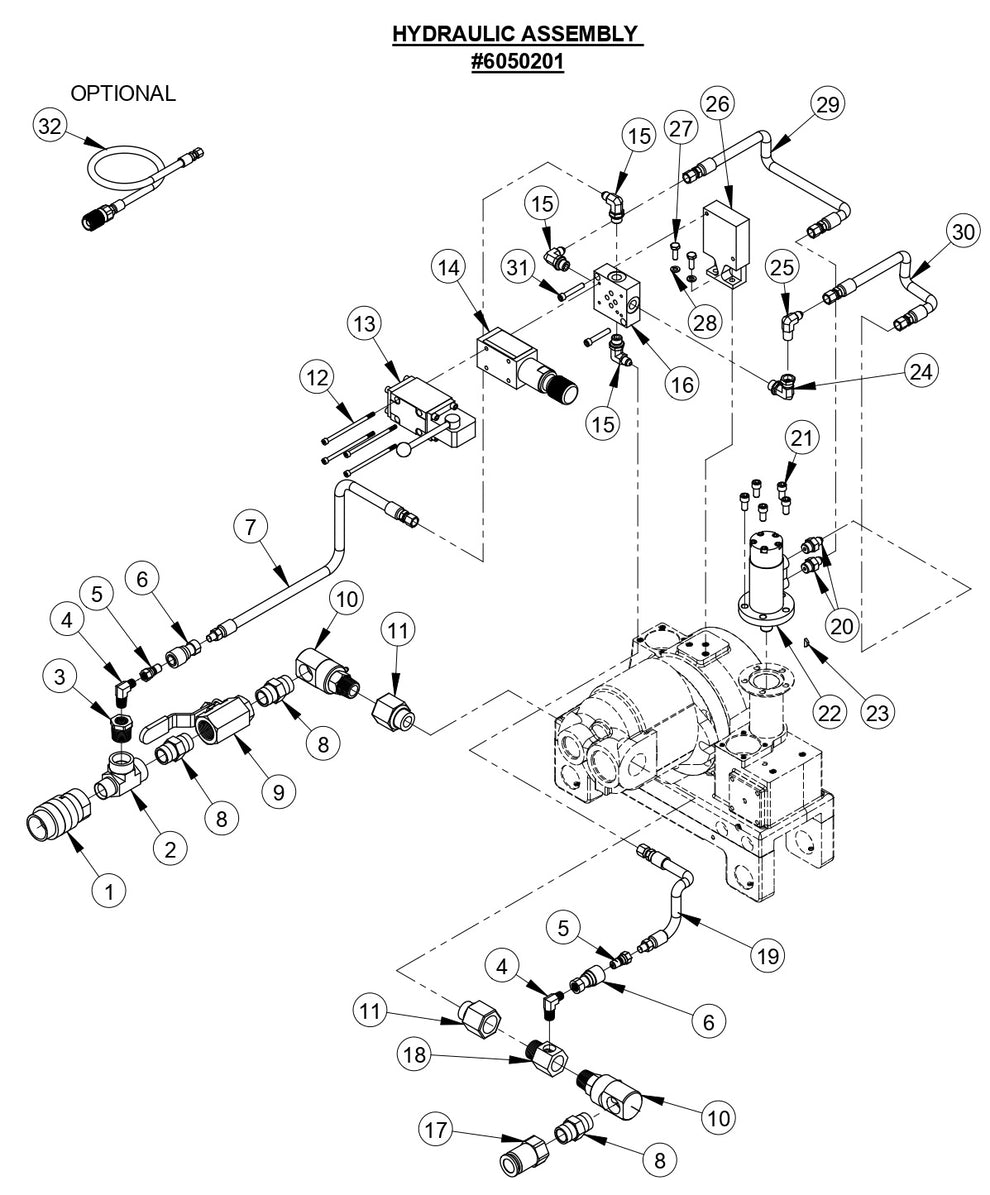

CC1600 Hydraulic Assembly Parts

CC1600 Hydraulic Assembly Parts

  • CC1600 Hydraulic Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
3200100 Coupler, 3/4" Quick Disconnect for CC1600 WALL SAW Core Cut by Diamond Products
$324.72
2
3200310 Tee, 3/4" M. to 3/4" F. Pipe Run for CC1600 WALL SAW Core Cut by Diamond Products
$32.28
3
3200311 Reducer, 3/4" M. to 1/4" F. Pipe for CC1600 WALL SAW Core Cut by Diamond Products
$7.84
4
3200530 Elbow, 1/8" to 1/4" Male Pipe for CC1600 WALL SAW Core Cut by Diamond Products
$10.76
5
3200314 Nipple, 1/8" Quick Disconnect for CC1600 WALL SAW Core Cut by Diamond Products
$37.66
6
3200315 Coupler, 1/8" Quick Disconnect for CC1600 WALL SAW Core Cut by Diamond Products
$85.01
7
6084020 Hyd. Hose Assy, 1/4" X 21" Long for CC1600 WALL SAW Core Cut by Diamond Products
$87.81
8
3200137 Hex Nipple, 3/4" NPT for CC1600 WALL SAW Core Cut by Diamond Products
$9.76
9
3200005 Ball Valve, 3/4" Pipe for CC1600 WALL SAW Core Cut by Diamond Products
$155.43
10
3200133 Swivel, 3/4" M. to 3/4" F. Pipe for CC1600 WALL SAW Core Cut by Diamond Products
$214.83
11
3200138 Adapter, 1" O-Ring to 3/4" F. Pipe for CC1600 WALL SAW Core Cut by Diamond Products
$22.60
12
2900627 Cap Screw, Soc. Hd., #10-24 x 3-5/8" for CC1600 WALL SAW Core Cut by Diamond Products
$3.43
13
3200547 Directional Valve for CC1600 WALL SAW Core Cut by Diamond Products
$897.93
14
3200506 Valve, Pressure Control for CC1600 WALL SAW Core Cut by Diamond Products
$975.60
15
3200551 Elbow, 3/8" O-Ring to 1/4" M. JIC for CC1600 WALL SAW Core Cut by Diamond Products
$7.74
16
3200143 Subplate for CC1600 WALL SAW Core Cut by Diamond Products
$141.57
17
3200101 Nipple, 3/4" Quick Disconnect for CC1600 WALL SAW Core Cut by Diamond Products
$129.69
18
6050041 Adapter, 3/4" M. to 3/4" F. Pipe, Drilled for CC1600 WALL SAW Core Cut by Diamond Products
$40.67
19
6084021 Hyd. Hose Ass'y, 1/4" x 5" Long for CC1600 WALL SAW Core Cut by Diamond Products
$79.10
20
3200375 Adapter, 3/8" O-Ring to 1/4" M. JIC for CC1600 WALL SAW Core Cut by Diamond Products
$4.04
21
2900898 Cap Screw, Soc. Hd., 5/16-18 x 5/8" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
22
2600346 Hydraulic Motor, 1.88 CIR for CC1600 WALL SAW Core Cut by Diamond Products
$1,710.72
23
2700233 Woodruff Key #404, 1/8" x 1/2" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
24
3200115 Elbow, 3/8" O-Ring to 1/4" F. Pipe for CC1600 WALL SAW Core Cut by Diamond Products
$13.99
25
3200057 Elbow, 1/4" M. Pipe to 1/4" M. JIC for CC1600 WALL SAW Core Cut by Diamond Products
$5.60
26
6084060 Valve Assembly Bracket for CC1600 WALL SAW Core Cut by Diamond Products
$179.19
27
2900144 Cap Screw, Hex Hd., 1/4-20 x 3/4" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
28
2900024 Lock Washer, 1/4" Split for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
29
6084062 Hyd. Hose Assy, 1/4" x 9" Long for CC1600 WALL SAW Core Cut by Diamond Products
$87.14
30
6084064 Hyd. Hose Assy, 1/4" x 5-1/2" Long for CC1600 WALL SAW Core Cut by Diamond Products
$85.09
31
2900399 Cap Srew, Soc Hd., 1/4-20 x 1-1/2" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
32
6084122 Power Travel Adapter Hose for CC1600 WALL SAW Core Cut by Diamond Products
$339.57
View full details
