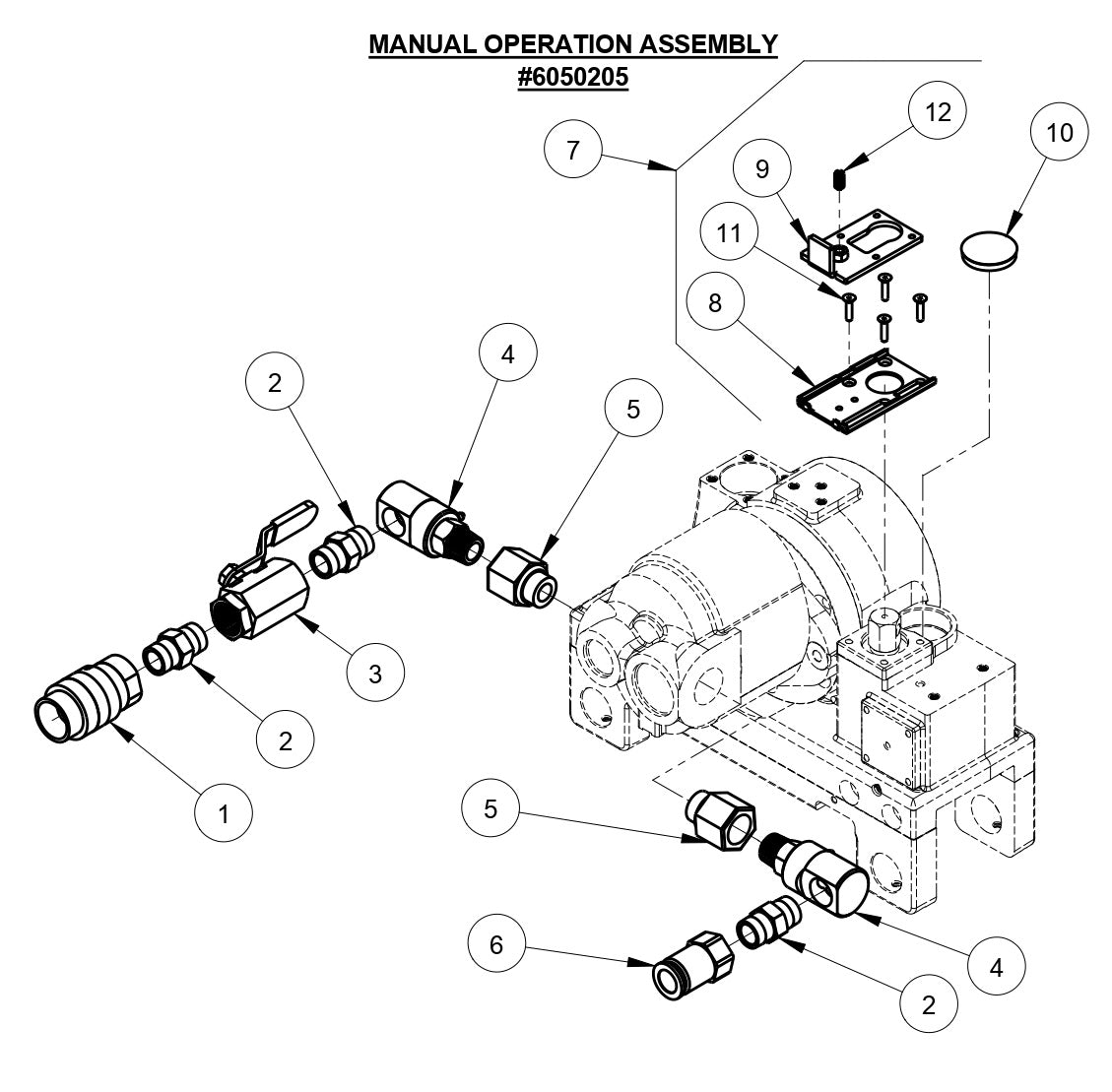

CC1600 Manual Operation Assembly Parts

CC1600 Manual Operation Assembly Parts

  • CC1600 Manual Opretion Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
3200100 Coupler, 3/4" Quick Disconnect for CC1600 WALL SAW Core Cut by Diamond Products
$324.72
2
3200137 Hex Nipple, 3/4" NPT for CC1600 WALL SAW Core Cut by Diamond Products
$9.76
3
3200005 Ball Valve, 3/4" Pipe for CC1600 WALL SAW Core Cut by Diamond Products
$155.43
4
3200133 Swivel, 3/4" M. to 3/4" F. Pipe for CC1600 WALL SAW Core Cut by Diamond Products
$214.83
5
3200138 Adapter, 1" O-Ring to 3/4" F. Pipe for CC1600 WALL SAW Core Cut by Diamond Products
$22.60
6
3200101 Nipple, 3/4" Quick Disconnect for CC1600 WALL SAW Core Cut by Diamond Products
$129.69
7
Diamond Products LOCK PLATE ASSY CC1600 6084120
$441.25
8
Diamond Products BOTTOM LOCK PLATE CC1600 6084117
$343.53
9
Diamond Products SLIDING LOCK PLATE ASSY CC1600 6084118
$185.13
10
Diamond Products PLUG, FEED MOTOR CC1600 6084116
$3.99
11
Diamond Products #10-24X7/8" FLAT HD CAPSC 2900646
$2.99
12
Diamond Products BALL-NOSE PLUNGER 2501686
$28.07
View full details
