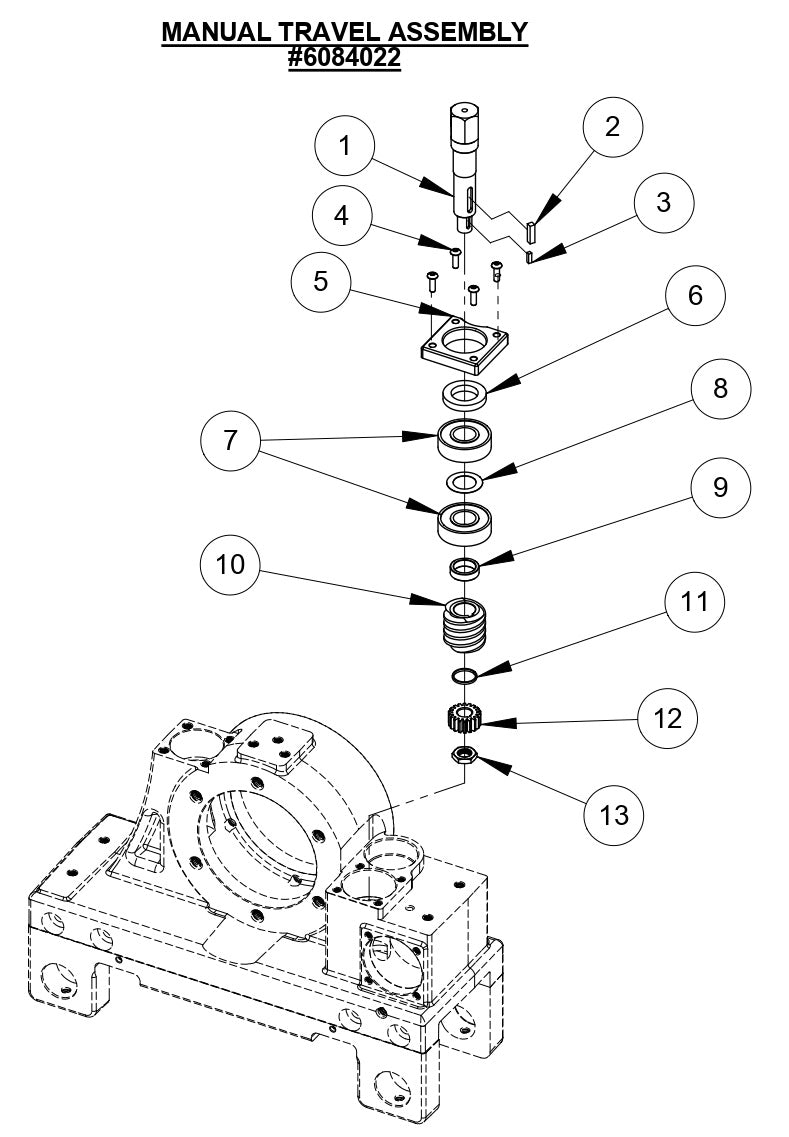

CC1600 Manual Travel Assembly Parts

CC1600 Manual Travel Assembly Parts

  • CC1600 Manual Travel Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6084023 Manual Travel Worm Shaft for CC1600 WALL SAW Core Cut by Diamond Products
$384.12
2
6048018 Key, 3/16" Sq. x 3/4" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
3
2900901 Key, 1/8" Sq. x 1/2" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
4
2901230 Cap Screw, Button Hd., #10-24 x 5/8" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
5
6084024 Manual Travel Bearing Retainer Plate for CC1600 WALL SAW Core Cut by Diamond Products
$258.39
6
2501609 Worm Shaft Seal for CC1600 WALL SAW Core Cut by Diamond Products
$18.67
7
2501601 Bearing, Worm Shaft for CC1600 WALL SAW Core Cut by Diamond Products
$11.10
8
2501605 Pre-Load Bearing Shim for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
9
6084025 Worm Spacer for CC1600 WALL SAW Core Cut by Diamond Products
$11.76
10
2501616 Worm Gear for CC1600 WALL SAW Core Cut by Diamond Products
$391.05
11
6084026 Spur Gear Spacer for CC1600 WALL SAW Core Cut by Diamond Products
$25.21
12
6084027 Spur Gear for CC1600 WALL SAW Core Cut by Diamond Products
$124.74
13
2900986 Jam Nut, 1/2-20 x 3/16" for CC1600 WALL SAW Core Cut by Diamond Products
$8.12
