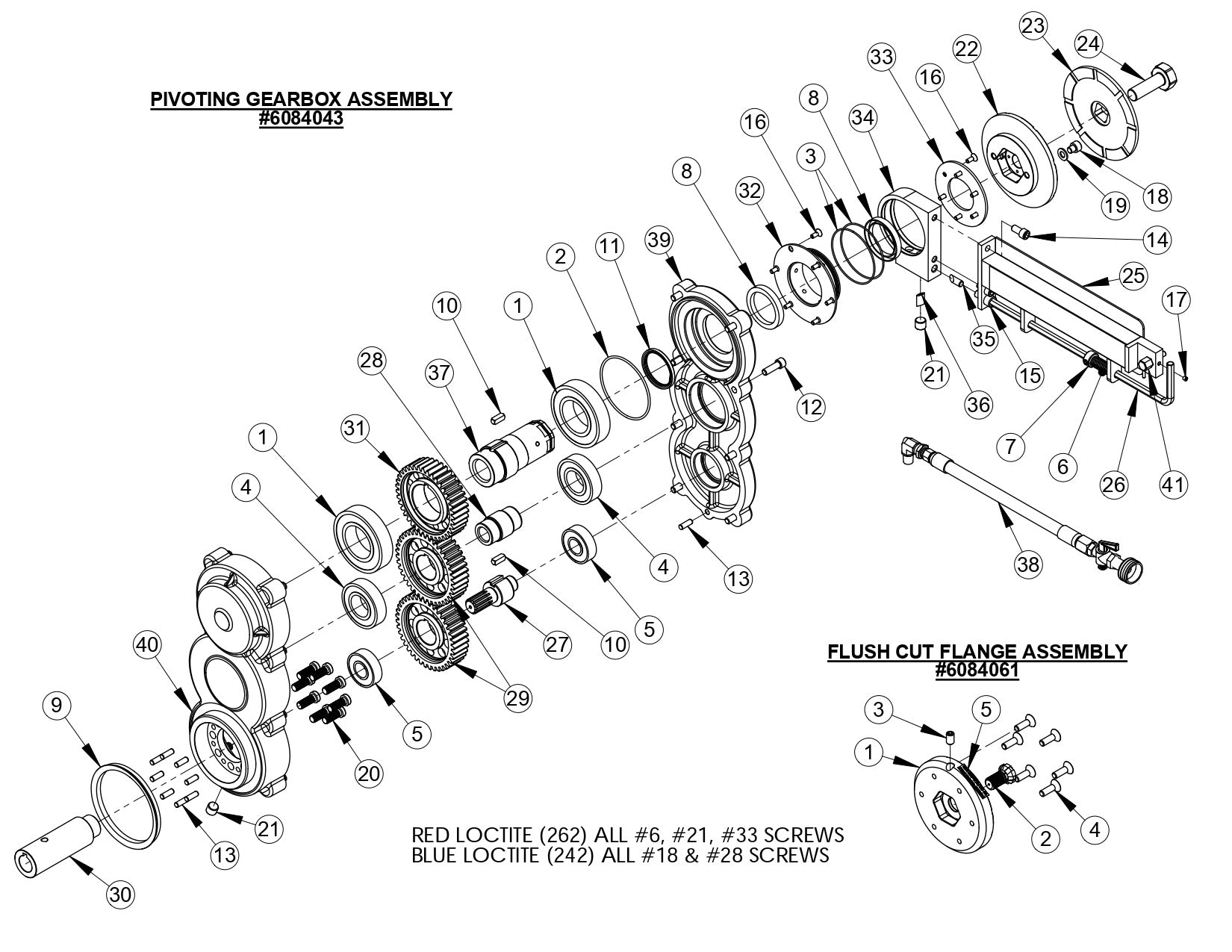

CC1600 Pivoting Gearbox Assembly Parts

CC1600 Pivoting Gearbox Assembly Parts

  • CC1600 Pivoting Gearbox Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2400177 Ball Bearing, 45mm x 85mm x 19mm for CC1600 WALL SAW Core Cut by Diamond Products
$29.34
2
2400628 O-Ring #152 for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
3
2400629 O-Ring, Water Seal Housing for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
4
2500264 Ball Bearing, 30mm x 62mm x 16mm for CC1600 WALL SAW Core Cut by Diamond Products
$10.76
5
2501601 Bearing, Worm Shaft for CC1600 WALL SAW Core Cut by Diamond Products
$11.10
6
2501602 Spring, Locking Wrench for CC1600 WALL SAW Core Cut by Diamond Products
$7.01
7
2501603 Set Collar, 3/8" for CC1600 WALL SAW Core Cut by Diamond Products
$7.60
8
2501606 Water Seal for CC1600 WALL SAW Core Cut by Diamond Products
$29.98
9
2501619 Seal, 100mm V-Ring for CC1600 WALL SAW Core Cut by Diamond Products
$34.86
10
2501621 Key, 1/4" Sq. x 23/32" Long for CC1600 WALL SAW Core Cut by Diamond Products
$4.99
11
2504559 Seal, 1-3/4 x 2-1/8 x 3/16" for CC1600 WALL SAW Core Cut by Diamond Products
$49.50
12
2900103 Cap Screw, Soc. Hd., 5/16-18 x 1" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
13
2900207 Dowel Pin, 1/4" Dia. x 3/4" for CC1600 WALL SAW Core Cut by Diamond Products
$4.99
14
2900898 Cap Screw, Soc. Hd., 5/16-18 x 5/8" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
15
2900976 Cap Screw, Soc. Hd., 3/8-16 x 3/4" for CC1600 WALL SAW Core Cut by Diamond Products
$4.99
16
2900978 Cap Screw, Flat Hd., #10-24 x 1/2" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
17
2900979 Set Screw, Soc. Hd., 10-32 x 3/16 for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
18
2900980 Capscrew, Soc. Hd., M8-1.25 x 8mm for CC1600 WALL SAW Core Cut by Diamond Products
$4.60
19
2900981 Retaining Washer, M8 for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
20
2900983 Cap Screw, Soc. Low Hd., 3/8-16 x 1" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
21
3200552 Plug, 1/4" NPT for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
22
6084017 Blade Flange, Inside for CC1600 WALL SAW Core Cut by Diamond Products
$477.18
23
6084018 Blade Flange, Outside for CC1600 WALL SAW Core Cut by Diamond Products
$277.20
24
6084019 Blade Shaft Bolt for CC1600 WALL SAW Core Cut by Diamond Products
$134.64
25
6084044 BRACKET BLADE GUARD for CC1600 WALL SAW Core Cut by Diamond Products
$441.54
26
6084045 Wrench, Locking for CC1600 WALL SAW Core Cut by Diamond Products
$64.15
27
6084047 Shaft, Input for CC1600 WALL SAW Core Cut by Diamond Products
$418.77
28
6084048 Idler Shaft for CC1600 WALL SAW Core Cut by Diamond Products
$167.31
29
6084049 Drive Gear for CC1600 WALL SAW Core Cut by Diamond Products
$404.40
30
6084050 Coupler, Motor to Gearbox for CC1600 WALL SAW Core Cut by Diamond Products
$423.72
31
6084051 Blade Shaft Gear for CC1600 WALL SAW Core Cut by Diamond Products
$472.23
32
6084054 Housing, Water Seal for CC1600 WALL SAW Core Cut by Diamond Products
$583.11
33
6084055 Cover, Water Seal Housing for CC1600 WALL SAW Core Cut by Diamond Products
$53.51
34
6084056 Support, Blade Guard Mount for CC1600 WALL SAW Core Cut by Diamond Products
$211.86
35
6084057 Cam, Spot Brake for CC1600 WALL SAW Core Cut by Diamond Products
$73.99
36
6084058 Spot Brake for CC1600 WALL SAW Core Cut by Diamond Products
$176.22
37
6084059 Blade Shaft for CC1600 WALL SAW Core Cut by Diamond Products
$736.56
38
6084073 Water Hose Assembly for CC1600 WALL SAW Core Cut by Diamond Products
$140.58
39
6084142 Gearbox Outer Half Machining for CC1600 WALL SAW Core Cut by Diamond Products
$318.78
40
6084143 Gearbox Inner Half Machining for CC1600 WALL SAW Core Cut by Diamond Products
$354.42
41
6087042 Latch for CC1600 WALL SAW Core Cut by Diamond Products
$63.76
