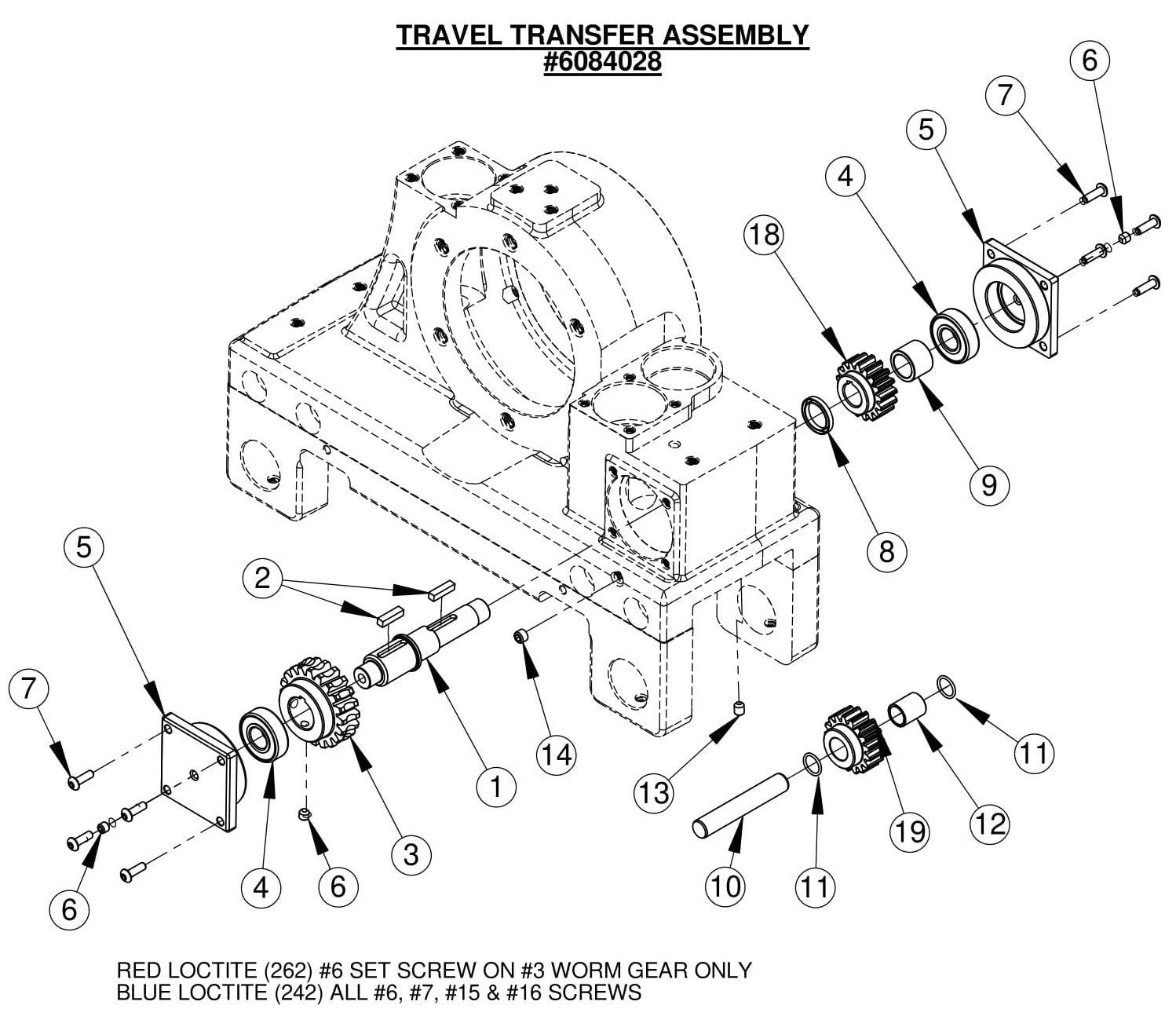

CC1600 Travel Transfer Assembly Parts

CC1600 Travel Transfer Assembly Parts

  • CC1600 Travel Transfer Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6084029 Travel Drive Shaft for CC1600 WALL SAW Core Cut by Diamond Products
$343.53
2
6048018 Key, 3/16" Sq. x 3/4" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
3
6084031 Worm Gear, 10P, 14.5PA, 20T for CC1600 WALL SAW Core Cut by Diamond Products
$594.00
4
2501582 Ball Bearing, 15mm x 35mm x 11mm for CC1600 WALL SAW Core Cut by Diamond Products
$11.35
5
6084030 Bearing Retainer Cap for CC1600 WALL SAW Core Cut by Diamond Products
$143.55
6
2900056 Socket Head Set Screw 1/4-20 x 1/4" for CC1600 WALL SAW Core Cut by Diamond Products
$2.99
7
2901230 Cap Screw, Button Hd., #10-24 x 5/8" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
8
2501608 Seal for CC1600 WALL SAW Core Cut by Diamond Products
$15.43
9
6084033 Spacer, Spur Gear .668" OAL for CC1600 WALL SAW Core Cut by Diamond Products
$48.42
10
6084034 Shaft, Rack Pinion Gear for CC1600 WALL SAW Core Cut by Diamond Products
$107.00
11
2400630 O-Ring for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
12
2501617 Plain Bearing, 1/2 x 5/8 x 3/4 for CC1600 WALL SAW Core Cut by Diamond Products
$3.88
13
2900619 Set Screw, Soc. Hd., 1/4-20 x 5/16" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
14
2900036 Set Screw, Soc. Hd., 5/16-18 x 1/4" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
15
6084098 Spur Gear Travel Drive for CC1600 WALL SAW Core Cut by Diamond Products
$69.95
16
6084099 Pinion Gear Rack for CC1600 WALL SAW Core Cut by Diamond Products
$89.32
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
