CC1800XL/CC1823BVXLP Battery Assembly Parts

CC1800XL/CC1823BVXLP Battery Assembly Parts

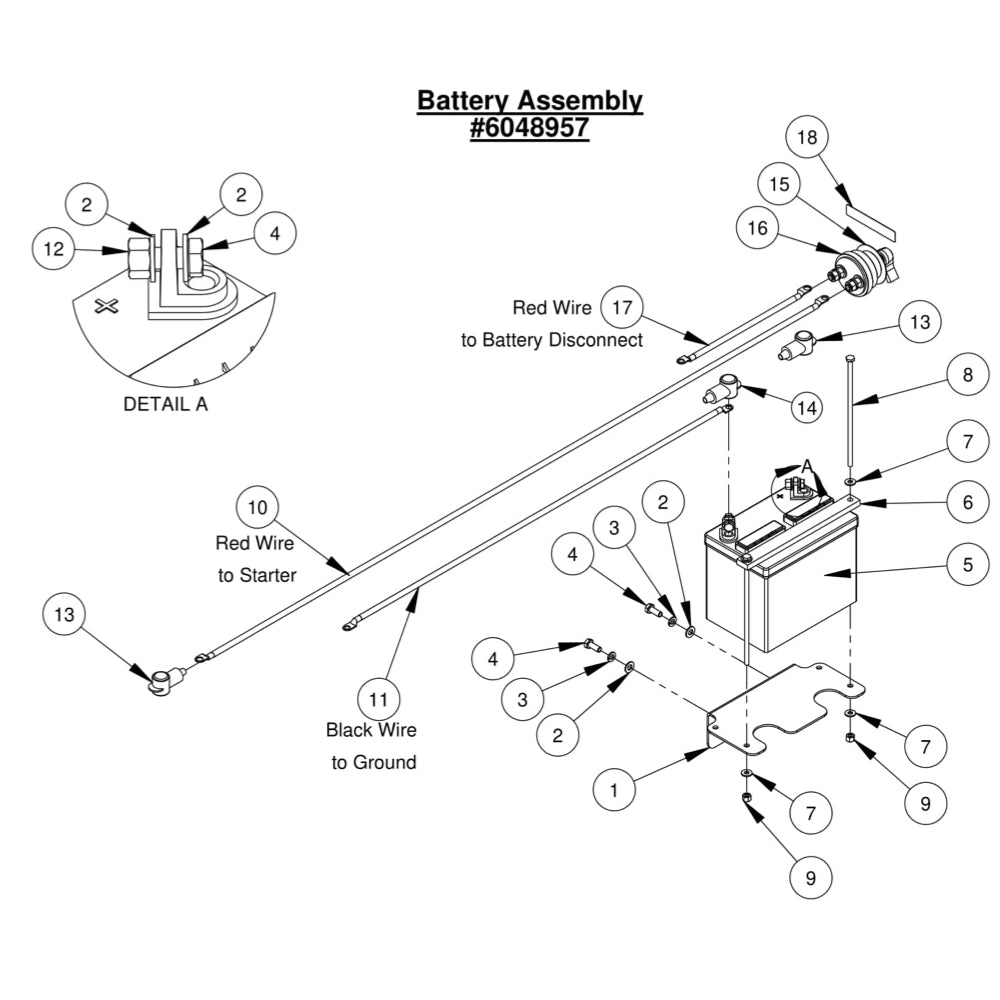

  • CC1800XL Battery Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6048327 Bracket for CC190PRO Concrete Saw Core Cut by Diamond Products
$54.77
2
5/16" Flat Washer Sae (11/16"OD) 2900022 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$2.99
3
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900329 Cap Screw, Hex Hd., M8-1.25 x 20mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$3.99
5
2500584 Battery, 12 Volt Group Size U1 for CC190PRO Concrete Saw Core Cut by Diamond Products
$165.60
6
4646122 BatterySupport for CC190PRO Concrete Saw Core Cut by Diamond Products
$30.43
7
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2901405 Cap Screw, Hex Hd., 1/4-20 x 7-1/2" for CC190PRO Concrete Saw Core Cut by Diamond Products
$4.99
9
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
Diamond Products BATTERY CABLE 51.5" RED 6048091
$70.44
11
6048092 Battery Cable Assy., Black for CC190PRO Concrete Saw Core Cut by Diamond Products
$49.53
12
2900303 Lock Nut M8-1.25 Nylon Insert for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2800197 Battery Boot, Small (Red) for CC190PRO Concrete Saw Core Cut by Diamond Products
$6.17
14
2800198 Battery Boot, Small (Black) for CC190PRO Concrete Saw Core Cut by Diamond Products
$7.16
15
2800566 Face Plate, Battery Disconnect for CC190PRO Concrete Saw Core Cut by Diamond Products
$8.59
16
2800565 Battery Disconnect Switch for CC190PRO Concrete Saw Core Cut by Diamond Products
$99.08
17
Diamond Products BATTERY CABLE 9" RED 2800570
$44.12
18
1800846 Label, Battery Disconnect for CC190PRO Concrete Saw Core Cut by Diamond Products
$13.99
