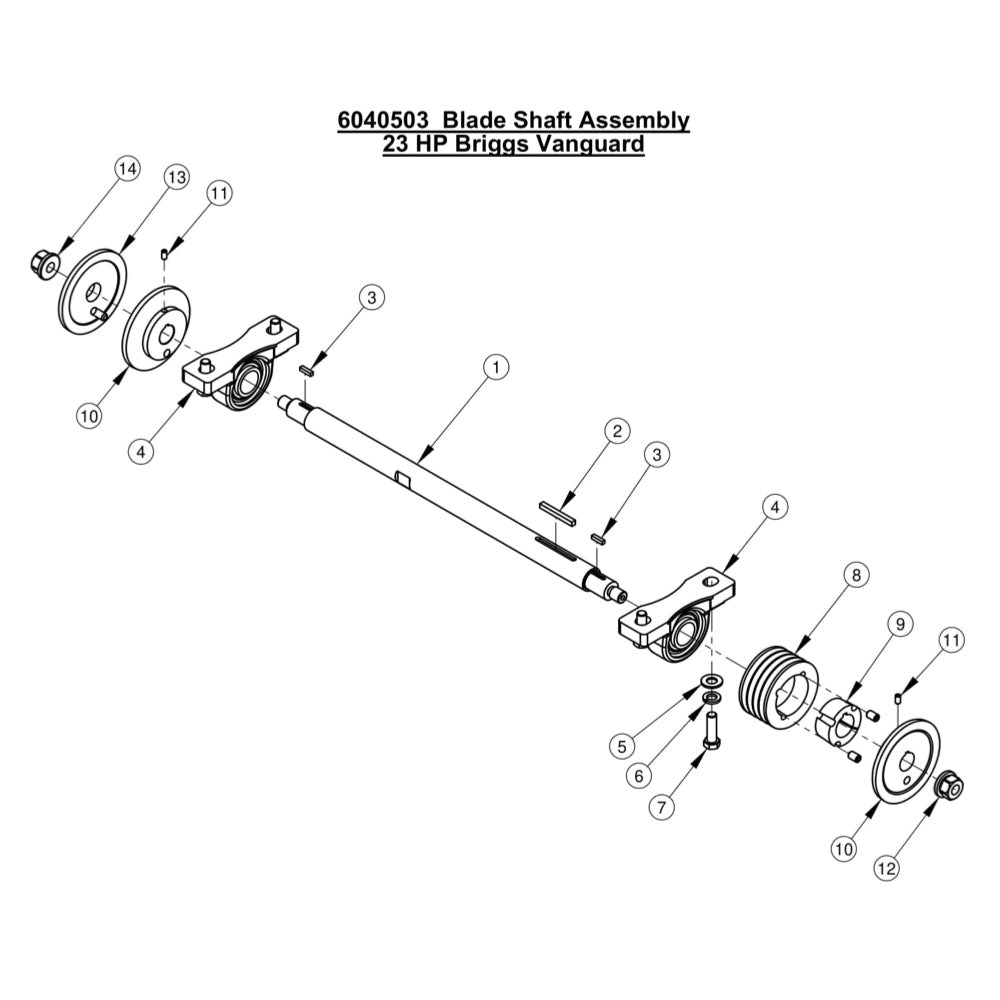

CC1800XL/CC1823BVXLP Blade Shaft Assembly 23 HP Briggs Vanguard

CC1800XL/CC1823BVXLP Blade Shaft Assembly 23 HP Briggs Vanguard

  • CC1800XL Blade Shaft Assembly 23 HP Briggs Vanguard
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6048865 Blade Shaft for CC1507E Basement Saw Core Cut by Diamond Product
$102.65
2
6048134 Key, 1/4" Sq. x 2-1/4" for CC1200 Concrete Saw Core Cut by Diamond Products
$3.99
3
6048018 Key, 3/16" Sq. x 3/4" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
4
2500365 Bearing 1 1/4" Pillow Block for Core Cut CC1800XL Blade Shaft Assembly by Diamond Products
$75.50
5
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
6
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900331 Cap Screw, Hex Hd., M12-1.75 x 40mm for CC6561 Concrete Saw Core Cut by Diamond Products
$4.99
8
2500621 Sheave 3V-3.65-4 Groove, Taper Type 1610 for CC2500 Hydraulic Saw by Core Cut Diamond Products
$146.50
9
2500337 Taper Bushing, 1-1/4" w/ Set Screws for CC1113-XL Concrete Saw Core Cut by Diamond Products
$57.03
10
6048008 Inner Flange 4-1/2" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$73.49
11
2900076 Set Screw, Soc. Hd., 1/4-20 x 1/2" for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
12
2900065 Flange Nut, 5/8-11 R.H. for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$17.79
13
6048009 Outer Flange, 4-1/2" w/ Pin for CC1113-XL Concrete Saw Core Cut by Diamond Products
$60.32
14
2900066 Flange Nut, 5/8-11 L.H. for CC1113-XL Concrete Saw Core Cut by Diamond Products
$47.30
