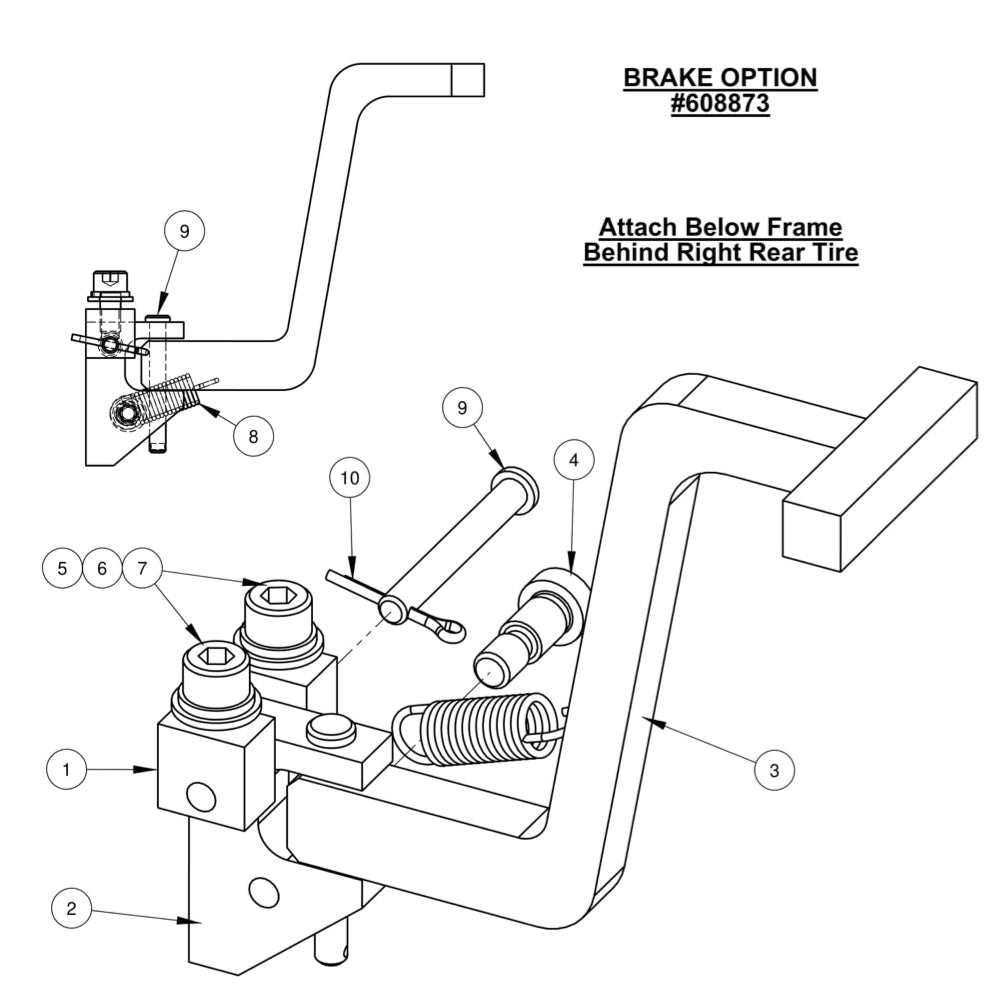

CC1800XL/CC1823BVXLP Brake Option Assembly Parts

CC1800XL/CC1823BVXLP Brake Option Assembly Parts

  • CC1800XL Brake Option
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6048868 Clevis Plate for CC190PRO Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
2
6048867 Plate, Brake Pivot for CC190PRO Concrete Saw Core Cut by Diamond Products
$80.31
3
6048869 Brake Pedel Weldment for CC190PRO Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
4
2900672 Shoulder Screw, 3/8" x 1/2" (5/16-18) for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
5
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900267 Cap Screw, Soc. Hd., M8-1.25 x 16mm for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$2.99
8
2500068 Spring, .063 x .50 x 1.75 for CC1000 Concrete Saw Core Cut by Diamond Products
$22.60
9
2901405 Cap Screw, Hex Hd., 1/4-20 x 7-1/2" for CC190PRO Concrete Saw Core Cut by Diamond Products
$4.99
10
2900034 Cotter Pin, 3/32" x 3/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
