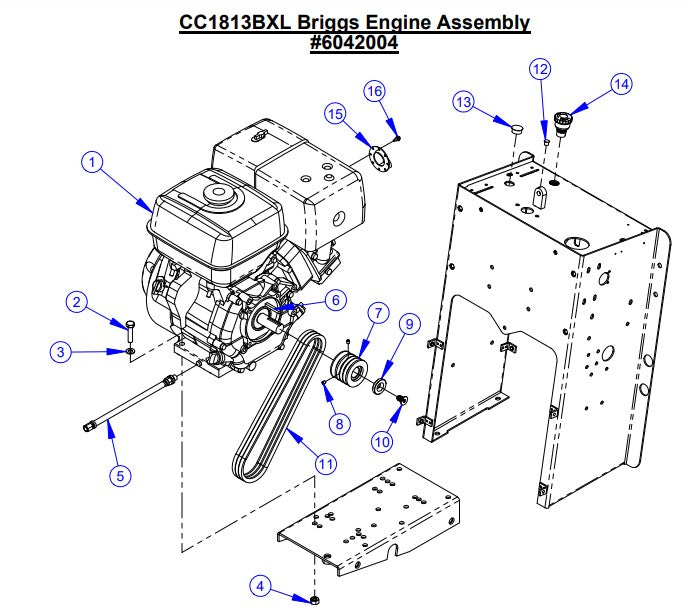

CC1813BXL Briggs Engine Assembly

CC1813BXL Briggs Engine Assembly

  • CC1813BXL Briggs Engine Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
2900317 Hex Cap Screw M10 1.5 x 45mm 2900317 for CC1800 XL and CC2500 Saw by Core Cut Diamond Products
$4.99
3
2901356 Flat Washer M10 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900304 Lock Nut, M10-1.5 Nylon Insert for Core Cut CC1800XL Concrete Walk Behind Saw Parts by Diamond Products
$2.99
5
Diamond Products OIL DRAIN HOSE ASSY 9" FOR 13HP HONDA ON CC1800 AND CC800 8HP, 9HP AND 11HP ENGINES 6048042
$54.41
6
2400299 Key 1/4 X 1 3/4" for CC1800XL Core Cut Saw by Diamond Products
$9.22
7
Diamond Products SHEAVE 2.65 X 1.000 BORE 3V-3 GROOVE / 4L-1 GROOVE 6044013
$192.06
8
2900619 Set Screw, Soc. Hd., 1/4-20 x 5/16" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
9
6044009 Countersunk Washer fits CC1800XL by Core Cut Diamond Products
$17.20
10
2902148 Cap Screw, Flat Hd., 7/16-20 X 3/4" fits CC1823BVXLP by Core Cut Diamond Products
$11.41
11
2500035 V-Belt, 3VX335 for 9 HP, 11 HP, and 13 HP for CC1100 Concrete Saw Core Cut by Diamond Products
$40.89
12
2500462 Plug, 3/8" Hole for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
13
2500549 Plug, 7/8" Hole for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
14
E-Stop Switch 2801367 for CC2500 Saw by Core Cut Diamond Products
$89.50
15
Diamond Products DEFLECTOR FOR BRIGGS 420CC ENGINE 2703419
$24.95
16
Diamond Products SCREW,FOR DEFLECTOR FOR 420CC BRIGGS ENGINE 2703420
$11.31
17
Diamond Products CC1800 WIRE HARNESS 6048899
$47.34
1
Call for Price call for price call for price
