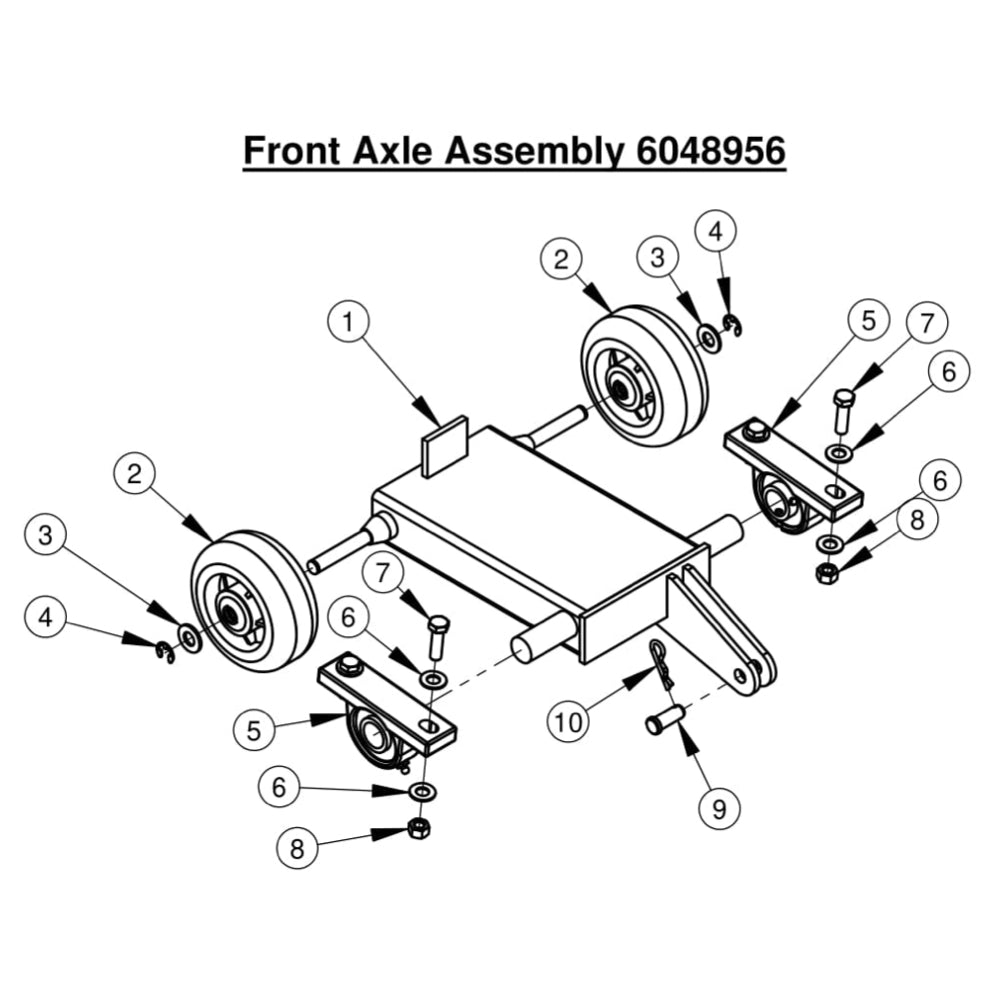

CC1800XL/CC1823BVXLP Front Axle Assembly Parts

CC1800XL/CC1823BVXLP Front Axle Assembly Parts

  • CC1800XL Front Axle Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products AXLE WELDMENT CC1800XL 6048635
$428.67
2
2502194 Wheel for Core Cut CC1800 XL Concrete Walk Behind Saw by Diamond Products
$68.87
7
2900315 Cap Screw Hex Hd., M10-1.5 x 35 for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
8
2900304 Lock Nut, M10-1.5 Nylon Insert for Core Cut CC1800XL Concrete Walk Behind Saw Parts by Diamond Products
$2.99
9
2900266 Clevis Pin 1/2" X 1-1/4", 1" Grip Length for Core Cut CC1800 XL Saw by Diamond Products
$6.99
10
Hairpin Cotter, 1/8" x 1/2" to 3/4" 2900276 for CC2500 Saw by Core Cut Diamond Products
$2.99
3
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
4
2503700 Retaining Ring 1/2" Extend E type fits CC1800XL by Core Cut Diamond Products
$6.00
5
2500013 Bearing, 1' Pillow Block fits CC1800XL by Core Cut Diamond Products
$94.03
6
2900956 Flat Washer, 7/16" SAE fits CC1823BVXLP by Core Cut Diamond Products
$2.99
View full details
