CC1800XL/CC1823BVXLP Transmission Assembly Parts

CC1800XL/CC1823BVXLP Transmission Assembly Parts

  • CC1800XL/CC1823BVXLP Transmission Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6048066 Transmission Platform Weldment fits CC1823BVXLP by Core Cut Diamond Products
$196.02
2
2600015 Eaton 6 Transmission for CC190PRO Concrete Saw Core Cut by Diamond Products
$1,834.47
3
2900068 Woodruff Key #404 1/8" W x 1/2" Dia. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
4
Pulley, 6" 2500016 for CC2500 Saw by Core Cut Diamond Products
$48.42
5
2500632 V-BELT 4L-410 for Core Cut CC1800 XL Saw by Diamond Products
$33.36
5
2500635 V-Belt 4L-420 (7.5E, 10E) for Core Cut CC1800XL Walk Behind Concrete Saw by Diamond products
$26.63
5
2500033 V-Belt, 4L-430 for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$31.21
6
2900036 Set Screw, Soc. Hd., 5/16-18 x 1/4" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
7
SProcket, 12 Teeth W/ 1/4 Setscrew 2500017 for CC2500 Saw by Core Cut Diamond Products
$16.79
8
Chain, #35 x 63 Pitch 6048232 for CC2500 Saw by Core Cut Diamond Products
$31.30
9
Diamond Products SHIFT LEVER (CC1800) 6048211
$45.65
10
2900014 3/8" SAE Flat Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
6048106 Transmission Speed Control Assembly fits CC1823BVXLP by Core Cut Diamond Products
$65.03
12.1
2500076 Transmission Speed Control for CC190PRO Concrete Saw Core Cut by Diamond Products
$33.42
12.2
6048212 Pivot Pin for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$31.19
12.3
2900034 Cotter Pin, 3/32" x 3/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
12.4
2900059 Set Screw, Soc. Hd., #10-32 x 1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
12.5
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12.6
2900309 Cap Screw, Hex Hd., M5-0.8 x 20mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
12.7
2900016 Flat washer #10 USS fits CC1800XL by Core Cut Diamond Products
$2.99
12.8
2900301 Lock Nut, M5-0.8 Nylon Insert for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
12.9
2900186 Hex Nut, 1/4-28 for CG-1 MINI-GROOVER Core Cut by Diamond Products
$2.99
13
2900319 Cap Screw, Hex Hd., M10 x 80mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$4.99
14
2900304 Lock Nut, M10-1.5 Nylon Insert fits CC1823BVXLP by Core Cut Diamond Products
$2.99
15
2900330 Cap Screw, Hex Hd., M12 x 1.75 x 30mm for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$3.99
16
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
17
2900327 Lock Nut, M12-1.75 Nylon Insert for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
18
2500070 Spring, Extension, 3/4 DiaX4 fits CC1800XL by Core Cut Diamond Products
$12.91
19
Cap Screw, Hex Hd., M10-1.5 x 30mm 2900223 for CC2500 Saw by Core Cut Diamond Products
$2.99
20
6049075 Linkage fits CC1823BVXLP by Core Cut Diamond Products
$15.52
21
2900333 Cap Screw, Hex Hd., M10 x 25mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
22
6048057 Engagement Lever fits CC1823BVXLP by Core Cut Diamond Products
$37.35
23
2900315 Cap Screw Hex Hd., M10-1.5 x 35 for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
24
2900277 Clevis Pin 1/2" Dia. x 1-1/2" 2900277 for CC2500 Saw by Core Cut Diamond Products
$4.99
25
2900276 Hairpin Cotter for CC1507 E Walk behind Saw by Core Cut Diamond Products
$2.99
26
2400007 Knob, 1/2-20 x 1-3/8" Dia. for CC6540E CONCRETE SAW Core Cut by Diamond Products
$20.16
27
6048235 Wheel Drive fits CC1823BVXLP by Core Cut Diamond Products
$62.18
28
2500011 Flange Mt. Bearing 3/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$41.60
29
2900061 Grease Fitting 1/4-28 x 90 Degree for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.99
30
2900184 Grease Fitting, 1/4" NPT x 45 degree for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
31
2500018 Sprocket, 48 Teeth w/ Setscrews for CC190PRO Concrete Saw Core Cut by Diamond Products
$46.37
32
6048228 Drive Shaft fits CC1823BVXLP by Core Cut Diamond Products
$26.79
33
6010170 Key, 3/16" Sq.X1" fits CC1800XL by Core Cut Diamond Products
$3.99
34
6048085 Idler Arm for CC3500J Concrete Saw Core Cut by Diamond Products
$20.79
35
2900337 Cap Screw, Hex Hd., M10-1.5 x 50mm, Full Thd. fits CC1823BVXLP by Core Cut Diamond Products
$4.99
36
2900321 Lock Washer M10 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
37
2500074 Idler Pulley 3" for CC3500J Concrete Saw Core Cut by Diamond Products
$49.50
38
2900325 Hex Nut M10-1.5 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
39
2900055 Cotter Pin ,1/8” x 1” for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
40
2900317 Cap Screw,Hex Hd., M10-1.5X45mm fits CC1800XL by Core Cut Diamond Products
$4.99
View full details

Frequently asked questions

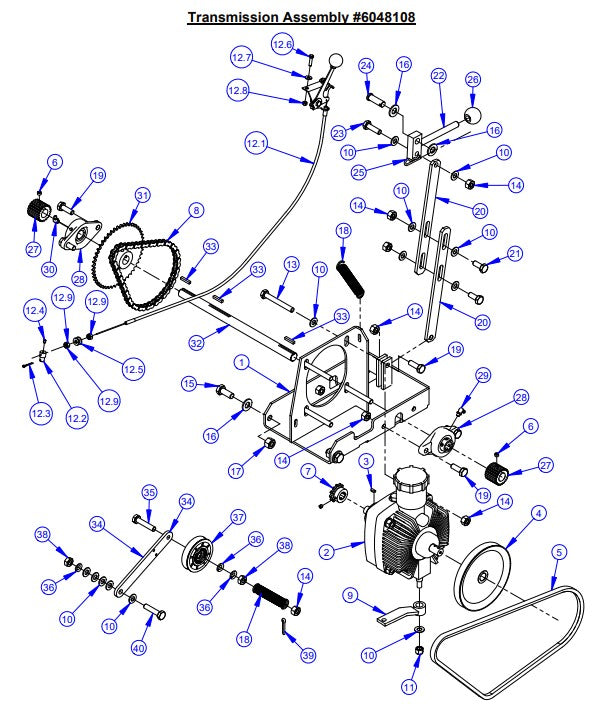

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
