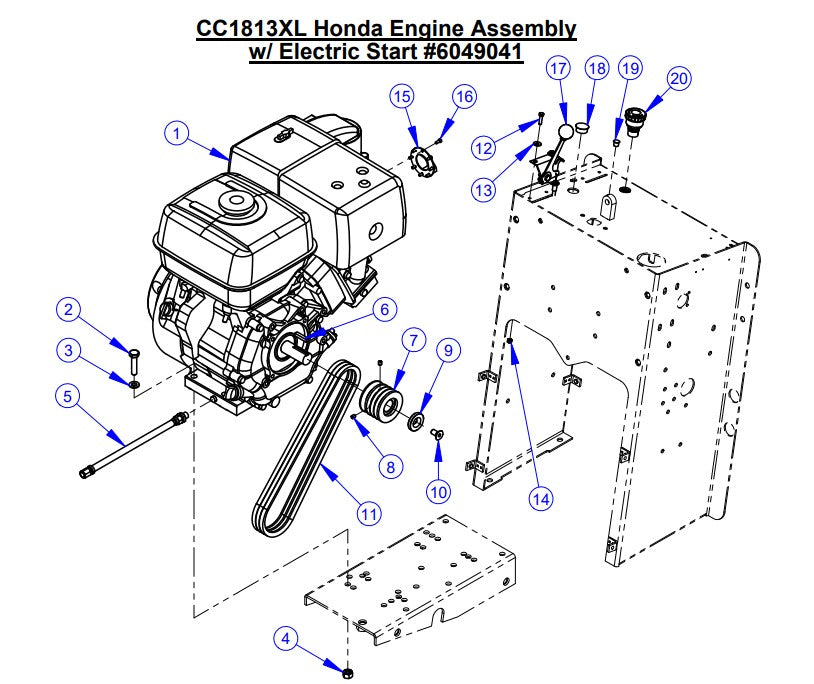

CC1813XL Honda Engine Assembly With Electric Start

CC1813XL Honda Engine Assembly With Electric Start

  • CC1813XL Honda Engine Assembly With Electric Start
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
2900317 Cap Screw,Hex Hd., M10-1.5X45mm fits CC1800XL by Core Cut Diamond Products
$4.99
3
2901356 Flat Washer M10 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900304 Lock Nut, M10-1.5 Nylon Insert fits CC1823BVXLP by Core Cut Diamond Products
$2.99
5
Diamond Products OIL DRAIN HOSE ASSY 9" FOR 13HP HONDA ON CC1800 AND CC800 8HP, 9HP AND 11HP ENGINES 6048042
$54.41
6
6010169 Key, 1/4" Sq. x 1-1/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
7
Diamond Products SHEAVE 2.65 X 1.000 BORE 3V-3 GROOVE / 4L-1 GROOVE 6044013
$192.06
8
Diamond Products 1/4-20X5/16" SOC SETSCREW 2900619
$2.99
9
6044009 Countersunk Washer fits CC1800XL by Core Cut Diamond Products
$17.20
11
2500035 V-Belt, 3VX335 for 9 HP, 11 HP, and 13 HP for CC1100 Concrete Saw Core Cut by Diamond Products
$40.89
12
2900309 Cap Screw, Hex Hd., M5-0.8 x 20mm for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
13
2900926 Washer, M5 for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900301 Lock Nut, M5-0.8 Nylon Insert for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
15
2700554 Muffler Deflector, Honda & Lifan for CC1200XL Concrete Saw Core Cut by Diamond Products
$32.28
16
2900206 Screw, Self Tapping, #8-32 x 3/8" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
17
2500810 Throttle Control, 36" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$39.50
18
2500549 Plug, 7/8" Hole for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
19
2500462 Plug, 3/8" Hole for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
20
2801367 E-Stop Switch for CC5555-3 Concrete Saw Core Cut by Diamond Products
$81.10
21
Diamond Products CC1800 WIRE HARNESS 6048899
$47.34
1
Call for Price call for price call for price
10
Call for Price call for price call for price
