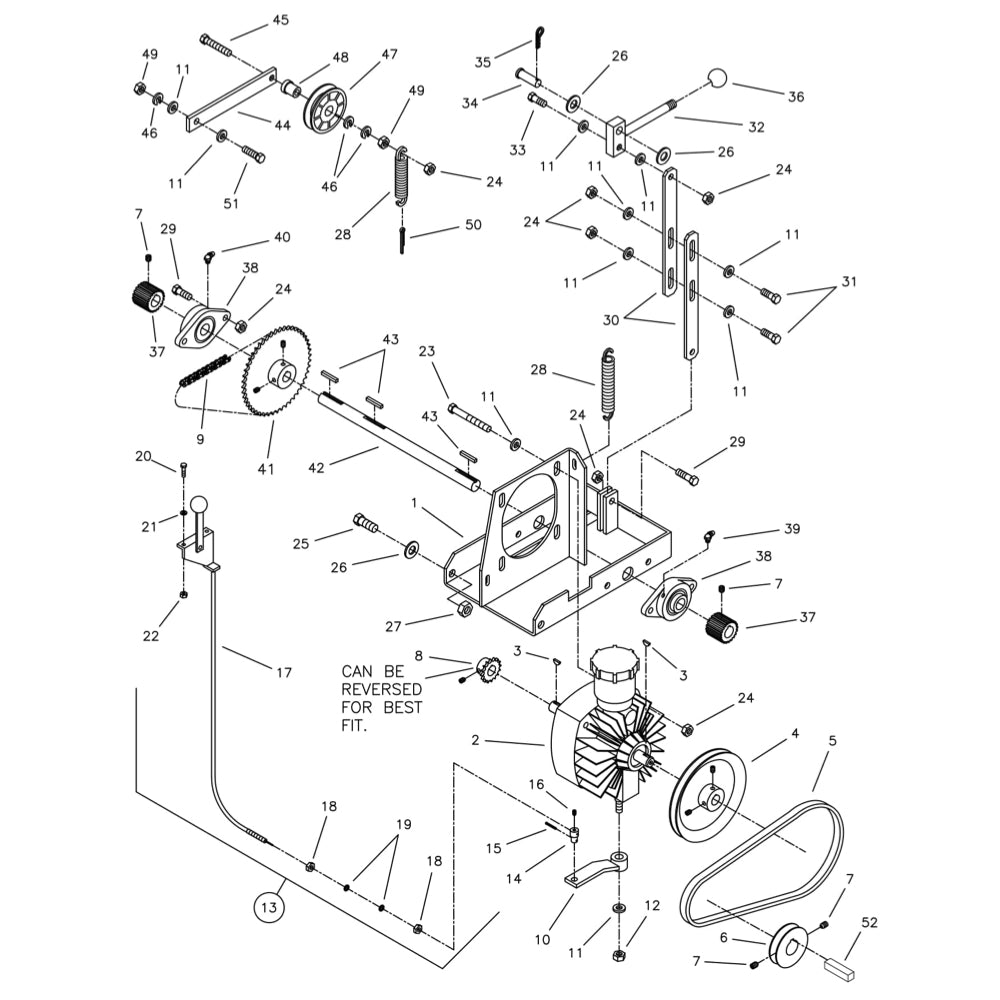

CC1800XLElectric/Hydraulic Transmission Assembly

CC1800XLElectric/Hydraulic Transmission Assembly

  • CC1800XL Transmission Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products TRANSMISSION PLATFORM WELDMENT (CC1800) 6048066
$196.02
2
Eaton 6 Transmission 2600015 for CC2500 Saw by Core Cut Diamond Products
$1,834.47
3
2900068 Woodruff Key #404 1/8" W x 1/2" Dia. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
4
2500016 Pulley, 6" for CC190PRO Concrete Saw Core Cut by Diamond Products
$48.42
5
2500033 V-Belt, 4L-430 for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$31.21
5
2500032 V-Belt 4L-390 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$22.60
5
2500035 V-Belt, 3VX335 for 9 HP, 11 HP, and 13 HP for CC1100 Concrete Saw Core Cut by Diamond Products
$40.89
6
Diamond Products PULLEY, ACCESSORY DRIVE 2.70 O.D. X 1" BORE 6048196
$102.75
7
2900036 Set Screw, Soc. Hd., 5/16-18 x 1/4" for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
8
2500017 Sprocket, 12 Teeth for CC190PRO Concrete Saw Core Cut by Diamond Products
$16.79
9
Chain, #35 x 63 Pitch 6048232 for CC2500 Saw by Core Cut Diamond Products
$31.30
10
6048211 Shift Lever for CG-1 MINI-GROOVER Core Cut by Diamond Products
$45.65
11
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
Diamond Products TRANSMISSION SPEED CONTROL ASSEMBLY FOR CC1800 SAW 6048106
$65.03
14
6048212 Pivot Pin for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$31.19
15
2900034 Cotter Pin, 3/32" x 3/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
16
2900059 Set Screw, Soc. Hd., #10-32 x 1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
17
2500076 Transmission Speed Control for CC190PRO Concrete Saw Core Cut by Diamond Products
$40.42
18
2900186 Jam Nut, 1/4-28 for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
19
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
20
2900309 Cap Screw, Hex Hd., M5 x 20mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
21
2900016 Flat Washer #10 USS for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
22
2900301 Lock Nut, M5 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
23
2900319 Cap Screw, Hex Hd., M10 x 80mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$4.99
24
2900304 Lock Nut, M10 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
25
2900330 Cap Screw, Hex Hd., M12-1.75 x 30mm for Core Cut CC1800XL Concrete Walk Behind Saw Parts by Diamond Products
$3.99
26
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
27
2900327 Lock Nut, M12 Nylon for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
29
2900223 Cap Screw, Hex Hd., M10 x 30mm for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
31
2900333 Cap Screw, Hex Hd., M10 x 25mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
32
Engagement Lever 6048057 for CC2500 Saw by Core Cut Diamond Products
$37.35
33
2900315 Cap Screw Hex Hd., M10-1.5 x 35 for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
34
2900277 Clevis Pin 1/2" Dia. x 1-1/2" 2900277 for CC2500 Saw by Core Cut Diamond Products
$4.99
35
Hairpin Cotter, 1/8" x 1/2" to 3/4" 2900276 for CC2500 Saw by Core Cut Diamond Products
$2.99
36
2400007 Knob, 1/2-20 x 1-3/8" Dia. for CC6540E CONCRETE SAW Core Cut by Diamond Products
$20.16
37
Diamond Products WHEEL DRIVE 6048235
$62.18
38
2500011 Flange Block Bearing, 3/4" for CC1100 Concrete Saw Core Cut by Diamond Products
$41.76
39
2900061 Grease Fitting 1/4-28 x 90 Degree for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.99
40
2900184 Grease Fitting, 1/4" NPT x 45 degree for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
41
2500018 Sprocket, 48 Teeth w/ Setscrews for CC190PRO Concrete Saw Core Cut by Diamond Products
$46.37
42
Diamond Products DRIVE SHAFT (CC1800) 6048228
$26.79
43
6010170 Key 3/16" Sq. x 1" for CC6540E Concrete Saw Core Cut by Diamond Products
$3.99
44
6048085 Idler Arm for CC3500J Concrete Saw Core Cut by Diamond Products
$20.79
45
Cap Screw, Hex Hd., M10-1.5 x 50mm, Full Thd. 2900337 for CC2500 Saw by Core Cut Diamond Products
$4.99
46
2900321 Lock Washer M10 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
47
2500074 Idler Pulley 3" for CC3500J Concrete Saw Core Cut by Diamond Products
$49.50
48
2500246 Shoulder Adapter, 3/8" Bore for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$6.73
49
2900325 Hex Nut, M10-1.5 for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
50
2900055 Cotter Pin ,1/8” x 1” for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
28
Spring, Extension, 3/4 Dia x 4 2500070 for CC2500 Saw by Core Cut Diamond Products
$13.50
30
Diamond Products LINKAGE (CC1800) .188"THK 6048065
$55.10
51
2900317 Cap Screw,Hex Hd., M10-1.5X45mm fits CC1800XL by Core Cut Diamond Products
$4.99
