CC190PRO Axle Assembly Parts

CC190PRO Axle Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6040665 Axle Weldment for CC190PRO Concrete Saw Core Cut by Diamond Products
$241.56
2
6040666 Front Axle for CC190PRO Concrete Saw Core Cut by Diamond Products
$93.14
3
6040623 Rear Axle for CC190PRO Concrete Saw Core Cut by Diamond Products
$63.86
4
6040669 Pump Supprt for CC190PRO Concrete Saw Core Cut by Diamond Products
$151.47
5
6040803 Mounting Bracket, Actuator for CC190PRO Concrete Saw Core Cut by Diamond Products
$61.73
6
2503643 Wheel, 10 x 4 x 1" Poly for CC190PRO Concrete Saw Core Cut by Diamond Products
$618.75
7
2503642 Wheel, 5 x 4 x 1" for CC190PRO Concrete Saw Core Cut by Diamond Products
$235.62
8
2500009 Set Collar, 1" ID for CC190PRO Concrete Saw Core Cut by Diamond Products
$15.00
9
2503647 Bearing, Flanged Bronze 1" ID for CC190PRO Concrete Saw Core Cut by Diamond Products
$27.45
10
2504810 Retaining Ring, 1" Ext. Heavy Duty for CC190PRO Concrete Saw Core Cut by Diamond Products
$6.99
11
2900004 Cotter Pin, 1/8" x 1" for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
12
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900006 Lock Washer, 3/8" Split for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900304 Lock Nut, M10-1.5 Nylon Insert for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
15
2900330 Cap Screw, Hex Hd., M12-1.75 x 30mm for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
16
2900333 Cap Screw, Hex Hd., M10-1.5 x 25mm for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
17
2900699 Lock Washer, M12 Split for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
18
2504976 3/8" x 1-3/8" Clevis Pin (1-1/8") for CC190PRO Concrete Saw Core Cut by Diamond Products
$6.99
View full details

Frequently asked questions

How do I use this diagram?

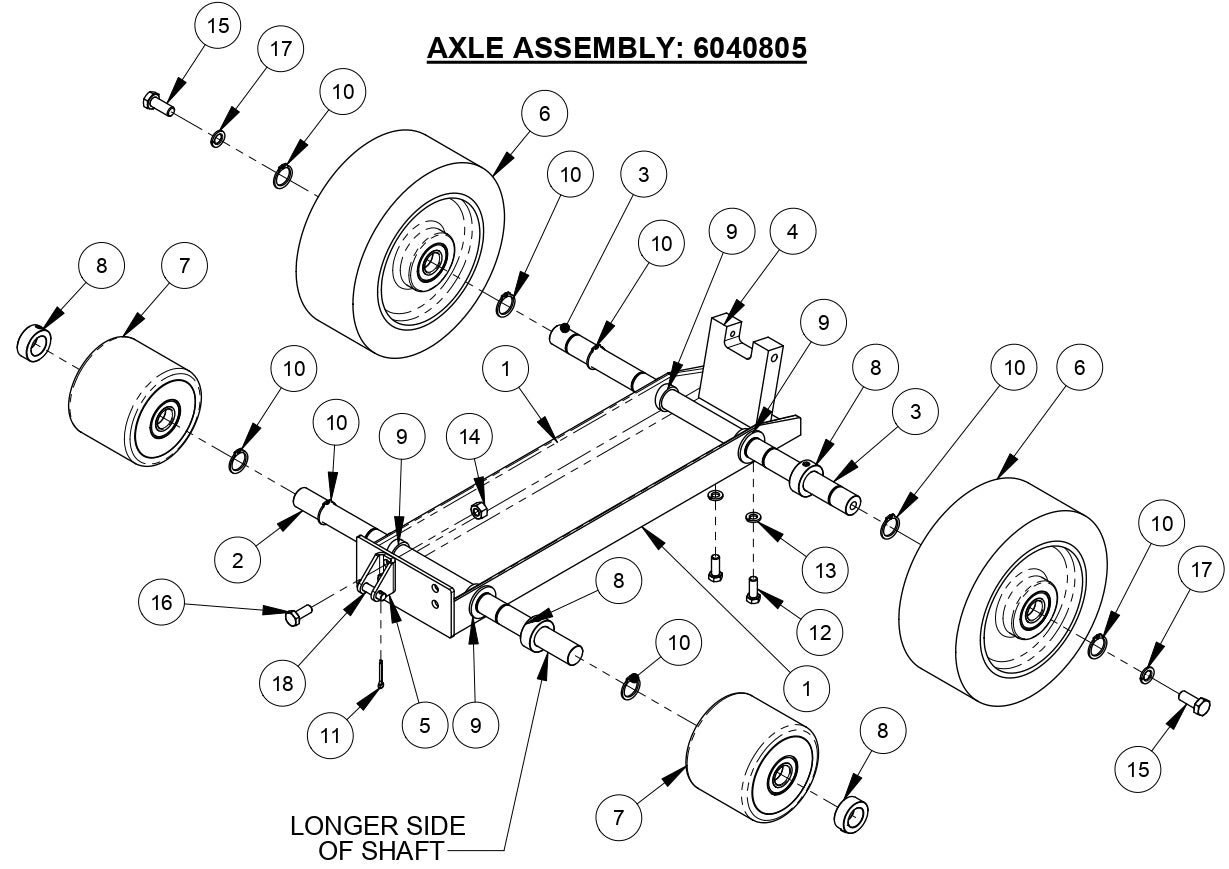

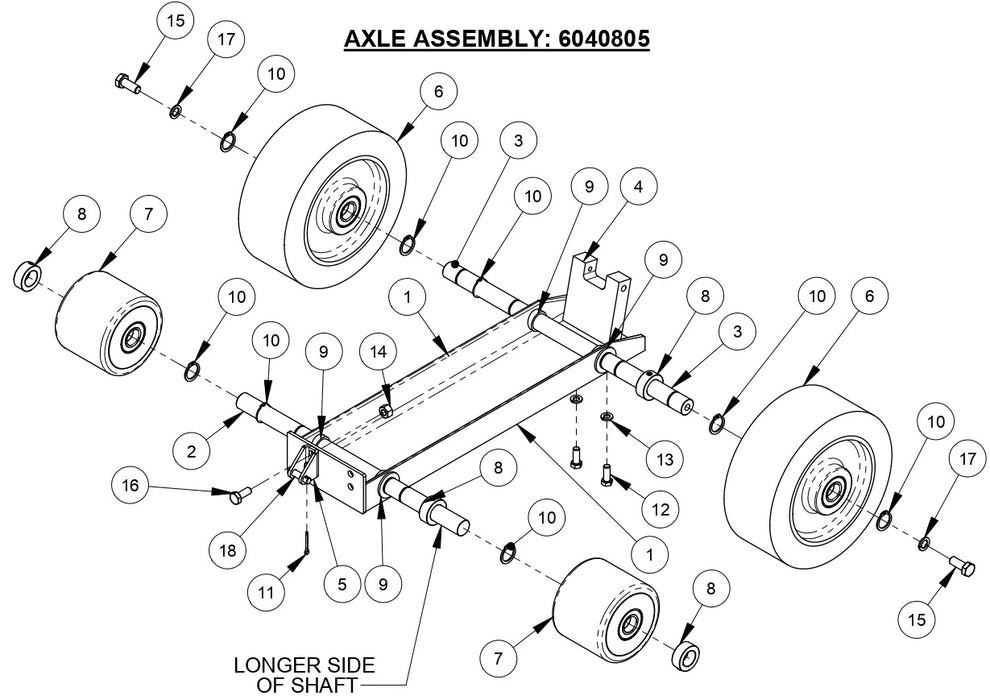

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.
