CC190PRO Engine Assembly Parts

CC190PRO Engine Assembly Parts

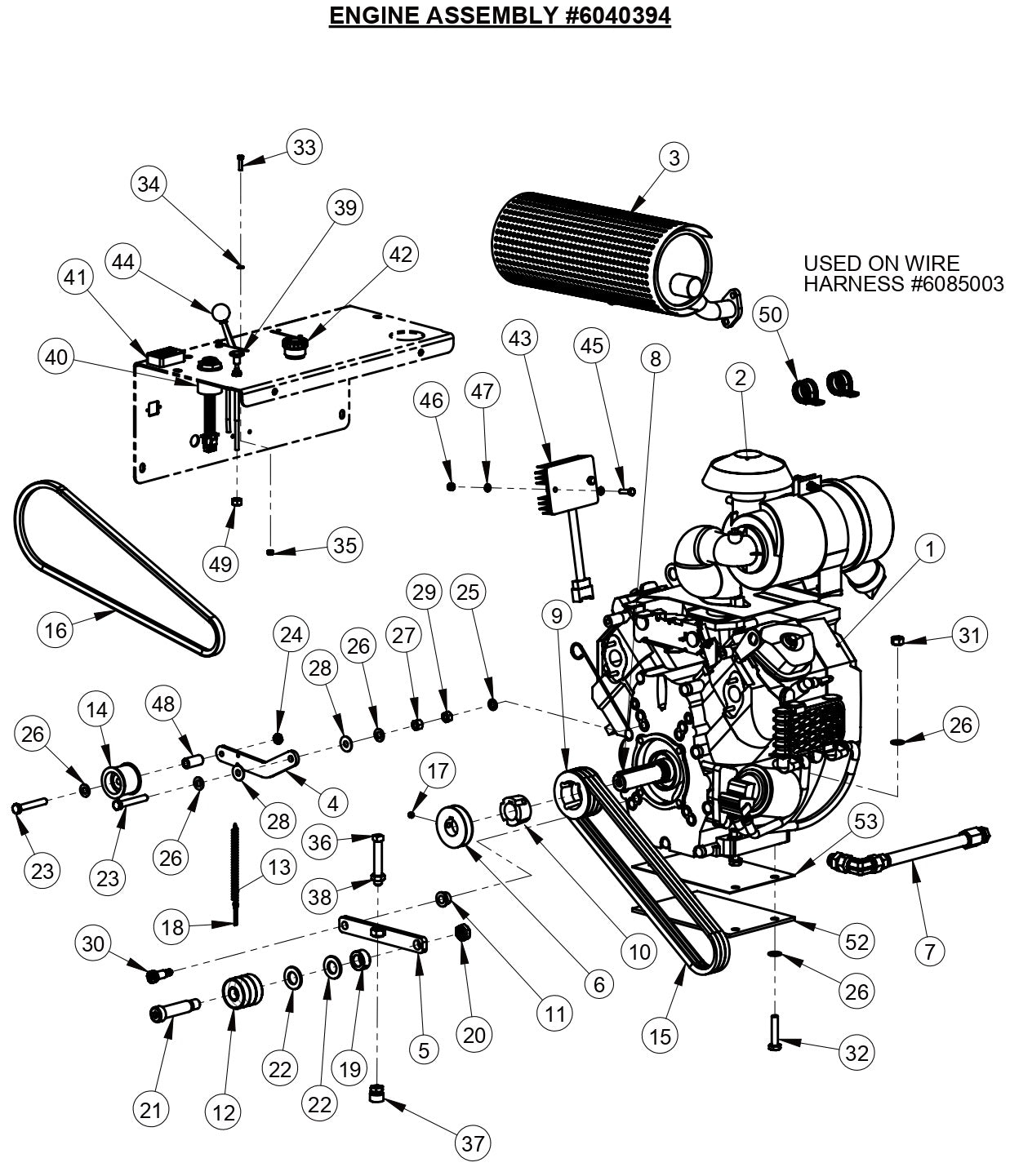

  • CC190PRO ENGINE ASSEMBLY
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600644 Engine, Honda (GX630) for CC190PRO Concrete Saw Core Cut by Diamond Products
$4,178.79
2
2703556 Air Cleaner Assembly for CC190PRO Concrete Saw Core Cut by Diamond Products
$326.70
3
2708046 Honda Muffler, R Side Exhaust for CC190PRO Concrete Saw Core Cut by Diamond Products
$511.83
4
6040772 Idler Arm for CC190PRO Concrete Saw Core Cut by Diamond Products
$33.01
5
6040758 Belt Tensioner Arm for CC190PRO Concrete Saw Core Cut by Diamond Products
$46.55
6
6048195 Pulley, 1-1/8" Bore for CC190PRO Concrete Saw Core Cut by Diamond Products
$107.00
7
6040760 Oil Drain Hose Assembly for CC190PRO Concrete Saw Core Cut by Diamond Products
$88.24
8
6047977 Key, 1/4" Sq. x 3" for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
9
2500024 Sheave, 3.15-3 Groove for CC190PRO Concrete Saw Core Cut by Diamond Products
$134.64
10
2500029 Taper Bushing, 1-1/8" with Set Screws for CC190PRO Concrete Saw Core Cut by Diamond Products
$49.50
11
2501727 Bearing, 1/2" ID Flanged Bronze for CC190PRO Concrete Saw Core Cut by Diamond Products
$9.79
12
2502716 Ball Bearing, 3/4 x 2 x 9/16 (1638-ZZ) for CC190PRO Concrete Saw Core Cut by Diamond Products
$22.60
13
2500230 Spring, 3/8" x 5-1/2" for CC190PRO Concrete Saw Core Cut by Diamond Products
$29.05
14
2504638 Idler Pulley, 2" Flat with 3/8" Bore for CC190PRO Concrete Saw Core Cut by Diamond Products
$51.43
15
2503876 V-Belt, 3VX385 for CC190PRO Concrete Saw Core Cut by Diamond Products
$45.20
16
2501781 V-Belt, AX42 for CC190PRO Concrete Saw Core Cut by Diamond Products
$35.51
17
2900036 Set Screw, Soc. Hd., 5/16-18 x 1/4" for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
18
2900055 Cotter Pin, 3/16" x 1" for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
19
2400615 Set Collar, 3/4" for CC190PRO Concrete Saw Core Cut by Diamond Products
$8.56
20
2900753 Jam Lock Nut, 5/8-11 for CC190PRO Concrete Saw Core Cut by Diamond Products
$6.99
21
2901979 Shoulder Screw, 3/4 x 2-1/2" (5/8-11) for CC190PRO Concrete Saw Core Cut by Diamond Products
$24.75
22
2900003 Flat Washer, 3/4" SAE for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
23
2900521 Tap Bolt, Hex Hd., 3/8-16 x 2-1/2" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
24
2900782 Jam Nut, 3/8-16 for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
25
2900006 Lock Washer, 3/8" Split for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
26
2900014 Flat Washer, 3/8" SAE for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
27
2900018 Locknut, 3/8-16, Nylon for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
28
2900153 Friction Washer, 3/8" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
29
2900033 Hex Nut, 3/8-16 for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
30
2902004 Shoulder Screw, 1/2" x 7/8" (3/8-16) for CC190PRO Concrete Saw Core Cut by Diamond Products
$9.31
31
2900304 Lock Nut, M10-1.5 Nylon Insert for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
32
2900318 Cap Screw, Hex Hd., M10-1.5 x 50mm for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
33
2900309 Cap Screw, Hex Hd., M5-0.8 x 20mm for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
34
2900926 Flat Washer, M5 for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
35
2900301 Lock Nut, M5-0.8 Nylon Insert for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
36
2902005 Set Screw, Sq. Hd., 1/2-13 x 3" for CC190PRO Concrete Saw Core Cut by Diamond Products
$6.99
37
2900722 Swivel Pad, 1/2-13 for CC190PRO Concrete Saw Core Cut by Diamond Products
$36.59
38
2900129 Jam Nut, 1/2-13 for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
39
2500377 Choke Cable for CC190PRO Concrete Saw Core Cut by Diamond Products
$29.70
40
6049057 Honda Ignition Switch Assembly for CC190PRO Concrete Saw Core Cut by Diamond Products
$284.13
41
2801502 Tach/Hour Meter, W/#6 Screws for CC190PRO Concrete Saw Core Cut by Diamond Products
$155.43
42
2801367 E-Stop Switch for CC190PRO Concrete Saw Core Cut by Diamond Products
$81.10
43
2701670 Rectifier Assembly for CC190PRO Concrete Saw Core Cut by Diamond Products
$401.94
44
2500810 Throttle Control, 36" for CC190PRO Concrete Saw Core Cut by Diamond Products
$29.82
45
2900311 Cap Screw, Hex Hd., M6-1.0 x 25mm for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
46
2900302 Lock Nut, M6-1.0 Nylon Insert for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
47
2901494 Flat Washer, M6 for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
48
4647121 Spacer, Adjustable Roller for CC190PRO Concrete Saw Core Cut by Diamond Products
$10.76
49
2900148 Hex Nut, 3/8-24 for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
50
3201729 Hose Clamp, 1" x 3/4" Wide for CC190PRO Concrete Saw Core Cut by Diamond Products
$6.99
51
6049058 Wire Harness (Not Shown) for CC190PRO Concrete Saw Core Cut by Diamond Products
$274.23
52
6040799 Motor Mount Pad for CC190PRO Concrete Saw Core Cut by Diamond Products
$96.55
53
6040798 Motor Mount Plate for CC190PRO Concrete Saw Core Cut by Diamond Products
$30.59
