CC190PRO Fuel System Parts

CC190PRO Fuel System Parts

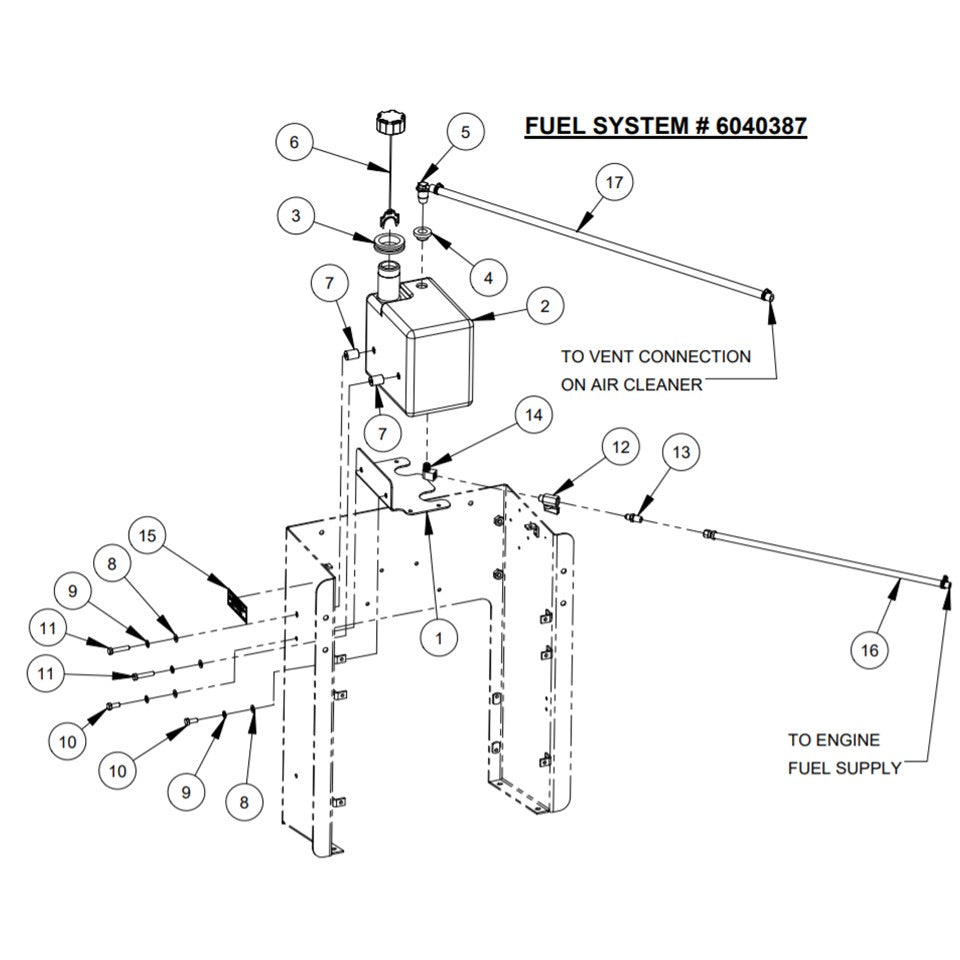

  • CC190PRO FUEL SYSTEM
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6048327 Bracket for CC190PRO Concrete Saw Core Cut by Diamond Products
$54.77
2
6010849 Fuel Tank, 1.5 Gallon for CC190PRO Concrete Saw Core Cut by Diamond Products
$262.35
3
2500623 Fuel Tank Grommet for CC190PRO Concrete Saw Core Cut by Diamond Products
$21.37
4
2506716 Grommet for CC190PRO Concrete Saw Core Cut by Diamond Products
$6.99
5
2502484 Roll Over Vent, 1/4" Hose Barb for CC190PRO Concrete Saw Core Cut by Diamond Products
$39.65
6
2506718 Fuel Tank Cap, 1-3/4" for CC190PRO Concrete Saw Core Cut by Diamond Products
$43.46
7
2900797 Standoff, 3/4 x 1" for CC190PRO Concrete Saw Core Cut by Diamond Products
$4.99
8
2901336 Flat Washer, M8 for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
9
2900763 Lock Washer, M8 Split for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
10
2900329 Cap Screw, Hex Hd., M8-1.25 x 20mm for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
11
2900792 Cap Screw, Hex Hd., M8-1.25 x 40mm for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
12
3200108 Ball Valve, 1/4" NPT for CC190PRO Concrete Saw Core Cut by Diamond Products
$38.47
13
3200418 Adapter, 1/4" M. Pipe to 1/4" M. JIC for CC190PRO Concrete Saw Core Cut by Diamond Products
$6.99
14
3200012 Street Elbow, 1/4" NPT for CC190PRO Concrete Saw Core Cut by Diamond Products
$13.14
15
1801716 Decal, EPA EVAP Standard for CC190PRO Concrete Saw Core Cut by Diamond Products
$6.99
16
6040390 Hose Assy., Fuel, 1/4 x 22.1" for CC190PRO Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
17
6040391 Vent Hose Assy., 3/8 x 34" for CC190PRO Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
View full details
