CC190PRO Spring Box Assembly 14" Parts

CC190PRO Spring Box Assembly 14" Parts

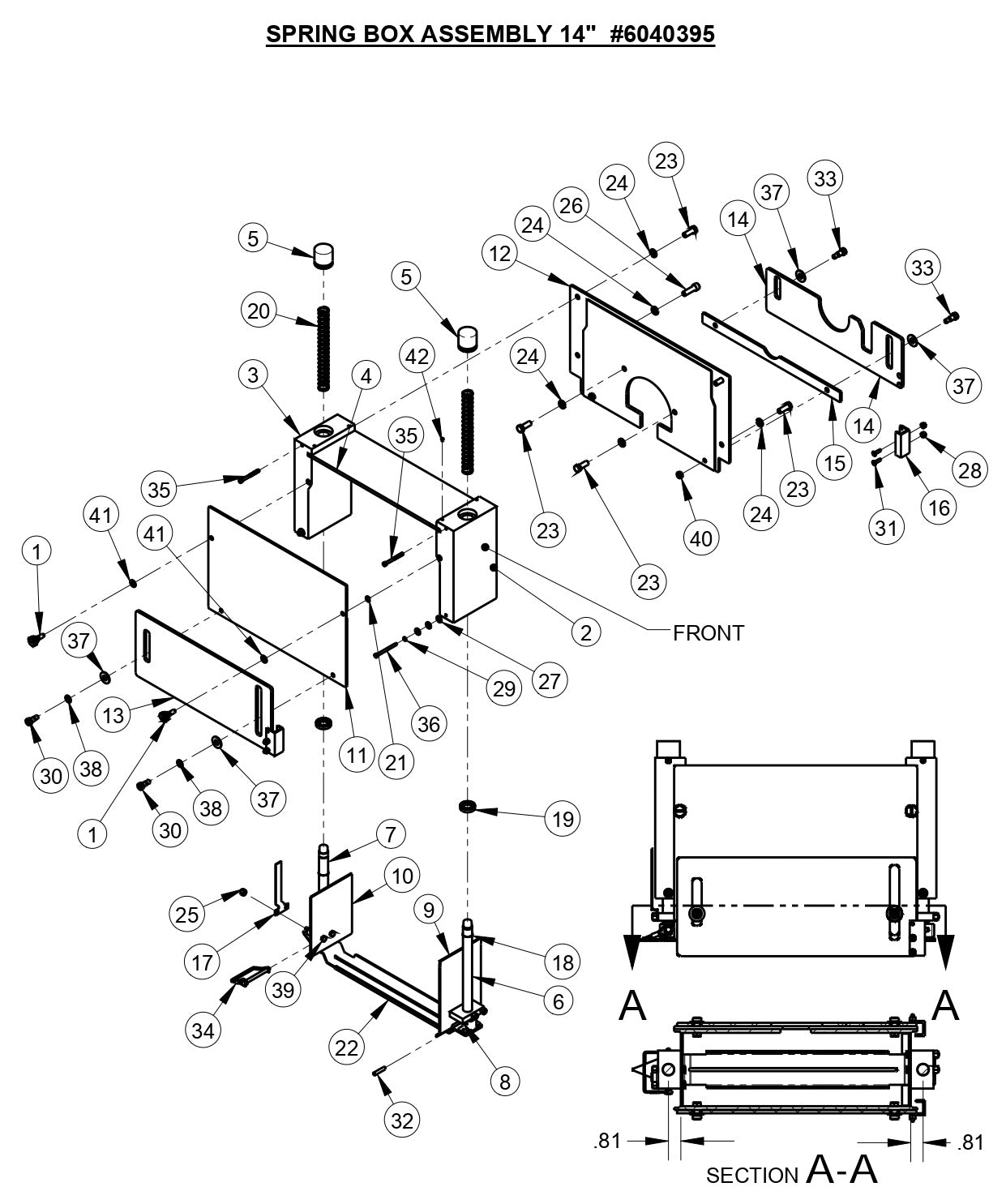

  • CC190PRO SPRING BOX ASSEMBLY 14"
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6040385 Captive Thumb Screw, 5/16-18 for CC190PRO Concrete Saw Core Cut by Diamond Products
$51.80
2
6040677 Spring Block. Front 14" for CC190PRO Concrete Saw Core Cut by Diamond Products
$344.52
3
6040678 Spring Block, Rear 14" for CC190PRO Concrete Saw Core Cut by Diamond Products
$344.52
4
6040679 Cover, Top for CC190PRO Concrete Saw Core Cut by Diamond Products
$38.73
5
6040680 Cap, Spring Block for CC190PRO Concrete Saw Core Cut by Diamond Products
$84.78
6
6040770 Shaft, Spring Block Front for CC190PRO Concrete Saw Core Cut by Diamond Products
$116.32
7
6040771 Shaft, Spring Block Rear for CC190PRO Concrete Saw Core Cut by Diamond Products
$111.00
8
6040683 Collar, Dust Diverter for CC190PRO Concrete Saw Core Cut by Diamond Products
$61.40
9
6040769 Diverter, Front Dust for CC190PRO Concrete Saw Core Cut by Diamond Products
$32.64
10
6040685 Diverter, Rear Dust for CC190PRO Concrete Saw Core Cut by Diamond Products
$53.46
11
6040686 Cover, Front Spring Box for CC190PRO Concrete Saw Core Cut by Diamond Products
$347.49
12
6040687 Cover, Rear Spring Box for CC190PRO Concrete Saw Core Cut by Diamond Products
$421.74
13
6040688 Shield, Front Spring Box for CC190PRO Concrete Saw Core Cut by Diamond Products
$72.66
14
6040689 Shield, Rear Spring Box for CC190PRO Concrete Saw Core Cut by Diamond Products
$79.57
15
6040690 Spacer, Rear Shield for CC190PRO Concrete Saw Core Cut by Diamond Products
$33.11
16
6040691 Channel, Rear Shield for CC190PRO Concrete Saw Core Cut by Diamond Products
$25.79
17
6040693 Depth Guide for CC190PRO Concrete Saw Core Cut by Diamond Products
$36.59
18
2504630 Retaining Ring, 3/4 Ext. Spiral for CC190PRO Concrete Saw Core Cut by Diamond Products
$11.00
19
2504631 Shaft Seal, 3/4" Shaft for CC190PRO Concrete Saw Core Cut by Diamond Products
$28.52
20
2504871 Comp. Spring, .866 X .079 X 7.874L for CC190PRO Concrete Saw Core Cut by Diamond Products
$22.30
21
2504645 Retaining Ring, 5/16 Ext. for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
22
2505276 NLA 14" Skid Plate Assembly-.200 Slot for CC190PRO Concrete Saw Core Cut by Diamond Products NLA
Call for Price call for price call for price
23
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
24
2900006 Lock Washer, 3/8" Split for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
25
2900010 Lock Nut, 1/4-20 Nylon for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
26
2900724 Cap Screw, Soc. Hd., 3/8-16 x 1-1/4" for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
27
2900016 Flat Washer, #10 USS for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
28
2900017 Lock Nut, #10-24 Nylon for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
29
2900038 Lock Washer, #10 Split for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
30
2900253 Shoulder Screw, 3/8 x 3/8" (5/16-18) for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
31
2900469 Cap Screw, Flat Hd., #10-24 X 3/4" for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
32
2900577 Pin, Dowel 1/4 x 1-1/4" for CC190PRO Concrete Saw Core Cut by Diamond Products
$4.10
33
2900672 Shoulder Screw, 3/8" x 1/2" (5/16-18) for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
34
2901589 Pin, Safety 1/4" for CC190PRO Concrete Saw Core Cut by Diamond Products
$13.09
35
2901596 Cap Screw, Soc. Hd., #10-32 x 2" for CC190PRO Concrete Saw Core Cut by Diamond Products
$4.99
36
2901877 Cap Screw, Soc. Hd., #10-32 x 2-1/4" for CC190PRO Concrete Saw Core Cut by Diamond Products
$4.67
37
2902001 Flat Washer, 3/8" PVC for CC190PRO Concrete Saw Core Cut by Diamond Products
$6.99
38
2901881 Flat Washer, 3/8" Shim for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
39
2901882 Tap Bolt, Hex Hd., 1/4-20 x 2" for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
40
2901884 Jam Locknut, 5/16-18" Nylon for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
41
2901963 Washer, Belleville 5/16" for CC190PRO Concrete Saw Core Cut by Diamond Products
$6.99
42
2900059 Set Screw, Soc. Hd., #10-32 x 1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
43
2502046 Grease, Fuchs Synthetic for CC190PRO Concrete Saw Core Cut by Diamond Products
$104.38
44
2504745 Cable Tie, Nylon 48" Long for CC190PRO Concrete Saw Core Cut by Diamond Products
$6.89
45
Diamond Products DECAL, BLADE DEPTH CC190PRO-EE 1802578
$53.49
46
1805555 First Cut Decal fits CC190PRO by Core Cut Diamond Products
$10.19
