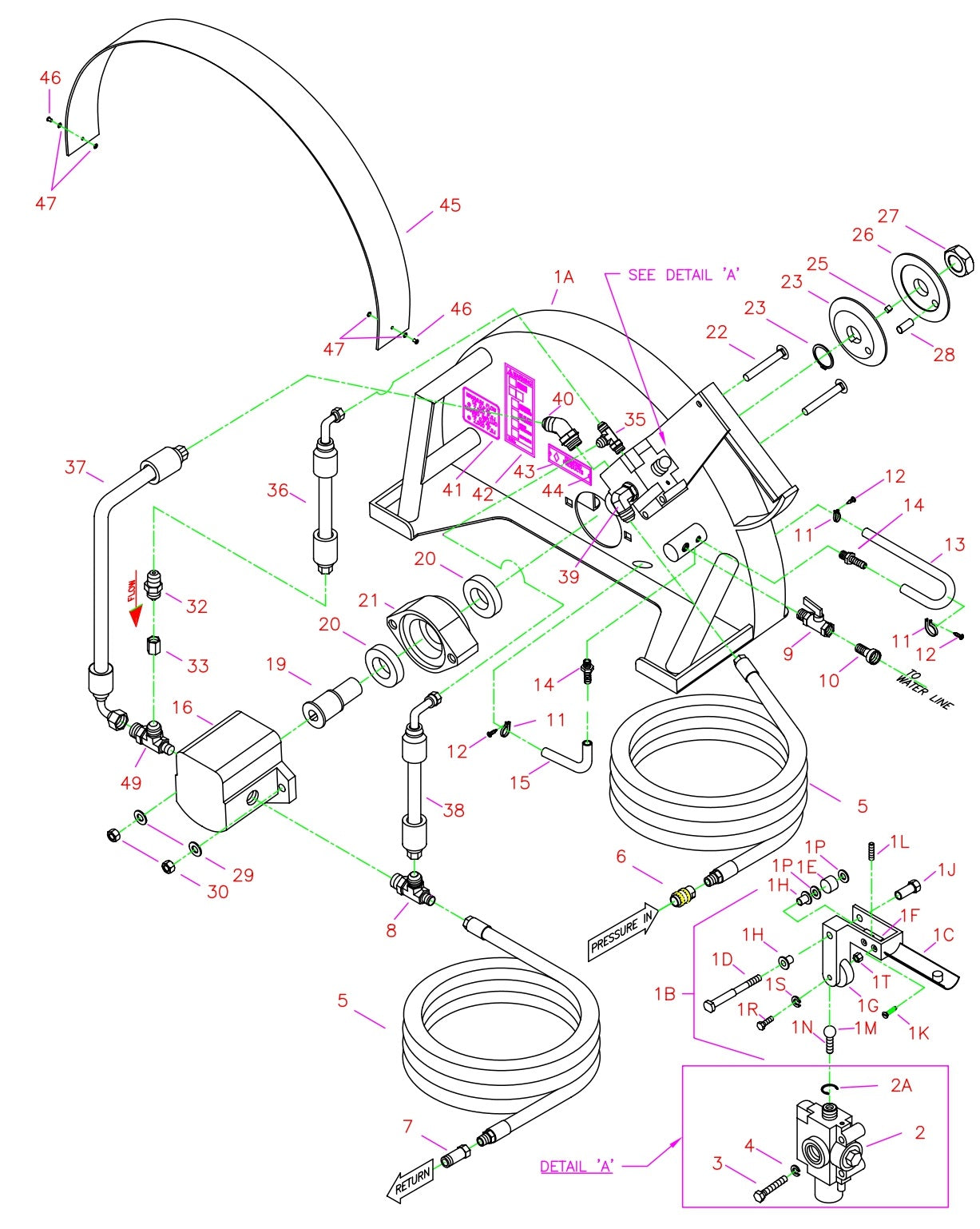

CC21 Hand Saw Assembly Parts

CC21 Hand Saw Assembly Parts

  • CC21 Hand Saw
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
2501489 Hand Saw Frame for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
1A
2501595 Body Weldment for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
1B
2501596 Trigger Sub-Assembly for CC21 Hand Saw Core Cut by Diamond Products
$456.39
1C
2501594 Trigger Weldment for CC21 Hand Saw Core Cut by Diamond Products
$35.51
1D
2501568 Pivot Bolt, 5/16-18 for CC21 Hand Saw Core Cut by Diamond Products
$65.64
1E
2501515 Bushing, UHMV for CC21 Hand Saw Core Cut by Diamond Products
$12.91
1F
2501483 Stop Block for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
1G
2501582 Trigger Cam Roller for CC21 Hand Saw Core Cut by Diamond Products
$12.91
1H
2501583 Flanged Bearing for CC21 Hand Saw Core Cut by Diamond Products
$6.99
1J
2501593 Shoulder Nut, 5/16-18 for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
1K
2900610 Flat Hd. Cap Screw, #10-32 x 5/8" for CC21 Hand Saw Core Cut by Diamond Products
$3.99
1L
2900921 Set Screw, 1/4-20 x 1" for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
1M
2501584 Steel Ball, Threaded and Chrome Plated for CC21 Hand Saw Core Cut by Diamond Products
$35.51
1N
2900923 Set Screw Cup Point, 5/16-18 x 1" for CC21 Hand Saw Core Cut by Diamond Products
$2.99
1P
2900022 Flat Washer, 5/16" SAE for CC21 Hand Saw Core Cut by Diamond Products
$2.99
1R
2900048 Hex Hd Cap Screw, 1/4-20 x 1-1/2" for CC21 Hand Saw Core Cut by Diamond Products
$2.99
1S
2900024 Lock Washer, 1/4" Split for CC21 Hand Saw Core Cut by Diamond Products
$2.99
1T
2900125 Hex Nut, 1/4-20 for CC21 Hand Saw Core Cut by Diamond Products
$2.99
2
2501497 Valve, 3-Way, Single Selector Type for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
2A
2501294 Retaining Ring for CC21 Hand Saw Core Cut by Diamond Products
$59.19
2B
2501295 Seal Kit (Not Shown) for CC21 Hand Saw Core Cut by Diamond Products
$26.90
3
2900538 Hex Hd. Cap Screw, 5/16-18 x 1-3/4" for CC21 Hand Saw Core Cut by Diamond Products
$3.99
4
2900031 Lock Washer, 5/16" Split for CC21 Hand Saw Core Cut by Diamond Products
$2.99
5
6030204 Hydraulic Hose, 1/2 " F. JIC TO 1/2" M. PIPE for CC21 Hand Saw Core Cut by Diamond Products
$165.33
6
3200104 Coupler, 1/2" Q.D., Flat Face Style for CC21 Hand Saw Core Cut by Diamond Products
$102.89
7
3200105 Nipple, 1/2" Q.D., Flat Face Style for CC21 Hand Saw Core Cut by Diamond Products
$59.14
8
3200508 Tee, 1/2" M. JIC to 3/4" M. O-RING for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
9
3200034 Water Petcock, 1/4" NPT for CC21 Hand Saw Core Cut by Diamond Products
$31.21
10
3200042 Fitting, 1/4" M. Pipe- 3/4" F Garden Hose for CC21 Hand Saw Core Cut by Diamond Products
$27.98
11
2503483 Hose Clamp, White Nylon for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
12
2900021 Pan Hd. Tapscrew, #10-24 X 3/8" for CC21 Hand Saw Core Cut by Diamond Products
$2.99
13
6004892 Tubing, 1/4" O.D. x 14-1/4" for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
14
3200187 Tube Fitting, 3/16"-1/8" NPT Hose Barb for CC21 Hand Saw Core Cut by Diamond Products
$6.59
15
6004893 Tubing, Clear 1/4" OD x 7" for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
16
2600344 Hydraulic Gear Motor (1.58 Cu-In.) for CC21 Hand Saw Core Cut by Diamond Products
$1,220.67
16
2600345 Hydraulic Gear Motor (1.27 Cu-In.) for CC21 Hand Saw Core Cut by Diamond Products
$1,147.20
17
2702355 Motor Shaft Seal Kit (Not Shown) for CC21 Hand Saw Core Cut by Diamond Products
$282.15
18
6000008 Motor & Blade Mounting Parts for CC21 Hand Saw Core Cut by Diamond Products
$870.00
19
2501555 Blade Shaft for CC21 Hand Saw Core Cut by Diamond Products
$743.49
20
2501556 Bearing 1.25 " x 2.25" with Two Seals for CC21 Hand Saw Core Cut by Diamond Products
$36.59
21
2501557 Pillow Block for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
22
2900977 Carriage Bolt, 3/8-16 x 2-3/4", Zinc Plate for CC21 Hand Saw Core Cut by Diamond Products
$3.99
23
2500579 Retaining Ring, 1-1/4" External for CC21 Hand Saw Core Cut by Diamond Products
$2.99
24
6030205 Inner Flange, 4" Dia. for CC21 Hand Saw Core Cut by Diamond Products
$72.00
25
2501558 Key, 1/4" x 1/4" x .22" for CC21 Hand Saw Core Cut by Diamond Products
$6.99
26
6030206 Outer Flange, 4" Dia. for CC21 Hand Saw Core Cut by Diamond Products
$59.62
27
2900167 Jam Nut, 1-14 Left Hand for CC21 Hand Saw Core Cut by Diamond Products
$24.70
28
2900605 Dowel Pin, 3/8" Dia. x 7/8" for CC21 Hand Saw Core Cut by Diamond Products
$6.16
29
2900014 Flat Washer, 3/8" SAE for CC21 Hand Saw Core Cut by Diamond Products
$2.99
30
2900018 Lock Nut, 3/8-16 Nylon for CC21 Hand Saw Core Cut by Diamond Products
$2.99
31
6000009 Motor & Blade Mount with Hoses & Fittings for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
32
3200504 Tee, 1/2" M. JIC to 5/8" O-RING - 1/2"M. JIC for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
33
3200535 Union, 1/2"F. JIC to 1/2" F. JIC for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
34
2702334 In-Line Check Valve, #8 JIC 3/4"-16 for CC21 Hand Saw Core Cut by Diamond Products
$120.00
35
3200536 Tee, 1/2" M. JIC to 1/2" M. JIC to 1/2" O Ring for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
36
6030208 Hyd. Hose Assy., 1/2 " F. JIC to 45 Deg. F. JIC for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
37
6030207 Hyd. Hose Assy., 1/2 " F. JIC to 90 Deg. F. JIC for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
38
6030209 Hyd. Hose Assy., 1/2 " F. JIC to 90 Deg. F. JIC for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
39
3200285 90 Deg. Elbow, 1/2" M. JIC to 1/2" M. O-Ring for CC21 Hand Saw Core Cut by Diamond Products
$11.84
40
3200367 45 Deg. Elbow, 1/2" M. O-Ring TO 1/2" M. JIC for CC21 Hand Saw Core Cut by Diamond Products
$15.07
41
1800704 Maximum Flow Label, 14 GPM (1.3 C.I.) for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
41
1800705 Maximum Flow Label, 17 GPM (1.6 C.I.) for CC21 Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
42
1800001 S.M.I. Warning Label for CC21 Hand Saw Core Cut by Diamond Products
$3.99
43
1800169 Serial Number Plate for CC21 Hand Saw Core Cut by Diamond Products
$21.24
44
2900096 Aluminum Rivets, 3/32"Dia x 3/8" for CC21 Hand Saw Core Cut by Diamond Products
$2.99
45
2501559 Liner, 37-1/4" Long for CC21 Hand Saw Core Cut by Diamond Products
$46.27
46
2900290 Rivet,3/16" Dia. for CC21 Hand Saw Core Cut by Diamond Products
$2.99
47
2900016 Flat Washer, #10 SAE for CC21 Hand Saw Core Cut by Diamond Products
$2.99
