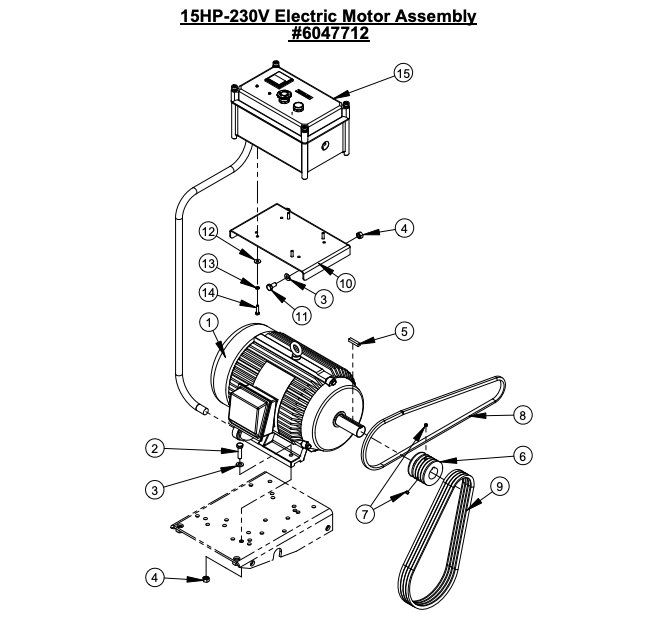

CC2500 15HP-230V Electric Motor Assembly

CC2500 15HP-230V Electric Motor Assembly

  • CC2500 15HP-230V Electric Motor Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products 15HP LEESON MOTOR 208-230/460V, 3600 RPM 2600202
$3,427.50
2
2900316 Cap Screw, Hex Hd., M10-1.5 x 40mm for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
3
Flat Washer, 3/8" SAE 2900014 for CC2500 Saw by Core Cut Diamond Products
$2.99
4
Lock Nut, M10-1.5 Nylon Insert 2900304 for CC2500 Saw by Core Cut Diamond Products
$2.99
5
6048046 Key, 5/16" Sq. x 1-1/2" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$4.99
6
Diamond Products SHEAVE 3.00 X 1-3/8" BORE 3V-4 GROOVE / 4L-1 GROOVE 6047913
$211.86
7
Set Screw, Soc. Hd., 5/16-18 x 1/4" 2900036 for CC2500 Saw by Core Cut Diamond Products
$3.20
8
V-Belt, 4L-500 2500849 for CC2500 Saw by Core Cut Diamond Products
$26.90
9
V-Belt, 3VX400 2500792 for CC2500 Saw by Core Cut Diamond Products
$39.81
10
Diamond Products STARTER BOX PLATFORM FOR CC2500 SAW (ELECTRIC) 6047950
$99.66
11
Cap Screw, Hex Hd., M10-1.5 x 20mm 2900314 for CC2500 Saw by Core Cut Diamond Products
$3.99
12
2901359 Fender Washer, M6 for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
13
Lock Washer, M6 Split 2900765 for CC2500 Saw by Core Cut Diamond Products
$2.99
14
Cap Screw, Hex Hd., M6 x 25mm 2900311 for CC2500 Saw by Core Cut Diamond Products
$2.99
15
Diamond Products STARTER BOX ASSEMBLY FOR 15HP-3PH 230V MOTOR 6004896
$2,164.14
View full details
