CC2500 25 HP Kohler Engine Assembly Parts By Diamond Products

CC2500 25 HP Kohler Engine Assembly Parts By Diamond Products

  • CC2500 25 HP Kohler Engine Assembly Parts By Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
Diamond Products MUFFLER ASSEMBLY 25HP KOHLER ENGINE 6047897
$1,032.57
3
2900317 Hex Cap Screw M10 1.5 x 45mm 2900317 for CC1800 XL and CC2500 Saw by Core Cut Diamond Products
$4.99
4
2900014 3/8" SAE Flat Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900304 Lock Nut, M10-1.5 Nylon Insert fits CC1823BVXLP by Core Cut Diamond Products
$2.99
6
Diamond Products KEY, 3/8" SQ. X 2-1/4" 6047959
$6.99
7
Sheave, 3" x 1-7/16" Bore 6047914 for CC2500 Saw by Core Cut Diamond Products
$204.93
8
Set Screw, Soc. Hd., 5/16-18 x 1/4" 2900036 for CC2500 Saw by Core Cut Diamond Products
$3.20
10
Diamond Products V-BELT 4L510 2503914
$59.64
11
Oil Drain Hose Assembly, 8-1/4" 6047974 for CC2500 Saw by Core Cut Diamond Products
$26.80
11.1
Fitting, 3/8" MPT to 1/4" Pushlok 3200070 for CC2500 Saw by Core Cut Diamond Products
$16.01
11.2
Fitting, 1/4" M. JIC to 1/4" Push Lock 3200040 for CC2500 Saw by Core Cut Diamond Products
$11.95
11.3
Cap, 1/4" JIC 3200006 for CC2500 Saw by Core Cut Diamond Products
$3.99
11.4
Oil Drain Hose, 1/4" ID X 12" Long 6047955 for CC2500 Saw by Core Cut Diamond Products
$11.73
12
Fuel Line Assembly 6010498 for CC2500 Saw by Core Cut Diamond Products
$41.03
12.1
Hose Clamp #4 3200062 for CC2500 Saw by Core Cut Diamond Products
$7.33
12.2
Hose, 3/16" ID x20" 6011392 for CC2500 Saw by Core Cut Diamond Products
Call for Price call for price call for price
13
Flat Washer, 3/4" SAE 2900003 for CC2500 Saw by Core Cut Diamond Products
$2.99
14
Ignition Switch w/ Key (27KC) 2700892 for CC2500 Saw by Core Cut Diamond Products
$103.31
15
Wiring Harness (Not Shown) 2700885 for CC2500 Saw by Core Cut Diamond Products
$131.67
1
Call for Price call for price call for price
9
Call for Price call for price call for price
View full details

Frequently asked questions

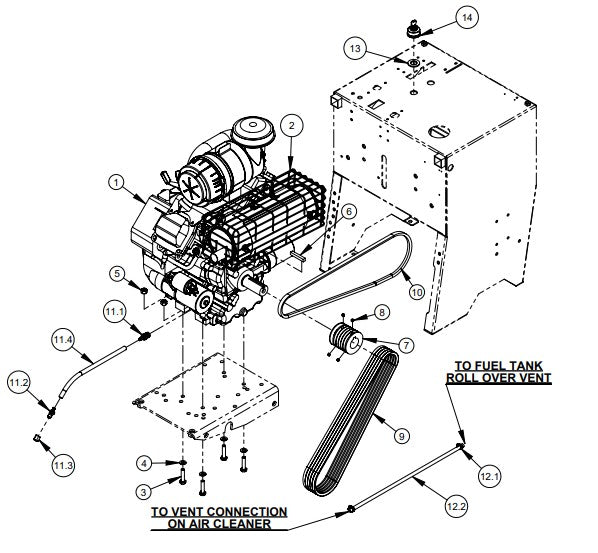

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
