CC2500 Hydraulic Motor Option for 14" & 16" Blade Guards

CC2500 Hydraulic Motor Option for 14" & 16" Blade Guards

  • CC2500 Hydraulic Motor Option for 14" & 16" Blade Guards
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600064 Hydraulic Motor 1.94 CI 2 Bolt Keyed Shaft 3000 RPM Max with Key for CC2500 Core Cut Saw by Diamond Products
$3,245.22
2
2900357 3/8-16 x 1.50" SHCS for CS-2000-100 CURB SAW Core Cut by Diamond Products
$3.99
3
Lock Washer, 3/8" Split 2900006 for CC2500 Saw by Core Cut Diamond Products
$2.99
4
Key, 3/16" Sq. x 1-1/4" 6048229 for CC2500 Saw by Core Cut Diamond Products
$2.99
5
4699901 Shim for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$33.52
6
2500686 Bearing, 50mm x 90mm x 20mm for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$33.48
7
Diamond Products PILLOW BLOCK (CC1800) 6048115
$340.56
8
Grease Fitting, 1/8" NPT 2900062 for CC2500 Saw by Core Cut Diamond Products
$3.99
9
Diamond Products HYDRAULIC SPINDLE SHAFT FOR CC1800 SAW 6048116
$468.27
10
Key, 1/4" Sq. x 3" 6047977 for CC2500 Saw by Core Cut Diamond Products
$3.99
11
Diamond Products SEAL PLATE (CC1800) HYD. 6048117
$87.10
13
Diamond Products SEAL PLATE (CC1800) HYD. 6048117
$87.10
12
Pulley, 1-1/8" Bore 6048195 for CC2500 Saw by Core Cut Diamond Products
$107.00
14
Pulley, 1-1/8" Bore 6048195 for CC2500 Saw by Core Cut Diamond Products
$107.00
15
Set Screw, Soc. Hd., 5/16-18 x 1/4" 2900036 for CC2500 Saw by Core Cut Diamond Products
$3.20
16
V-Belt, 4L-500 2500849 for CC2500 Saw by Core Cut Diamond Products
$26.90
17
2500621 Sheave 3V-3.65-4 Groove, Taper Type 1610 for CC2500 Hydraulic Saw by Core Cut Diamond Products
$146.50
18
2500031 Taper Bushing, 1-1/8" w/Set Screws for CG-1 MINI-GROOVER Core Cut by Diamond Products
$54.81
19
2900484 Set Screw, Soc. Hd., 3/8-16 x 5/8" for CC1600 WALL SAW Core Cut by Diamond Products
$1.99
20
V-Belt, 3VX400 2500792 for CC2500 Saw by Core Cut Diamond Products
$39.81
21
2900521 Tap Bolt, Hex Hd., 3/8-16 x 2-1/2" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
22
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" fits Core Cut CC1300XL Concrete Floor Saw by Diamond Products
$2.99
23
2900014 3/8" SAE Flat Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
24
2900033 Hex Nut 3/8-16 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
25
Diamond Products WEIGHT, SAW (CAST IRON) 6048255
$437.58
26
3200005 Ball Valve, 3/4" Pipe for CC1600 WALL SAW Core Cut by Diamond Products
$155.43
27
3200083 Tee, 3/4" Pipe Run for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$42.43
28
3200100 Coupler, 3/4" Quick Disconnect for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$324.72
29
3200101 Nipple, 3/4" Quick Disconnect for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$129.69
31
2900125 1/4-20 Hex Nut for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
34
Diamond Products HYDRAULIC HOSE 3/4" X 34" FOR CC2525HY 6048214
$201.96
36
3200110 Elbow, Male, 3/4" JIC TO 1/2" Pipe for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$23.67
37
3200111 Elbow, 1" M. Pipe to 3/4" M. JIC for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$30.86
30
02250059-759 Pnl Clr End - Rsvs250/300 Encl by Sullair
$1,597.32
35
Diamond Products HOSE ASSY.,3/4" X 31-1/2" MPT-FJIC 6048136
$184.14
32
2900024 Lock Washer 1/4" Split 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
33
Flat Washer, 1/4" SAE 2900009 for CC2500 Saw by Core Cut Diamond Products
$2.99
View full details

Frequently asked questions

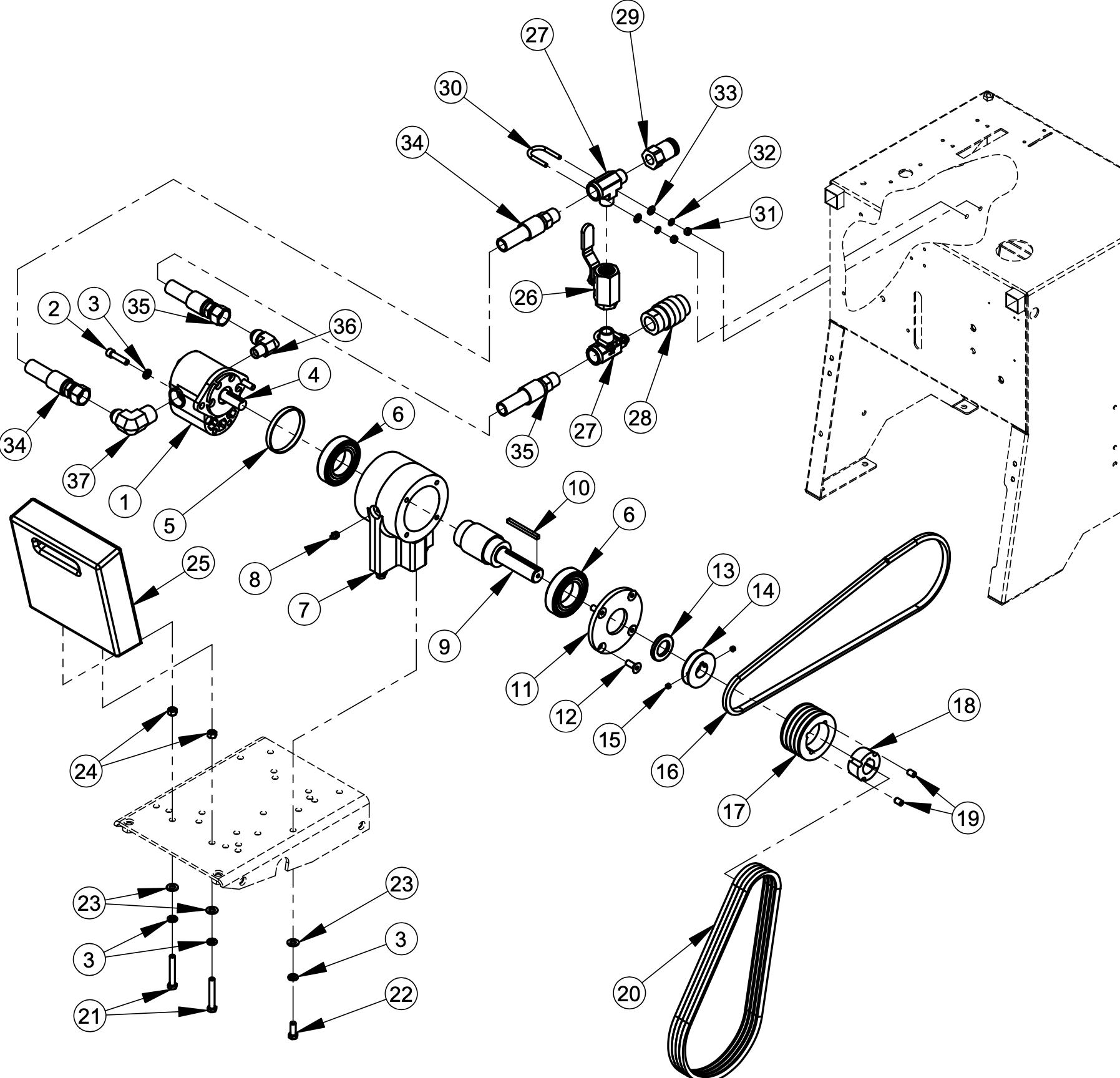

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
