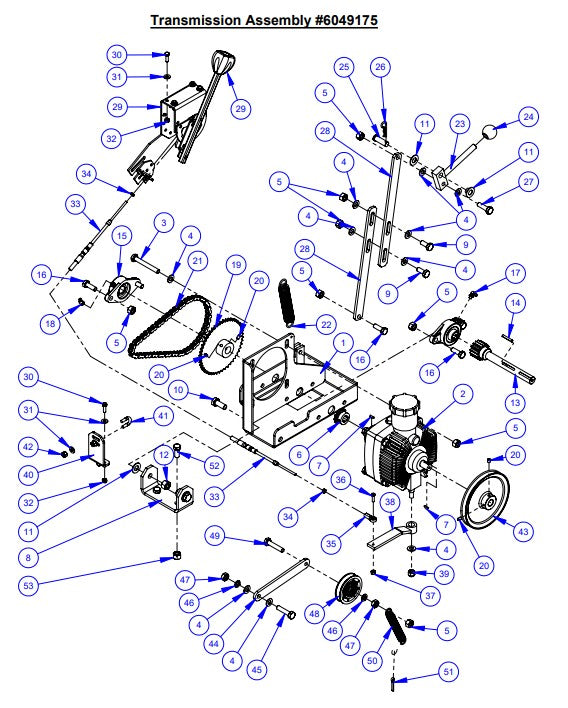

CC2500 Gasoline Transmission Assembly Parts By Diamond Products

CC2500 Gasoline Transmission Assembly Parts By Diamond Products

  • CC2500 Gasoline Transmission Assembly Parts By Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Transmission Platform Weldment 6047923 for CC2500 Saw by Core Cut Diamond Products
$158.40
2
Eaton 6 Transmission 2600015 for CC2500 Saw by Core Cut Diamond Products
$1,834.47
3
Cap Screw, Hex Hd., M10-1.5 x 80mm 2900319 for CC2500 Saw by Core Cut Diamond Products
$4.99
4
2900014 3/8" SAE Flat Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
Lock Nut, M10-1.5 Nylon Insert 2900304 for CC2500 Saw by Core Cut Diamond Products
$2.99
6
SProcket, 12 Teeth W/ 1/4 Setscrew 2500017 for CC2500 Saw by Core Cut Diamond Products
$16.79
7
Woodruff Key #404, 1/8" W x 1/2" Dia. 2900068 for CC2500 Saw by Core Cut Diamond Products
$3.99
8
Transmission Pivot Support 6047924 for CC2500 Saw by Core Cut Diamond Products
$38.48
9
Cap Screw, Hex Hd., M10 x 25mm 2900333 for CC2500 Saw by Core Cut Diamond Products
$3.99
10
Cap Screw, Hex Hd., M12-1.75 x 30mm 2900330 for CC2500 Saw by Core Cut Diamond Products
$3.99
11
1/2 FLAT WASHER 2900058 for CC2500 Saw by Core Cut Diamond Products
$3.99
12
Lock Nut, M12-1.75 Nylon Insert 2900327 for CC2500 Saw by Core Cut Diamond Products
$2.99
13
Transmission Jackshaft 15T 6010080 for CC2500 Saw by Core Cut Diamond Products
$209.88
14
Key, 3/16" Sq. x 1-1/4" 6048229 for CC2500 Saw by Core Cut Diamond Products
$2.99
15
Flange Mt. Bearing 3/4" 2500011 for CC2500 Saw by Core Cut Diamond Products
$46.50
16
Cap Screw, Hex Hd., M10-1.5 x 30mm 2900223 for CC2500 Saw by Core Cut Diamond Products
$2.99
17
Grease Fitting, 1/4-28 x 90 Degree 2900061 for CC2500 Saw by Core Cut Diamond Products
$4.99
18
Grease Fitting, 1/4" NPT x 45 degree 2900184 for CC2500 Saw by Core Cut Diamond Products
$4.99
19
Sprocket, 48 Teeth w/ Setscrews 2500018 for CC2500 Saw by Core Cut Diamond Products
$52.00
20
Set Screw, Soc. Hd., 1/4-20 x 3/8" 2900101 for CC2500 Saw by Core Cut Diamond Products
$4.96
21
Chain, #35 x 63 Pitch 6048232 for CC2500 Saw by Core Cut Diamond Products
$31.30
22
Spring, 1" Dia. x 6" 2500780 for CC2500 Saw by Core Cut Diamond Products
$27.00
23
Engagement Lever 6048057 for CC2500 Saw by Core Cut Diamond Products
$37.35
24
Knob, 1/2-20 x 1-3/8" Dia. 2400007 for CC2500 Saw by Core Cut Diamond Products
$20.16
25
2900277 Clevis Pin 1/2" Dia. x 1-1/2" 2900277 for CC2500 Saw by Core Cut Diamond Products
$4.99
26
Hairpin Cotter, 1/8" x 1/2" to 3/4" 2900276 for CC2500 Saw by Core Cut Diamond Products
$2.99
27
Cap Screw, Hex Hd., M10-1.5 x 35mm 2900315 for CC2500 Saw by Core Cut Diamond Products
$3.99
28
Linkage 6047925 for CC2500 Saw by Core Cut Diamond Products
$22.50
29
Quadco Speed Control 2500805 for CC2500 Saw by Core Cut Diamond Products
$637.56
30
Cap Screw, Hex Hd., M6-1.0 x 20mm 2900310 for CC2500 Saw by Core Cut Diamond Products
$2.99
31
Flat Washer, 1/4" SAE 2900009 for CC2500 Saw by Core Cut Diamond Products
$2.99
32
Lock Nut, M6 Nylon 2900302 for CC2500 Saw by Core Cut Diamond Products
$3.95
33
Speed Control Cable 2500806 for CC2500 Saw by Core Cut Diamond Products
$145.50
34
Hex Nut, #10-32 2900188 for CC2500 Saw by Core Cut Diamond Products
$2.99
35
Rod End, #10-32 Female 2500791 for CC2500 Saw by Core Cut Diamond Products
$21.52
36
Machine Screw, Hex Hd., #10-24 x 3/4" 2900015 for CC2500 Saw by Core Cut Diamond Products
$2.99
37
Lock Nut, #10-24 Nylon 2900017 for CC2500 Saw by Core Cut Diamond Products
$2.99
38
Shift Lever 6047926 for CC2500 Saw by Core Cut Diamond Products
$43.94
39
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
40
Cable Control Bracket 6047943 for CC2500 Saw by Core Cut Diamond Products
$29.09
41
Clamp, 3/16" Cable 2500818 for CC2500 Saw by Core Cut Diamond Products
$11.82
42
1/4-20 Lock Nut Nylon 2900010 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$2.99
43
Pulley, 6" 2500016 for CC2500 Saw by Core Cut Diamond Products
$48.42
45
2900317 Hex Cap Screw M10 1.5 x 45mm 2900317 for CC1800 XL and CC2500 Saw by Core Cut Diamond Products
$4.99
46
Lock Washer, M10 Split 2900321 for CC2500 Saw by Core Cut Diamond Products
$2.99
47
Hex Nut, M10-1.5 2900325 for CC2500 Saw by Core Cut Diamond Products
$2.99
48
Idler Pulley 3" 2500074 for CC2500 Saw by Core Cut Diamond Products
$50.50
49
Cap Screw, Hex Hd., M10-1.5 x 50mm, Full Thd. 2900337 for CC2500 Saw by Core Cut Diamond Products
$4.99
51
Cotter Pin, 3/16" x 1" 2900055 for CC2500 Saw by Core Cut Diamond Products
$2.99
52
Cap Screw, Hex Hd., 7/16-14 x 1" 2900407 for CC2500 Saw by Core Cut Diamond Products
$3.99
53
Lock Nut, 7/16-14 Nylon 2900045 for CC2500 Saw by Core Cut Diamond Products
$2.99
44
Call for Price call for price call for price
50
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
