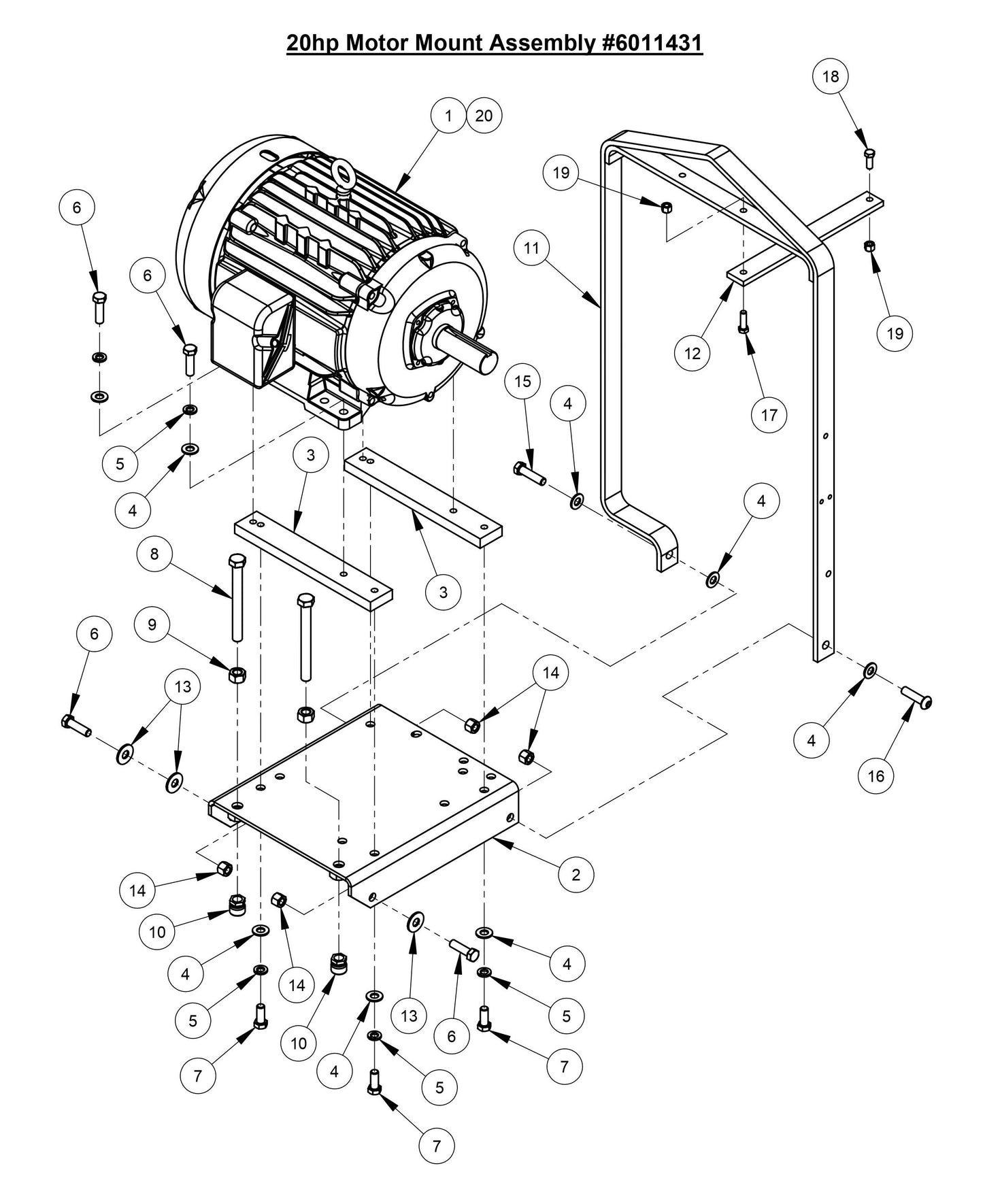

CC3520E/CC3530E 20HP Motor Mount Assembly parts

CC3520E/CC3530E 20HP Motor Mount Assembly parts

  • CC3500E (20HP Motor Mount Assembly)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600118 Motor, 20hp Baldor for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$5,755.86
2
6011005 Engine Base Weldment for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$277.20
3
6011045 Motor Spacer for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$64.59
4
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
5
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900139 Cap Screw, Hex Hd., 1/2-13 x 1- 3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
7
2900025 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
8
2900104 Tap Bolt, Hex Hd., 5/8-11 x 6" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$14.02
9
2900112 Hex Nut, 5/8-11 for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$3.99
10
2900446 Swivel Pad Nut, 5/8-11 for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$30.86
11
6011022 Frame Lift for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$638.55
12
6010013 Frame Lift Brace for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$32.25
13
2900127 1/2" USS Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
14
2900026 Lock Nut 1/2-13 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
2900106 Cap Screw, Hex Hd., 1/2-13 x 2" for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
16
2900288 Cap Screw, Button Hd., 1/2-13 x 2" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$8.65
17
2900013 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
18
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
19
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
20
2600443 Motor, 20hp Baldor (575 Volt) for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$5,043.06
