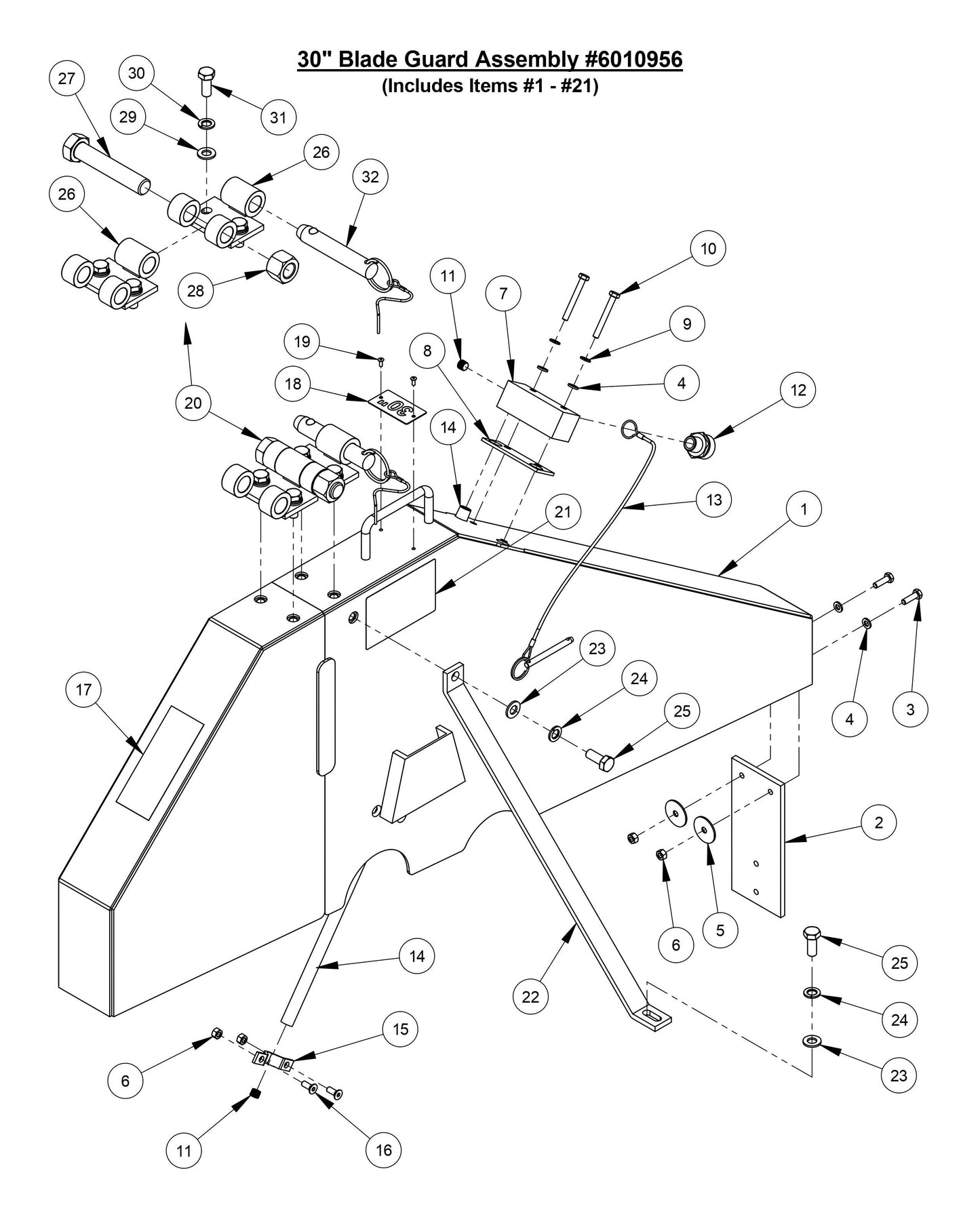

CC3520E/CC3530E 30'' Blade Guard Assembly Parts

CC3520E/CC3530E 30'' Blade Guard Assembly Parts

Skip to product information
1 of 1
Ref. Details
1
6010957 30" Blade Guard Front & Rear Only for CC3500J Concrete Saw Core Cut by Diamond Products
$744.48
2
6010081 Splash Flap for CC3500J Concrete Saw Core Cut by Diamond Products
$10.08
3
2900310 Cap Screw, Hex Hd., M6-1.0 x 20mm for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
4
2901494 Flat Washer M6 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900083 Fender Washer 1/4" x 1-1/4" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900302 Lock Nut, M6-1.0 Nylon Insert for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
7
6010261 Water Manifold for CC3500J Concrete Saw Core Cut by Diamond Products
$32.81
8
2500830 Water Manifold Gasket for CC3500J Concrete Saw Core Cut by Diamond Products
$6.38
9
2900765 Lock Washer M6 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2901355 Cap Screw, Hex Hd., M6-1.0 x 50mm for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
11
3200001 Plug 1/8" NPT for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.99
12
3200002 Fitting 3/8" M. Pipe to 3/4" M. Garden for CC5555-3 Concrete Saw Core Cut by Diamond Products
$22.32
13
2900279 Lanyard with Lock Pin for CC3500J Concrete Saw Core Cut by Diamond Products
$21.52
14
6010087 Water Tube for 30" Guard for CC3500J Concrete Saw Core Cut by Diamond Products
$48.00
15
6048155 Water Tube Clamp for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
16
2900308 Cap Screw, Flat Hd., M6-1.0 x 16mm for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
17
1800001 Warning Label for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
18
1801369G Blade Guard Size Tag for CC3500J Concrete Saw Core Cut by Diamond Products
$20.00
19
2900287 Rivet, 1/8" Dia. for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$2.99
20
6010873 Universal Hinge Assembly for CC3500J Concrete Saw Core Cut by Diamond Products
$120.78
21
1802090 Label Wedge Locking Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$6.99
22
6011033 Blade Guard Brace for CC3535 Concrete Saw Core Cut by Diamond Products
$49.63
23
2901356 Flat Washer M10 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
29
2901356 Flat Washer M10 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
24
2900321 Lock Washer M10 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
30
2900321 Lock Washer M10 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
25
2900333 Cap Screw, Hex Hd., M10-1.5 x 25mm for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
31
2900333 Cap Screw, Hex Hd., M10-1.5 x 25mm for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
26
6010871 Hinge Weldment, Universal for CC3500J Concrete Saw Core Cut by Diamond Products
$52.31
27
2900479 Cap Screw, Hex Hd., 3/4-10 x 4" for CC3500J Concrete Saw Core Cut by Diamond Products
$12.00
28
2900467 3/4-10 Nylon-Insert Hex Locknut for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$4.99
32
2503824 Detent Pin, 3/4" x 3" Grip for CC3500J Concrete Saw Core Cut by Diamond Products
$27.05
