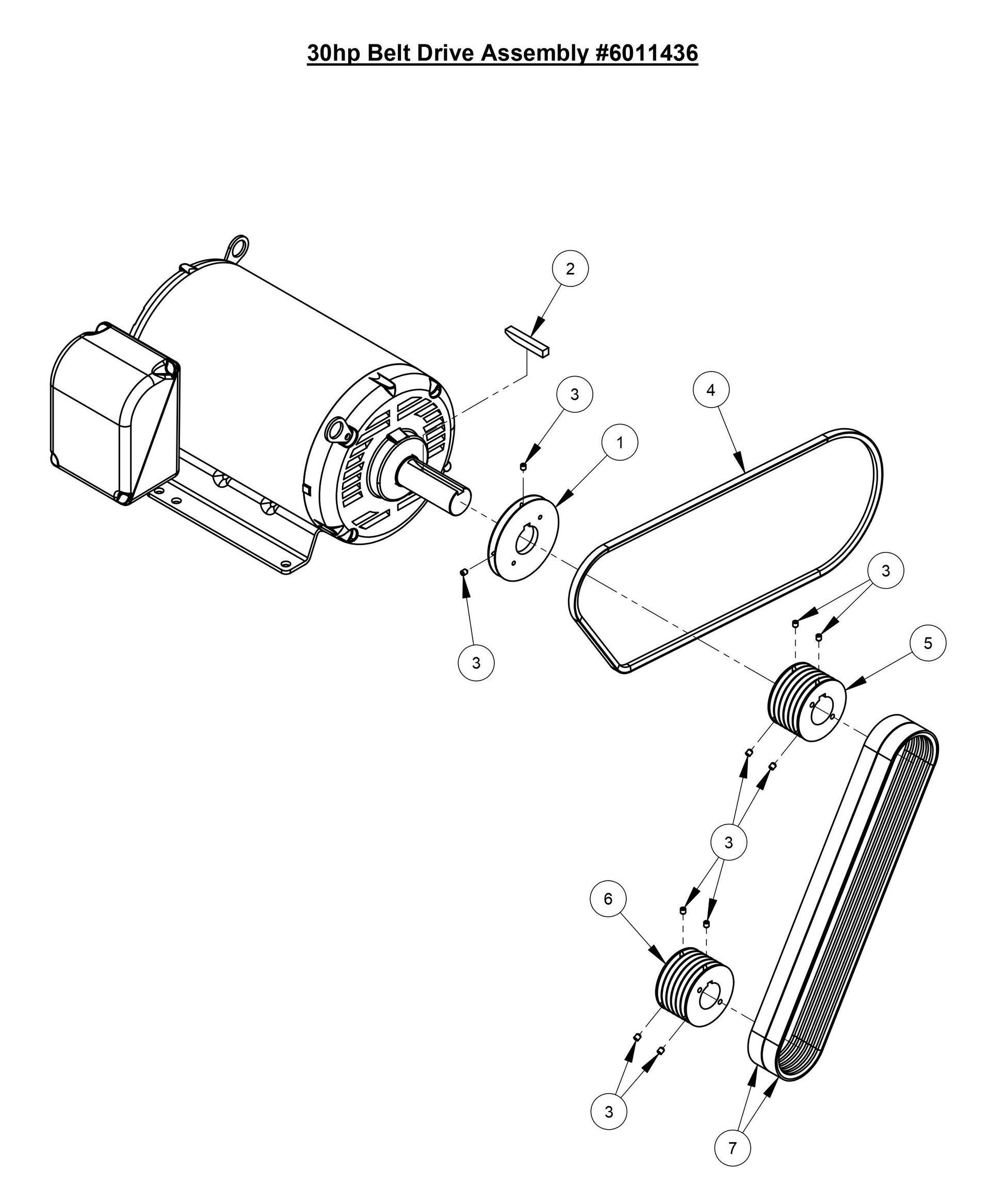

CC3520E/CC3530E 30HP Belt Drive Assembly Parts 30'' Blade Drive

CC3520E/CC3530E 30HP Belt Drive Assembly Parts 30'' Blade Drive

  • CC3500E (30HP Belt Drive Assembly 30'' Blade Drive)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6012019 Pulley, Accessory Drive for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$154.44
2
6011095 Key, 1/2" Sq. x 3-1/4" Bevel End for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$23.94
3
2900142 Set Screw, Soc. Hd., 5/16-18 x 3/8" for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
4
6011437 Link Belt for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$205.92
5
6012024 Sheave, 4.12" x 6 Groove x 1-7/8" Bore for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$311.85
6
6012052 Sheave, 4.75" x 6 Groove w/Bushing for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$307.89
6
2500367 Sheave, 4.75" x 6 Groove Taper Style for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$247.50
6
2500454 Taper Bushing, 1-3/4" w/Setscrews for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$87.16
7
2500511 Banded Belt, 3/3VX500 - 3 Strand for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$146.52
View full details
