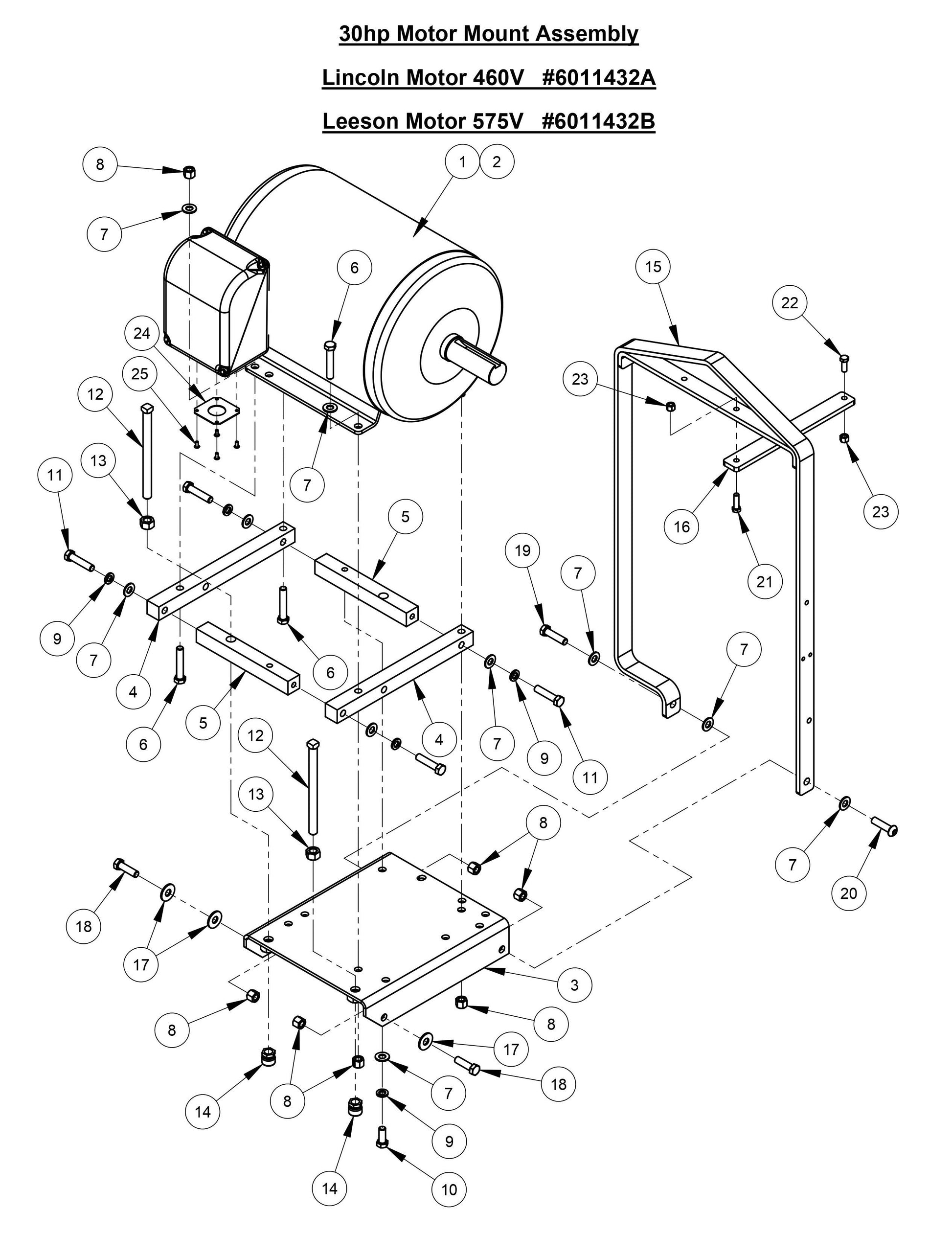

CC3520E/CC3530E 30HP Motor Mount, Lincoln Motor 460V, Leeson Motor 575V

CC3520E/CC3530E 30HP Motor Mount, Lincoln Motor 460V, Leeson Motor 575V

  • CC3500E (30HP Motor Mount Assembly)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600182 Motor, 30hp Lincoln for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$7,593.60
2
2601032 Motor, 30hp Leeson for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
3
6011005 Engine Base Weldment for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$277.20
4
6011081 Motor Spacer for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$93.16
5
6011082 Motor Connect Spacer for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$65.05
6
2900105 Cap Screw, Hex Hd., 1/2-13 x 2-3/4" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$8.82
7
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
8
2900026 Lock Nut 1/2-13 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900025 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
11
2900192 Cap Screw, Hex Hd., 1/2-13 x 2-1/4" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$4.99
12
2900385 Set Screw, Sq. Hd., 5/8-11 x 8" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$22.60
13
2900112 Hex Nut, 5/8-11 for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$3.99
14
2900446 Swivel Pad Nut, 5/8-11 for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$30.86
15
6011022 Frame Lift for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$638.55
16
6010013 Frame Lift Brace for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$32.25
17
2900127 1/2" USS Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
18
2900139 Cap Screw, Hex Hd., 1/2-13 x 1- 3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
19
2900106 Cap Screw, Hex Hd., 1/2-13 x 2" for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
20
2900288 Cap Screw, Button Hd., 1/2-13 x 2" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$8.65
21
2900013 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
22
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
23
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
24
2500676 Motor Cord Adapter Plate for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$12.91
25
2900201 Rivet 3/16" Dia. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
