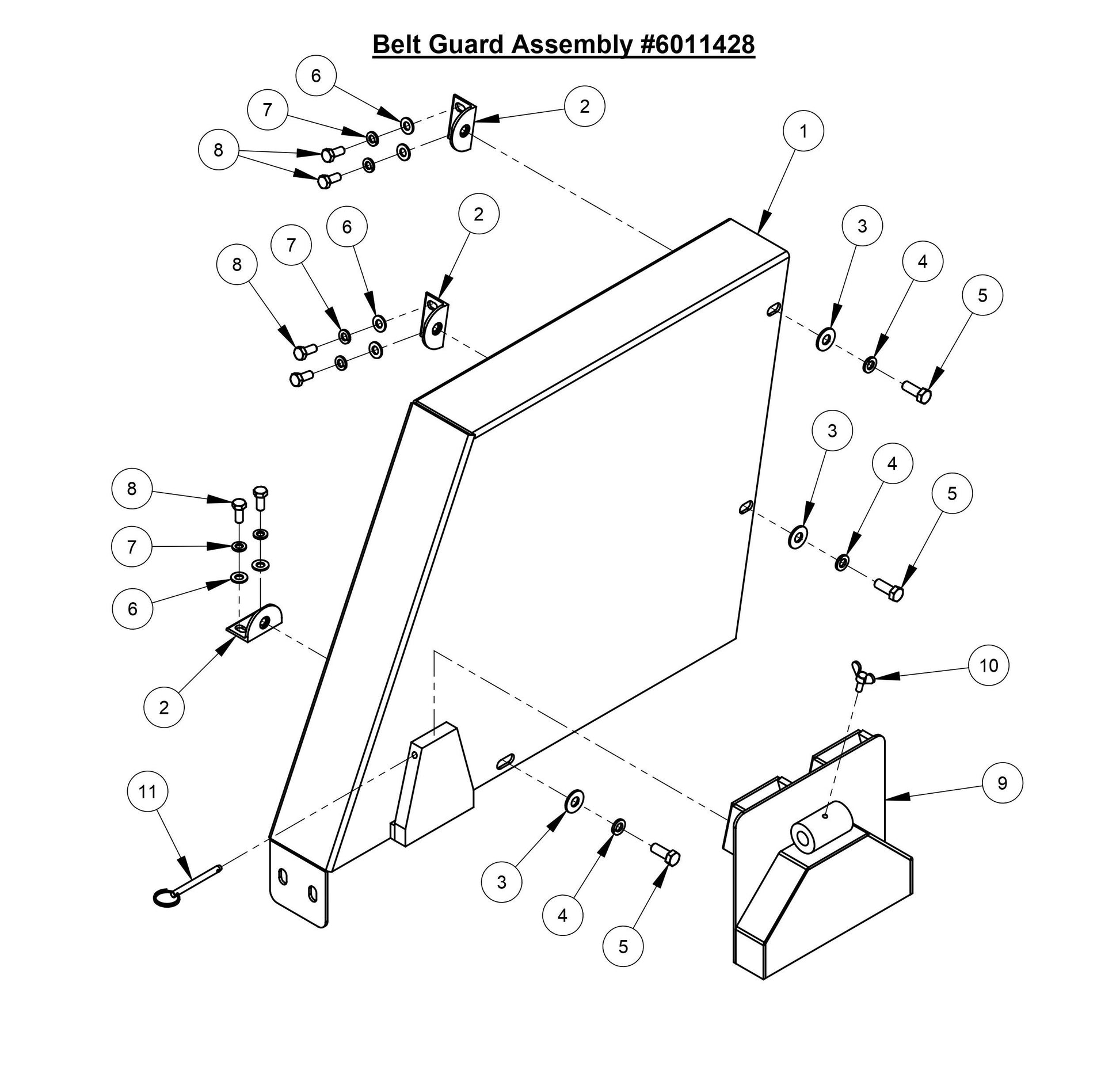

CC3520E/CC3530E Belt Guard Assembly Parts

CC3520E/CC3530E Belt Guard Assembly Parts

Skip to product information
1 of 1
Ref. Details
1
6011013A Belt Guard Weldment for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$305.91
2
6010558 Guard Mounting Tab, 3/8-16 for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$20.51
3
2900473 Flat Washer 3/8" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900019 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
6010555 Shaft/Flange Guard (Narrow) for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$246.51
10
2900307 Wing Screw, M6 x 16mm for CC1113-XL Concrete Saw Core Cut by Diamond Products
$7.43
11
2900156 Lock Pin with Ring for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$11.40
View full details
