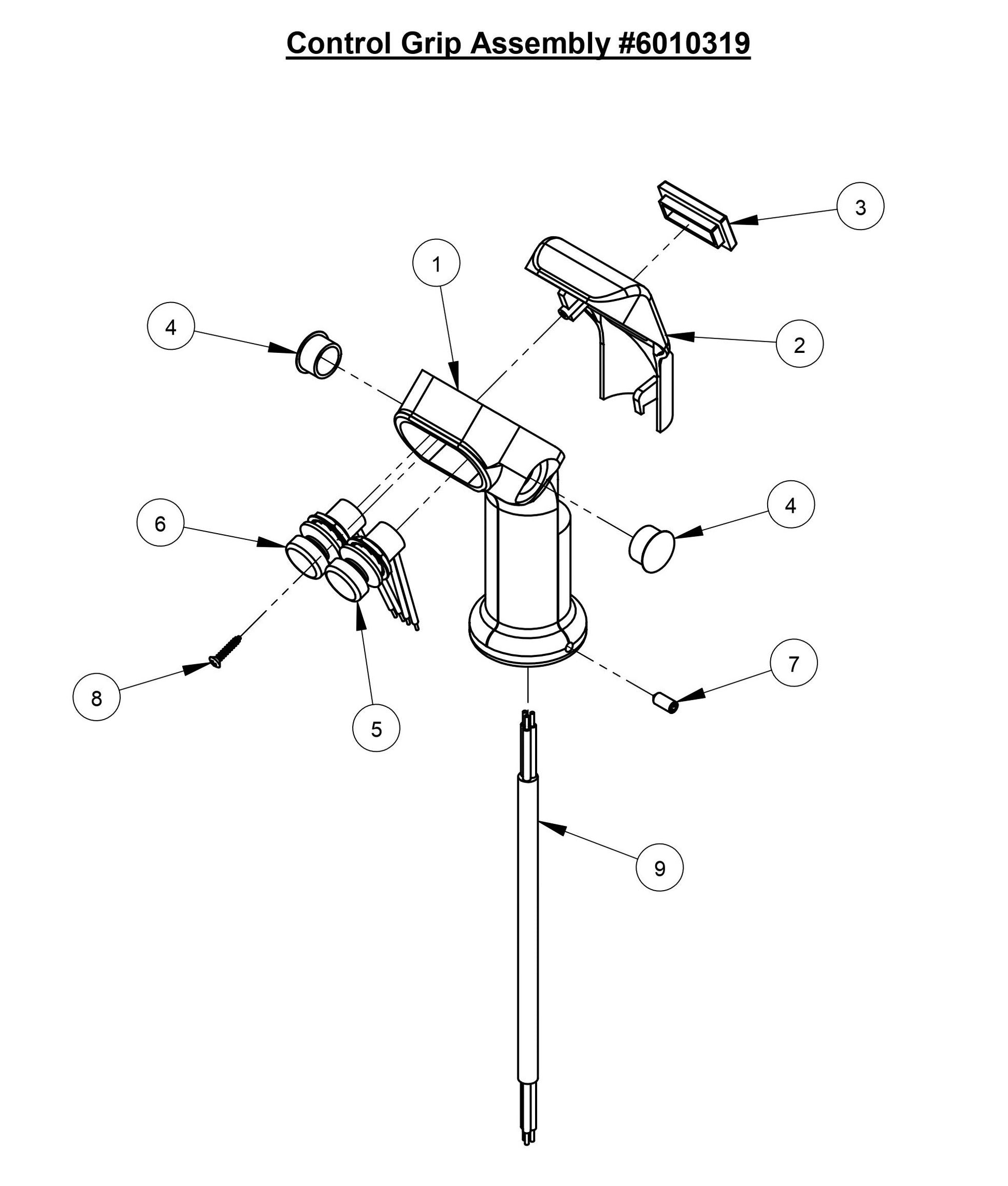

CC3520E/CC3530E Control Grip Assembly Parts

CC3520E/CC3530E Control Grip Assembly Parts

  • CC3500E (Control Grip Assembly)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2501280 Control Grip Body for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$30.75
2
2501281 Control Grip Cover for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$18.39
4
2500694 Plug, 5/8" Hole for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$2.99
5
2800372 Pushbutton Switch (B&G) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$81.78
6
2800373 Pushbutton Switch (B&W) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$86.09
7
2900453 Set Screw, Soc. Hd., M5 x 12mm for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$2.99
8
2900452 Machine Screw, Oval Hd., #4 x 5/8" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$2.99
9
2800393 Harness, Hydraulic Pump for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$41.97
3
2500644 Plug, Rectangular for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$6.99
View full details
