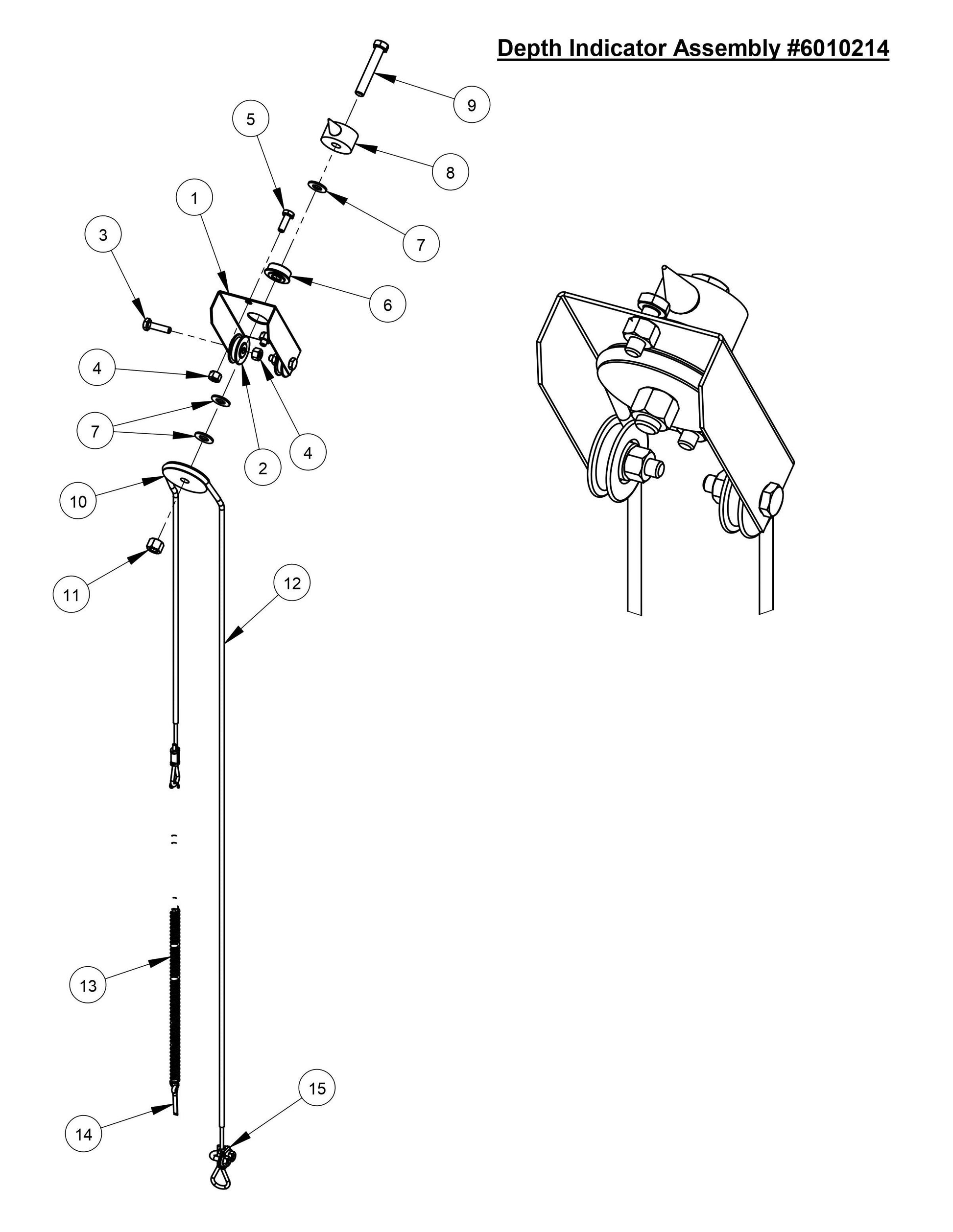

CC3520E/CC3530E Depth Indicator Assembly Parts

CC3520E/CC3530E Depth Indicator Assembly Parts

  • CC3500E (Depth Indicator Assembly)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010092 Depth Indicator Mount Bracket for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$18.32
2
2500155 Cable Pulley, 1-1/4" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$23.71
3
2900008 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900144 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2500145 Flange Bearing, 3/8" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$49.36
7
2900014 Flat Washer 3/8" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
6010091 Depth Indicator Pointer for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$53.95
9
2900079 Cap Screw, Hex Hd., 3/8-16 x 2-1/4" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
10
6010093 Cable Pulley, 2" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$37.61
11
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
6010094 Depth Indicator Cable with Crimp, 48" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$44.09
13
2500196 Spring, 3/8" x 15" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$16.14
14
2900055 Cotter Pin, 3/16" x 1" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$2.99
15
2500214 Cable Clamp for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$3.99
