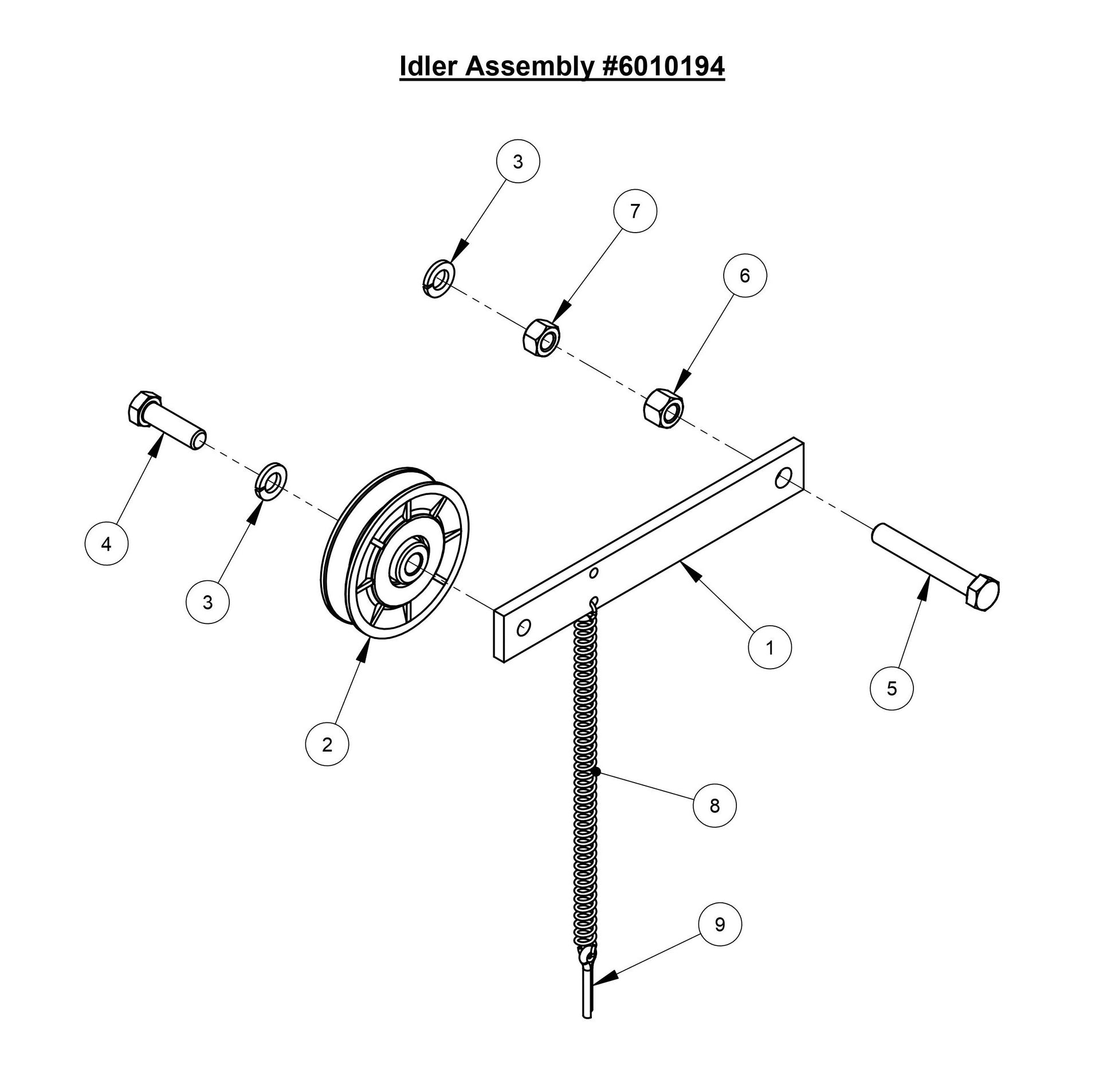

CC3520E/CC3530E Idler Assembly Parts

CC3520E/CC3530E Idler Assembly Parts

  • CC3500E (Idler Assembly)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6048218 Idler Arm for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$25.16
2
2500074 Idler Pulley 3" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$49.50
3
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900013 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900521 Tap Bolt, Hex Hd., 3/8-16 x 2-1/2" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$3.99
6
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900033 Hex Nut 3/8-16 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2500195 Spring, 3/8" x 7-3/4" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$16.01
9
2900055 Cotter Pin, 3/16" x 1" for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$2.99
View full details
