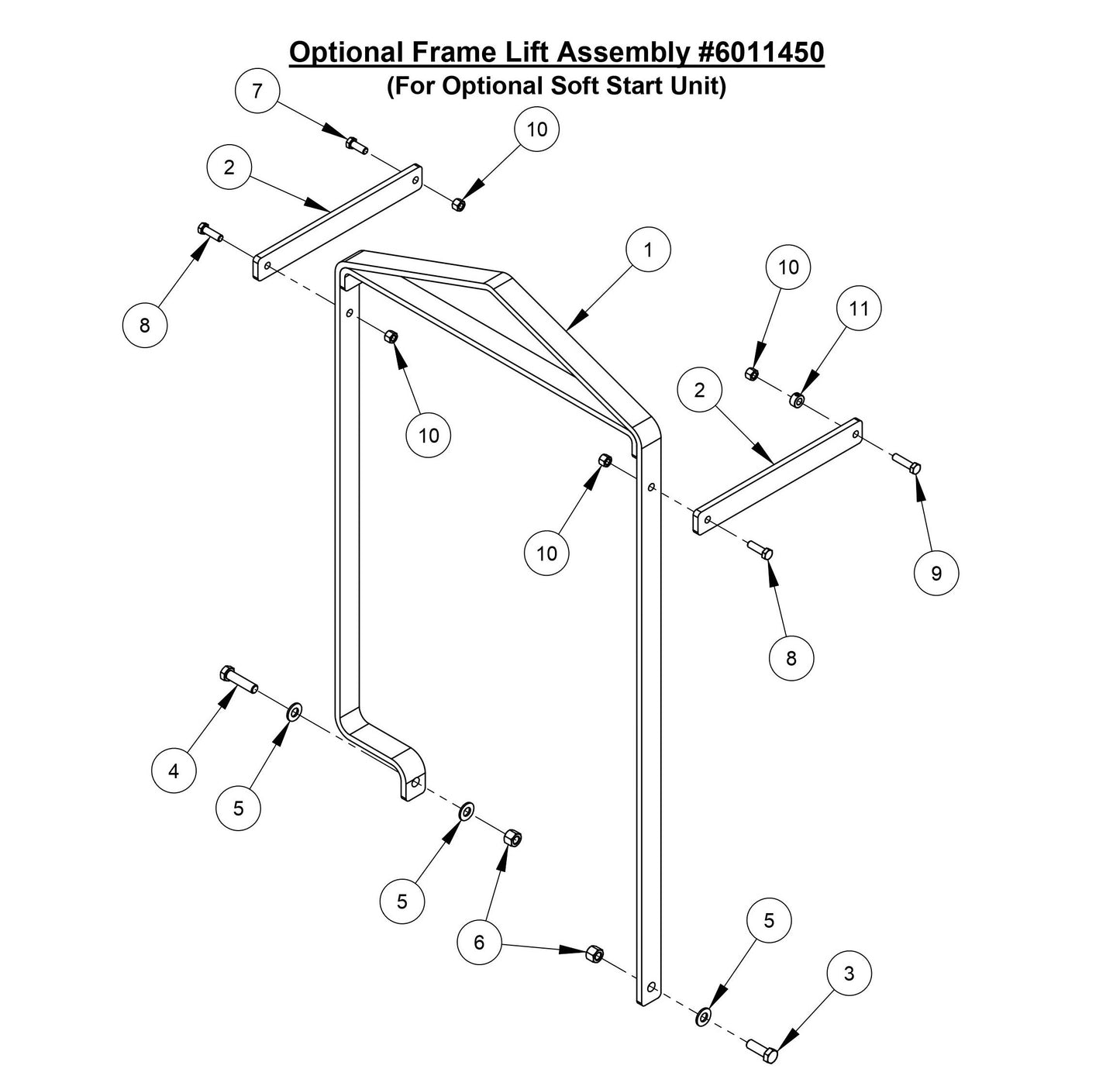

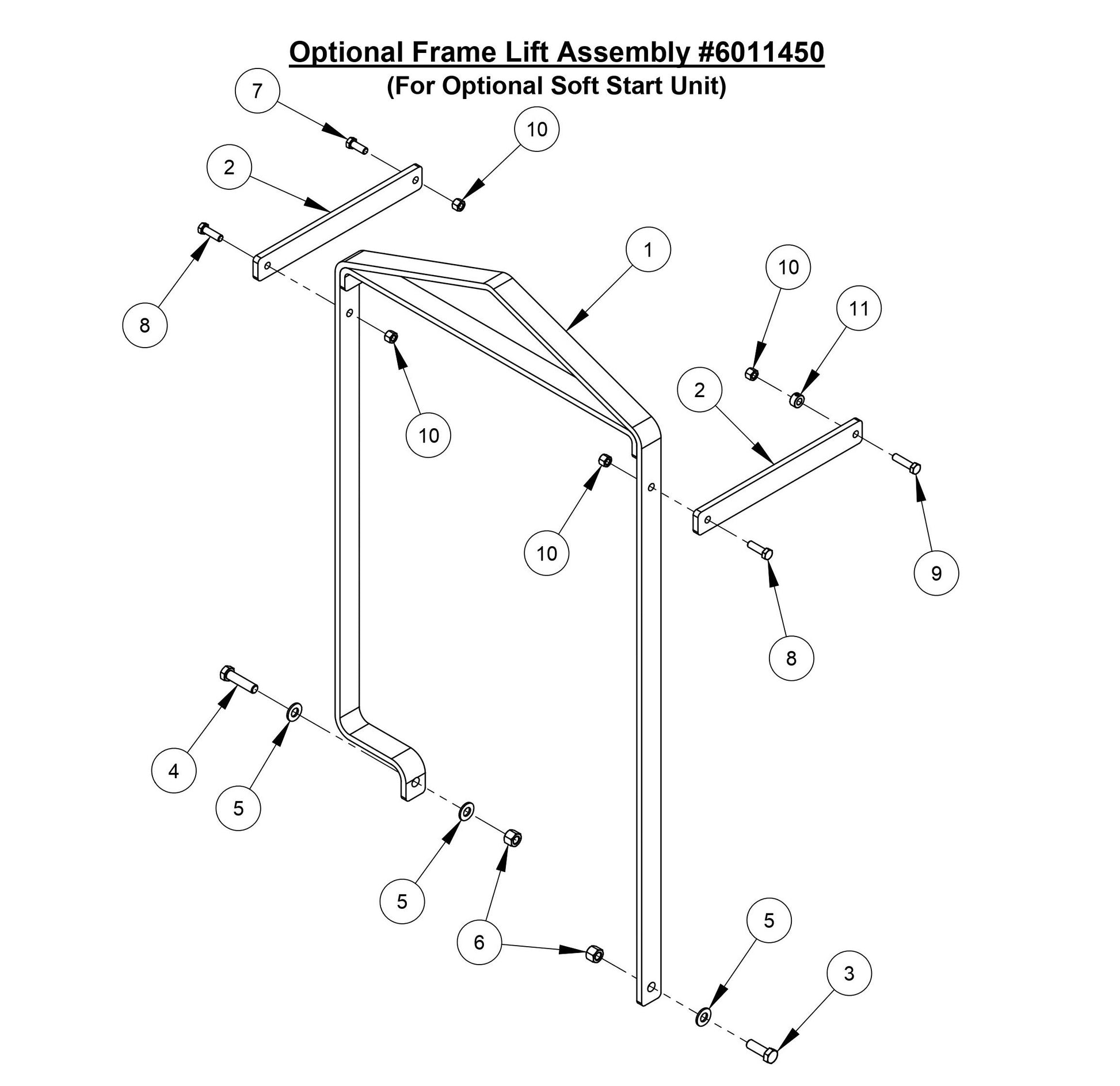

CC3520E/CC3530E Optional Frame Lift Assembly Parts

CC3520E/CC3530E Optional Frame Lift Assembly Parts

  • CC3500E (Optional Frame Lift Assembly)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
6010013 Frame Lift Brace for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$32.25
3
2900499 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
4
2900106 Cap Screw, Hex Hd., 1/2-13 x 2" for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
5
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
6
2900026 Lock Nut 1/2-13 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900013 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900029 Cap Screw, Hex Hd., 3/8-16 x 1-1/2" for CC1000 Concrete Saw Core Cut by Diamond Products
$3.99
10
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2501603 Set Collar 3/8" with Set Screw for CC5555-3 Concrete Saw Core Cut by Diamond Products
$9.50
1
6011447 Frame Lift fits CC3500E by Core Cut Diamond Products
Call for Price call for price call for price
