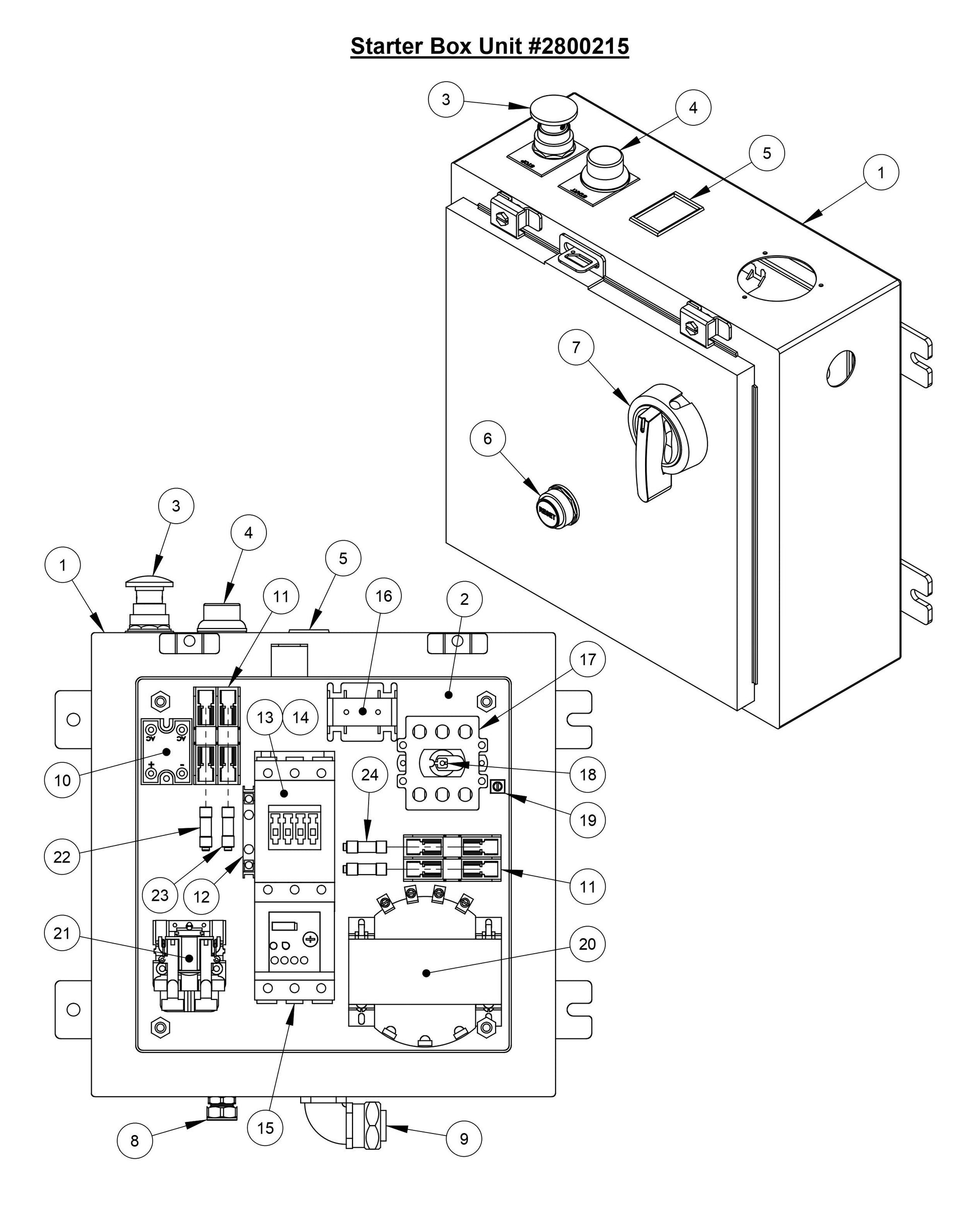

CC3520E/CC3530E Starter Box Unit Parts

CC3520E/CC3530E Starter Box Unit Parts

  • CC3500E (Starter Box Unit)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
2800249 Subpanel for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$194.04
3
6011329 Stop Button Assembly for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$306.90
3
2800599 Stop Button Body & Cap for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$259.38
3
2800200 Contact Block (N.C.) for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$66.01
3
1800922 Stop Label for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$26.99
4
6011097 Start Button Assembly for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$212.85
4
2701390 Start Button Body for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$101.70
4
2701392 Contact Block (N.O.) for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$68.87
4
2800317 Green Button Cap for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$3.46
4
2800222 Clear Protective Boot for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$97.93
4
1800923 Start Label for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
5
2800224 Battery Charge Ammeter for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$91.47
6
2800245 Reset Button for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$152.46
7
2707338 Disconnect Handle for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$104.38
8
2800552 Connector, 1/2" Cord for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$26.91
9
2800312 Connector, 1" Sealtite Elbow for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$59.24
10
2701274 Rectifier Bridge for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$264.33
11
2800299 Fuse Holder, 30A-600V Dual for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$73.17
12
2800400 Auxiliary Contact (N.O.) for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$107.00
13
2800401 Motor Contactor, Siemens for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
14
2800402 Coil, 24V-AC for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$286.80
15
2800403 Overload Relay, 25-100A for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
16
2800248 Current Transformer for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$121.20
17
2707339 Disconnect Block for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$406.89
18
2707337 Disconnect Shaft for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$26.90
19
2800315 Grounding Lug for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$9.91
20
2701299 Transformer, 500VA for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$673.20
21
2701295 Power Relay, 12V-DC for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$169.29
22
2701066 Fuse, ATQR 10A for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$93.05
23
2701307 Fuse, ATMR 25A for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$78.27
24
2701273 Fuse, ATQR 4A for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$88.97
1
2800240 Enclosure for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$1,665.18
