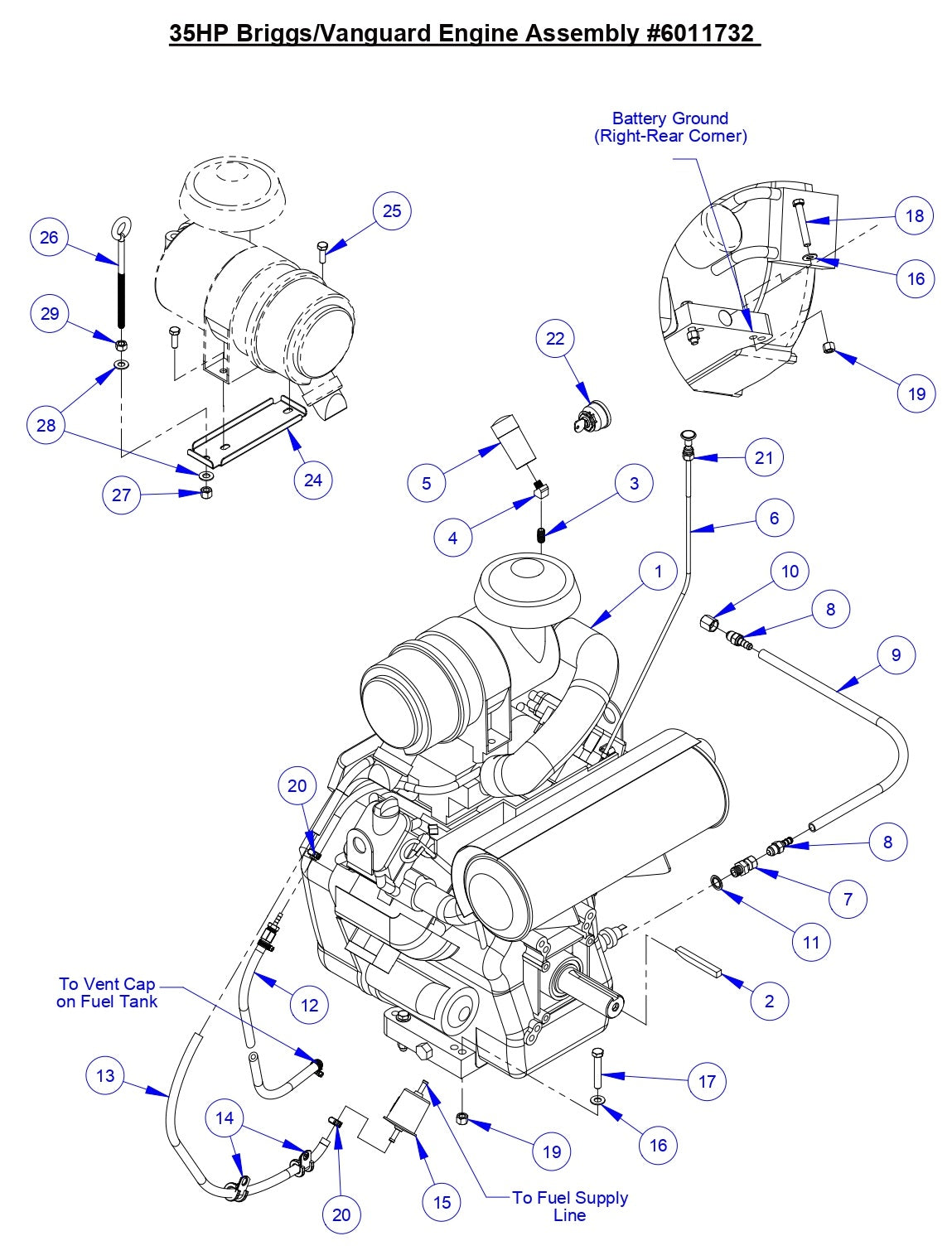

CC3500J 35Hp Briggs/Vanguard Engine Assembly Parts

CC3500J 35Hp Briggs/Vanguard Engine Assembly Parts

  • CC3500J 35Hp Briggs/Vanguard Engine Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products 35HP BRIGGS VANGUARD W/ES 2600635
$4,315.41
2
6011027 Key, 3/8" Sq. x 3-1/4" Bevel End for CC3500J Concrete Saw Core Cut by Diamond Products
$18.15
3
3200117 Close Nipple, 1/8" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
4
3200099 Street Elbow, 1/8" NPT x 45 Deg. for CC3500J Concrete Saw Core Cut by Diamond Products
$10.06
5
2500423 Restriction Indicator for CC3500J Concrete Saw Core Cut by Diamond Products
$66.72
6
2503832 Choke Cable for CC3500J Concrete Saw Core Cut by Diamond Products
$50.14
7
3201890 Fitting, M14 x 1.5 O-Ring to 3/8" F. JIC Swivel for CC3500J Concrete Saw Core Cut by Diamond Products
$67.45
8
3201891 Fitting, 3/8" M. JIC to 3/8" Hose Barb for CC3500J Concrete Saw Core Cut by Diamond Products
$16.77
9
6011736 Oil Drain Hose, 3/8" I.D. x 22" for CC3500J Concrete Saw Core Cut by Diamond Products
$17.23
10
3201496 Cap, 3/8" JIC for CC3500J Concrete Saw Core Cut by Diamond Products
$6.99
11
2901319 Bonded Sealing Washer, M14 for CC3500J Concrete Saw Core Cut by Diamond Products
$10.42
12
6012203 Hose Assy.,1/4 - 3/16 Barb, 61" for CC3500J Concrete Saw Core Cut by Diamond Products
$71.25
12
3200231 Fitting, 1/4 FPT to 1/4 Hose Barb for CC3500J Concrete Saw Core Cut by Diamond Products
$6.58
12
3200210 Fitting, 1/4" M. Pipe to 3/16" Hose Barb for CC3500J Concrete Saw Core Cut by Diamond Products
$7.04
12
3200062 Hose Clamp #4 for CC3500J Concrete Saw Core Cut by Diamond Products
$7.33
20
3200062 Hose Clamp #4 for CC3500J Concrete Saw Core Cut by Diamond Products
$7.33
13
6011749 Hose, 1/4" I.D. x 33" Long for CC3500J Concrete Saw Core Cut by Diamond Products
$31.30
14
2501434 Hose Clamp, 5/8" x 3/4" Wide for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
15
2500201 Filter, Gasoline Fuel for CC3500J Concrete Saw Core Cut by Diamond Products
$16.14
16
2900014 Flat Washer, 3/8" SAE for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
28
2900014 Flat Washer, 3/8" SAE for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
17
2900079 Cap Screw, Hex Hd., 3/8-16 x 2-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
18
2900596 Cap Screw, Hex Hd., 3/8-16 x 2-1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
19
2900018 Locknut, 3/8-16, Nylon for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
27
2900018 Locknut, 3/8-16, Nylon for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
21
2900148 Hex Nut, 3/8-24 for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
22
2702622 Ignition Switch w/ Key (Briggs-Vanguard) for CC3500J Concrete Saw Core Cut by Diamond Products
$57.21
23
6049053 Remote Wire Harness Extension (Not Shown) for CC3500J Concrete Saw Core Cut by Diamond Products
$148.50
24
6043610 Eyebolt Mount, 35 HP Briggs Vanguard for CC3500J Concrete Saw Core Cut by Diamond Products
$65.00
25
2900360 Cap Screw, Hex Hd., M8-1.25 x 25mm for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
26
2900602 Eye Bolt, 3/8-16 x 6" for CC3500J Concrete Saw Core Cut by Diamond Products
$11.82
29
2900033 Hex Nut, 3/8-16 for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
