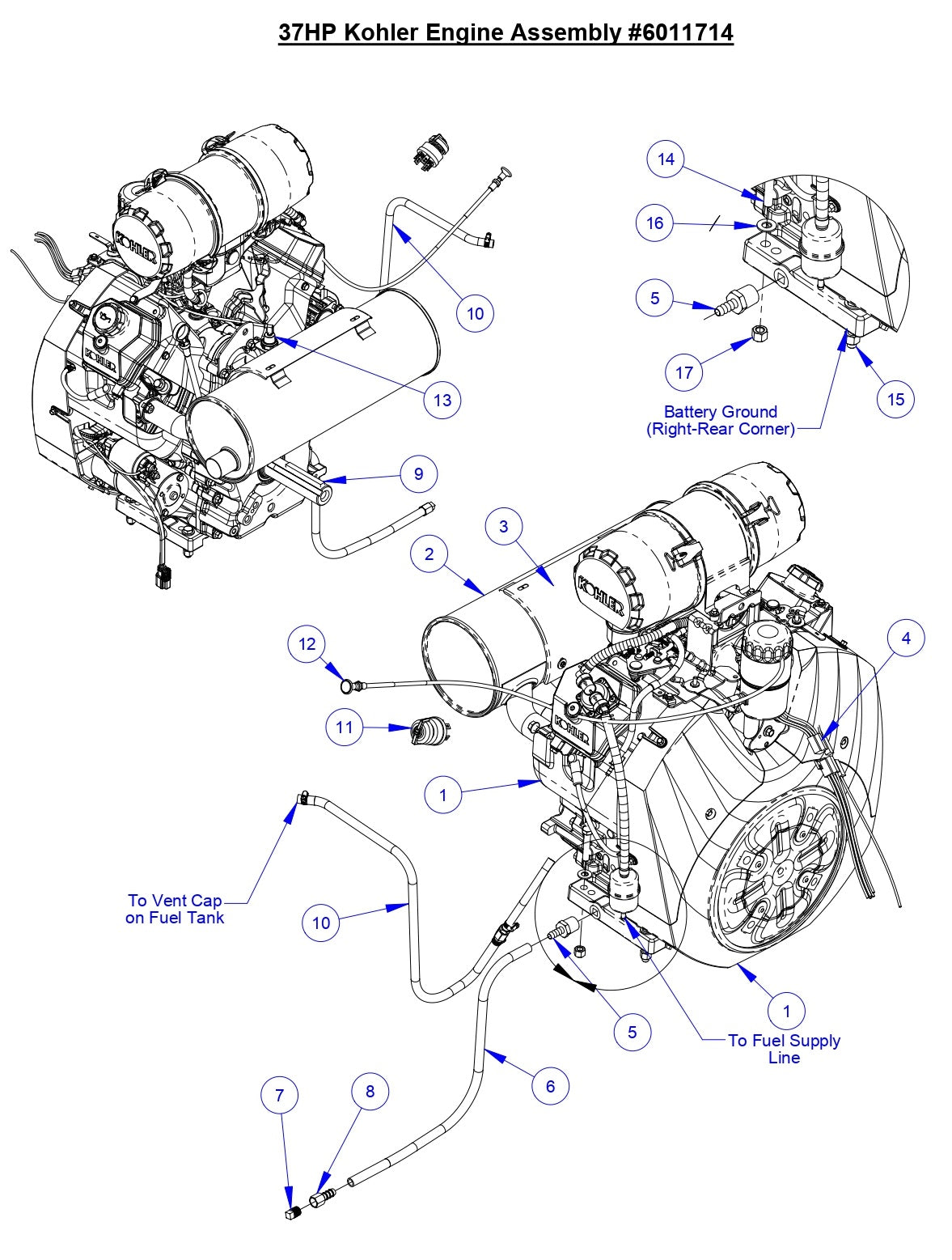

CC3500J 37Hp Kohler Engine Assembly Parts

CC3500J 37Hp Kohler Engine Assembly Parts

  • CC3500J 37Hp Kohler Engine Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products 37HP KOHLER COMMAND PRO GAS ENGINE WITH HORIZONTAL CRANKSHAFT 55.3 TORQUE PA-CH1000-3000 2600606
$8,307.09
2
2705825 Muffler, Kohler 37HP Engine for CC3500J Concrete Saw Core Cut by Diamond Products
$518.76
3
2705826 Heat Shield, Kohler 37HP Engine for CC3500J Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
4
2705828 Engine Wiring Harness for CC3500J Concrete Saw Core Cut by Diamond Products
$168.30
5
3200234 Fitting, 1/2" MPT to 3/8" Hose Barb for CC3500J Concrete Saw Core Cut by Diamond Products
$15.00
6
6011736 Oil Drain Hose, 3/8" I.D. x 22" for CC3500J Concrete Saw Core Cut by Diamond Products
$17.23
7
3200206 Pipe Plug, 1/4" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$6.99
8
3200031 Fitting, 1/4" F. Pipe to 3/8" Hose Barb for CC3500J Concrete Saw Core Cut by Diamond Products
$9.41
9
6011027 Key, 3/8" Sq. x 3-1/4" Bevel End for CC3500J Concrete Saw Core Cut by Diamond Products
$18.15
10
6012195 Hose Assy., 1/4" - 3/16" x 29" for CC3500J Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
10
3200231 Fitting, 1/4 FPT to 1/4 Hose Barb for CC3500J Concrete Saw Core Cut by Diamond Products
$6.58
10
3200210 Fitting, 1/4" M. Pipe to 3/16" Hose Barb for CC3500J Concrete Saw Core Cut by Diamond Products
$7.04
10
3200062 Hose Clamp #4 for CC3500J Concrete Saw Core Cut by Diamond Products
$7.33
11
2705827 Ignition Switch for CC3500J Concrete Saw Core Cut by Diamond Products
$111.00
12
2500186 Choke Cable for CC3500J Concrete Saw Core Cut by Diamond Products
$29.00
13
2706078 Oil Pressure Sender for CC3500J Concrete Saw Core Cut by Diamond Products
$80.49
14
2900060 Cap Screw, Hex Hd., 3/8-16 x 2" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
15
2900079 Cap Screw, Hex Hd., 3/8-16 x 2-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
16
2900014 Flat Washer, 3/8" SAE for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
17
2900018 Locknut, 3/8-16, Nylon for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
View full details
