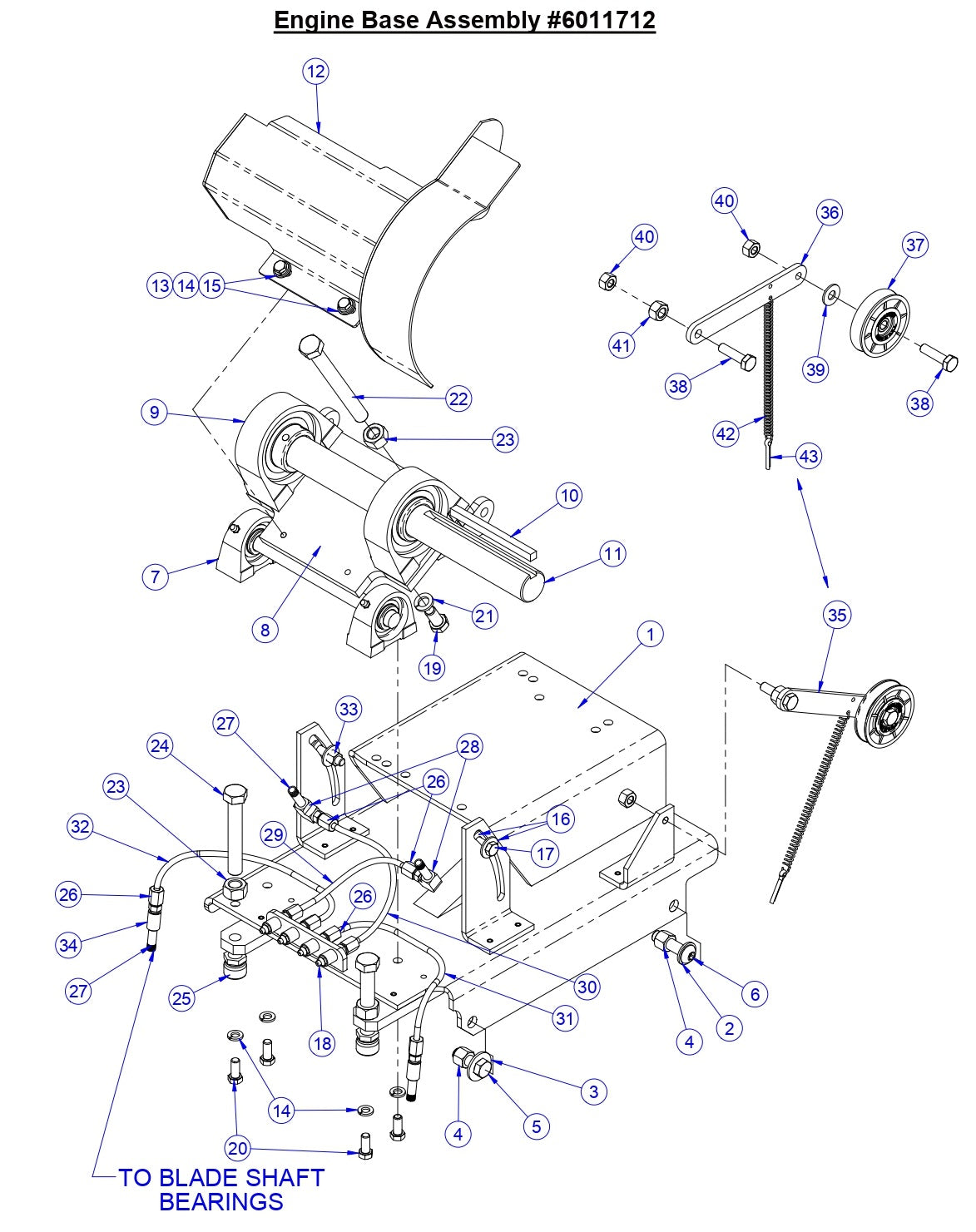

CC3500J Engine Base Assembly

CC3500J Engine Base Assembly

  • CC3500J Engine Base Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6011707 Engine Base Weldment CC3500J for CC3500J Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
2
2900058 Flat Washer, 1/2" SAE for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
3
2900127 Flat Washer, 1/2" USS for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
4
2900026 Lock Nut, 1/2-13 Nylon for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
5
2900499 Cap Screw, Hex Hd., 1/2-13 x 1-1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
6
2900288 Cap Screw, Button Hd., 1/2-13 x 2" for CC3500J Concrete Saw Core Cut by Diamond Products
$8.65
7
2500159 Pillow Block Bearing, 3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$25.00
8
6011710 Pivot Plate, Jack Shaft CC3500J for CC3500J Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
9
2500731 Pillow Block Bearing 1-1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$136.00
10
6010034 Key, 3/8" Sq. x 5" for CC3500J Concrete Saw Core Cut by Diamond Products
$12.50
11
6011706 Jack Shaft, CC3500J for CC3500J Concrete Saw Core Cut by Diamond Products
$129.69
12
6011708 Belt Guard, Jack Shaft CC3500J for CC3500J Concrete Saw Core Cut by Diamond Products
$209.88
13
2900883 Cap Screw, Hex Hd., 5/16-18 x 5/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
14
2900006 Lock Washer, 3/8" Split for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
15
2900014 Flat Washer, 3/8" SAE for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
17
2900029 Cap Screw, Hex Hd., 3/8-16 x 1-1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
18
2900062 Grease Fitting, 1/8" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
19
2900086 Cap Screw, Hex Hd., 1/2-13 x 1" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
20
2900621 3/8-16 x .875" Hex Head Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$3.99
21
2900084 Lock Washer, 1/2" Split for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
22
2900104 Tap Bolt, Hex Hd., 5/8-11 x 6" for CC3500J Concrete Saw Core Cut by Diamond Products
$14.02
23
2900112 Hex Nut, 5/8-11 for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
24
2900492 Tap Bolt, Hex Hd., 5/8-11 x 4" for CC3500J Concrete Saw Core Cut by Diamond Products
$10.72
25
2900446 Swivel Pad Nut, 5/8-11 for CC3500J Concrete Saw Core Cut by Diamond Products
$30.86
26
3201276 1/4" Compression Tube Fitting for CC3500J Concrete Saw Core Cut by Diamond Products
$12.00
27
3201462 Nipple, 1/8" NPT X 1-1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$10.84
28
3200154 Pipe Elbow, 1/8" NPT Female for CC3500J Concrete Saw Core Cut by Diamond Products
$10.76
29
6011715 Grease Tube, 1/4" x 7" for CC3500J Concrete Saw Core Cut by Diamond Products
$37.00
30
6011672 Grease Tube, 1/4" x 8" for CC3500J Concrete Saw Core Cut by Diamond Products
$42.00
31
6011673 Grease Tube, 1/4" x 14" for CC3500J Concrete Saw Core Cut by Diamond Products
$62.00
32
6011748 Grease Tube, 1/4" x 15" for CC3500J Concrete Saw Core Cut by Diamond Products
$69.00
33
2900018 Locknut, 3/8-16, Nylon for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
34
3200388 1/8" Pipe Coupling for CC3500J Concrete Saw Core Cut by Diamond Products
$8.69
35
6011765 Idler Assembly for CC3500J Concrete Saw Core Cut by Diamond Products
$93.55
36
6048085 Idler Arm for CC3500J Concrete Saw Core Cut by Diamond Products
$20.79
37
2500074 Idler Pulley 3" for CC3500J Concrete Saw Core Cut by Diamond Products
$49.50
38
2900316 Cap Screw, Hex Hd., M10-1.5 x 40mm for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
40
2900304 Lock Nut, M10-1.5 Nylon Insert for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
41
2900037 Hex Nut, 1/2-13 for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
42
2500195 Spring, 3/8" x 7-3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$16.01
43
2900055 Cotter Pin, 3/16" x 1" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
16
2900473 Flat Washer, 3/8" USS for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
39
2900473 Flat Washer, 3/8" USS for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
