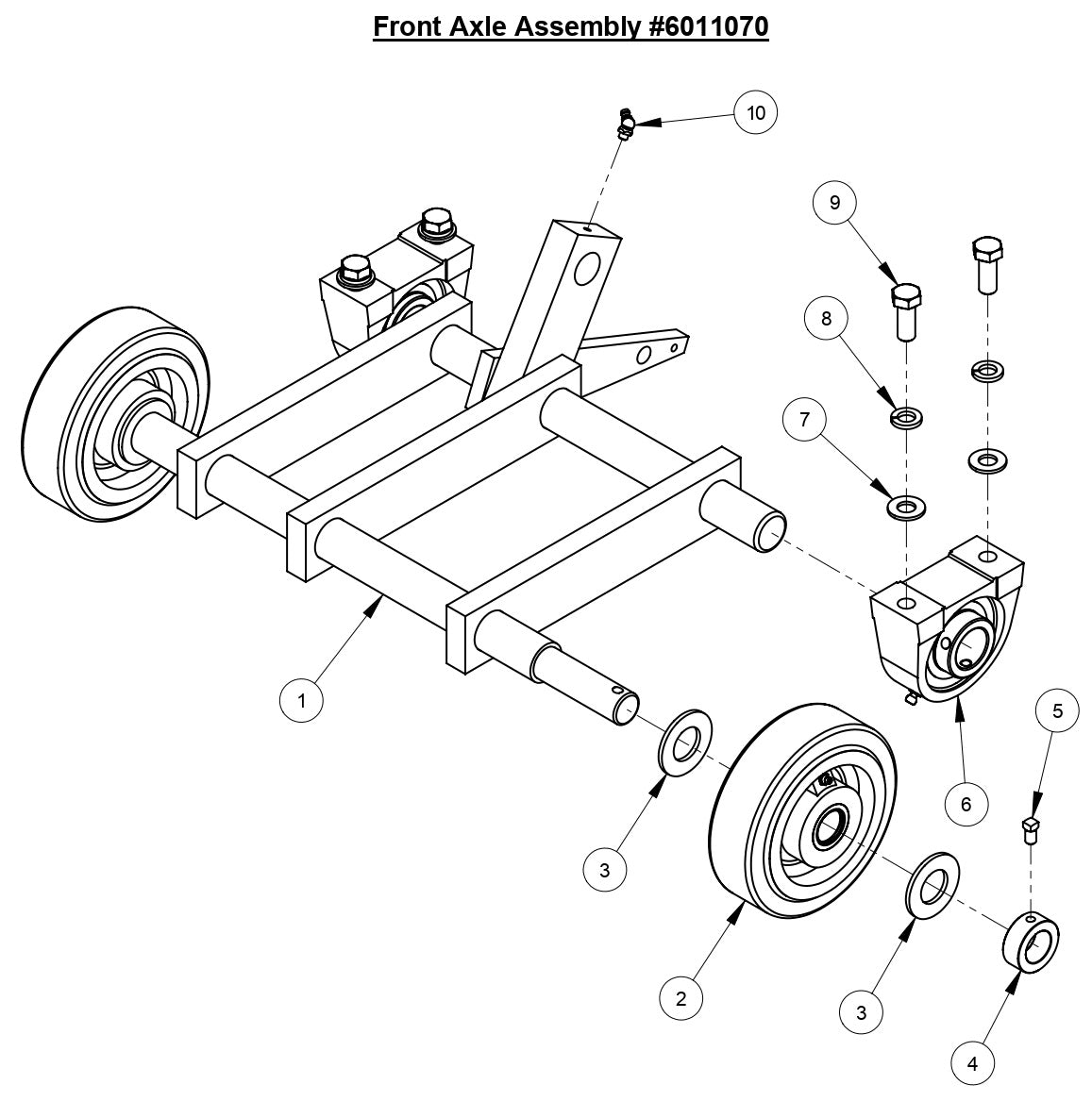

CC3500J Front Axle Assembly

CC3500J Front Axle Assembly

  • CC3500J Front Axle Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6011003 Front Axle Weldment for CC3500J Concrete Saw Core Cut by Diamond Products
$535.59
2
2500299 Wheel, 6" Front for CC3500J Concrete Saw Core Cut by Diamond Products
$126.72
3
2900295 Flat Washer, 1" SAE for CC3500J Concrete Saw Core Cut by Diamond Products
$4.00
4
2500009 Set Collar, 1" ID for CC3500J Concrete Saw Core Cut by Diamond Products
$15.00
5
2900431 Set Screw, Sq. Hd., 5/16-18 x 1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
6
2500158 Pillow Block Bearing 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$47.00
7
2900058 Flat Washer, 1/2" SAE for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
8
2900084 Lock Washer, 1/2" Split for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
9
2900025 Cap Screw, Hex Hd., 1/2-13 x 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
10
2900184 Grease Fitting, 1/4" NPT x 45 degree for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
View full details
