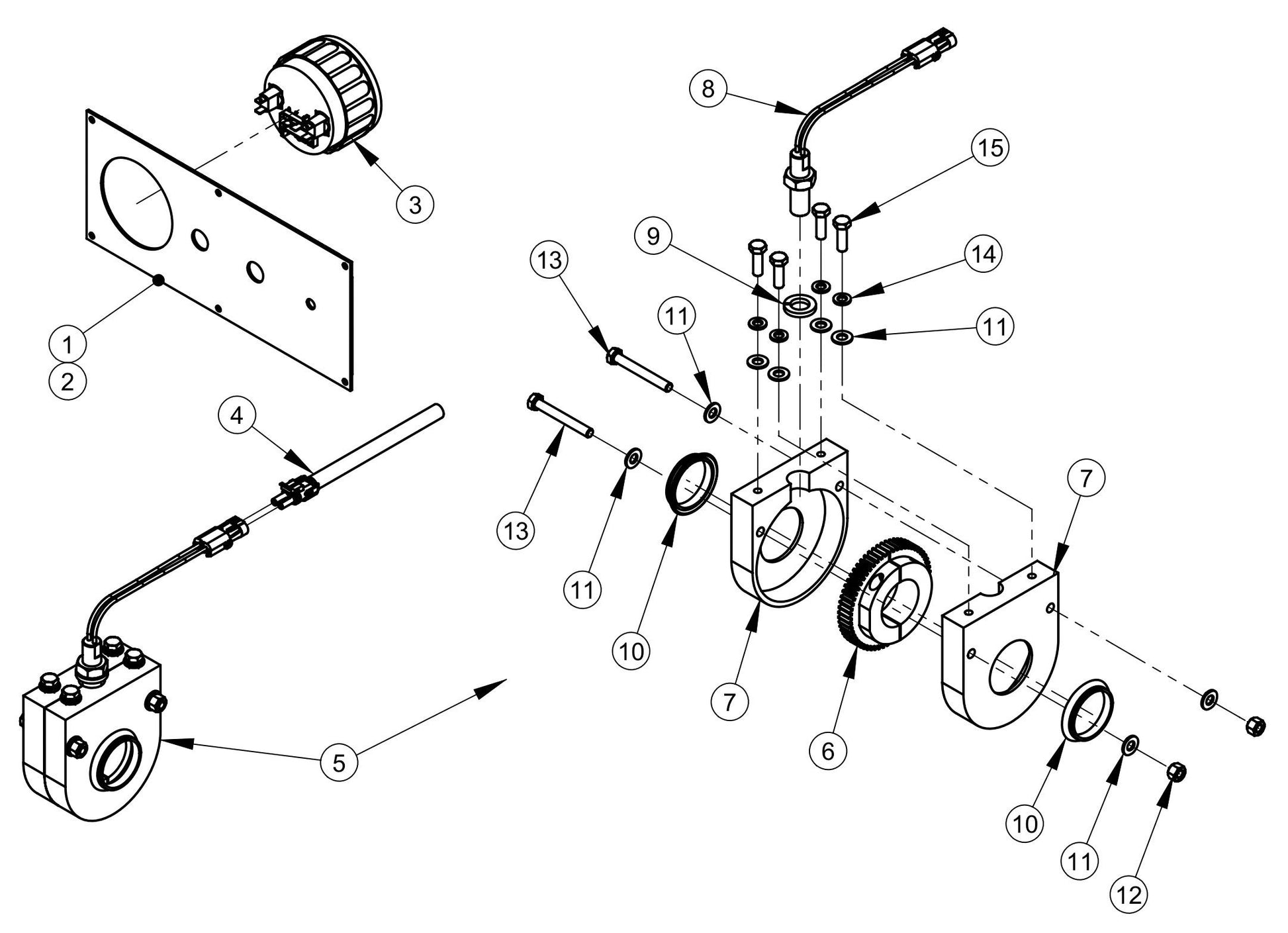

CC3500J Optional Shaft Tachometer Assembly Parts

CC3500J Optional Shaft Tachometer Assembly Parts

  • CC3500J Optional Shaft Tachometer Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6011382 Gauge Panel for CC3500J Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
2
1801384 Instrument Panel Decal (Tach) CC3500J for CC3500J Concrete Saw Core Cut by Diamond Products
$78.56
3
6010416 Tach/Hour Meter (VDO) Calibrated for CC3500J Concrete Saw Core Cut by Diamond Products
$593.01
4
2800397 Tach Sensor Harness for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$72.10
5
6011421 Shaft Tach Gear Assembly for CC3500J Concrete Saw Core Cut by Diamond Products
$571.23
6
6010230 Shaft Tach Gear for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$194.04
7
6010669 Shaft Tach Gear Guard for CC3500J Concrete Saw Core Cut by Diamond Products
$73.99
8
2800169 Magnetic Sensor w/Jam Nut for CC3500J Concrete Saw Core Cut by Diamond Products
$258.39
9
2900113 Lock Washer 5/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2501752 Seal, 1-3/4" V-Ring for CC3500J Concrete Saw Core Cut by Diamond Products
$36.59
11
2900022 Flat Washer 5/16" SAE 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
2900039 Lock Nut, 5/16"-18 Nylon for CC1100 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900726 Cap Screw, Hex Hd., 5/16-18 x 2-1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
14
2900031 Lock Washer 5/16" Split 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
