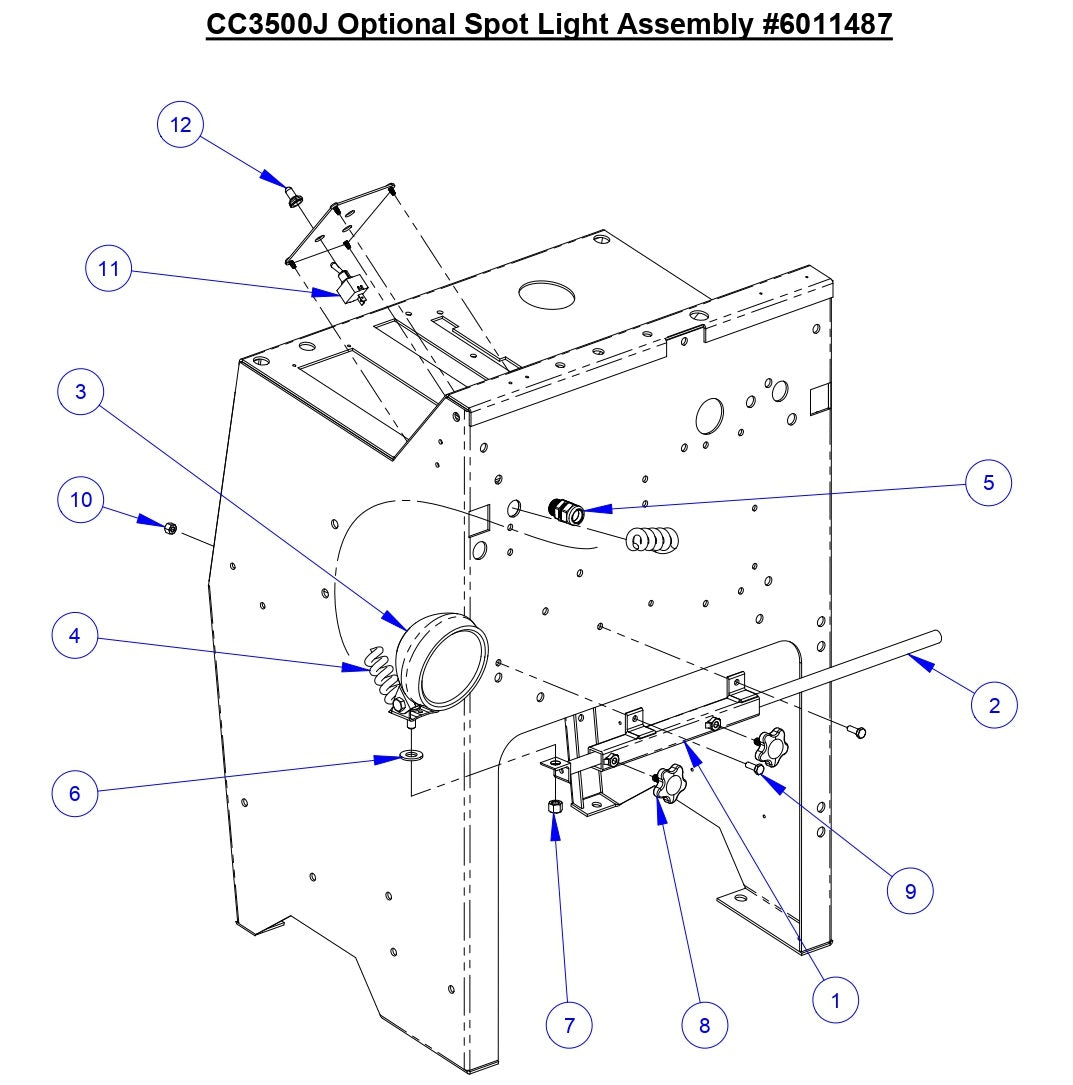

CC3500J Spot Light Assembly

CC3500J Spot Light Assembly

  • CC3500J Spot Light Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6011486 Light Bar Mount Bracket CC3500J for CC3500J Concrete Saw Core Cut by Diamond Products
$81.87
2
6010106 Light Bar for CC3500J Concrete Saw Core Cut by Diamond Products
$48.00
3
2500194 Spot Light, 12 Volt for CC3500J Concrete Saw Core Cut by Diamond Products
$57.00
4
6017086 Coiled Light Cord (1 Foot) for CC3500J Concrete Saw Core Cut by Diamond Products
$55.95
5
2800623 Cord Grip, 1/2" NPT Nylon for CC3500J Concrete Saw Core Cut by Diamond Products
$23.67
6
2900058 Flat Washer, 1/2" SAE for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
7
2900018 Locknut, 3/8-16, Nylon for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
8
2504922 Hand Lock Knob, 5/16-18 x 3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$8.95
9
2900144 Cap Screw, Hex Hd., 1/4-20 x 3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
10
2900010 Lock Nut, 1/4-20 Nylon for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
11
2800062 Toggle Switch On/Off for CC3500J Concrete Saw Core Cut by Diamond Products
$51.65
12
2800063 Toggle Switch Boot for CC3500J Concrete Saw Core Cut by Diamond Products
$10.27
View full details
