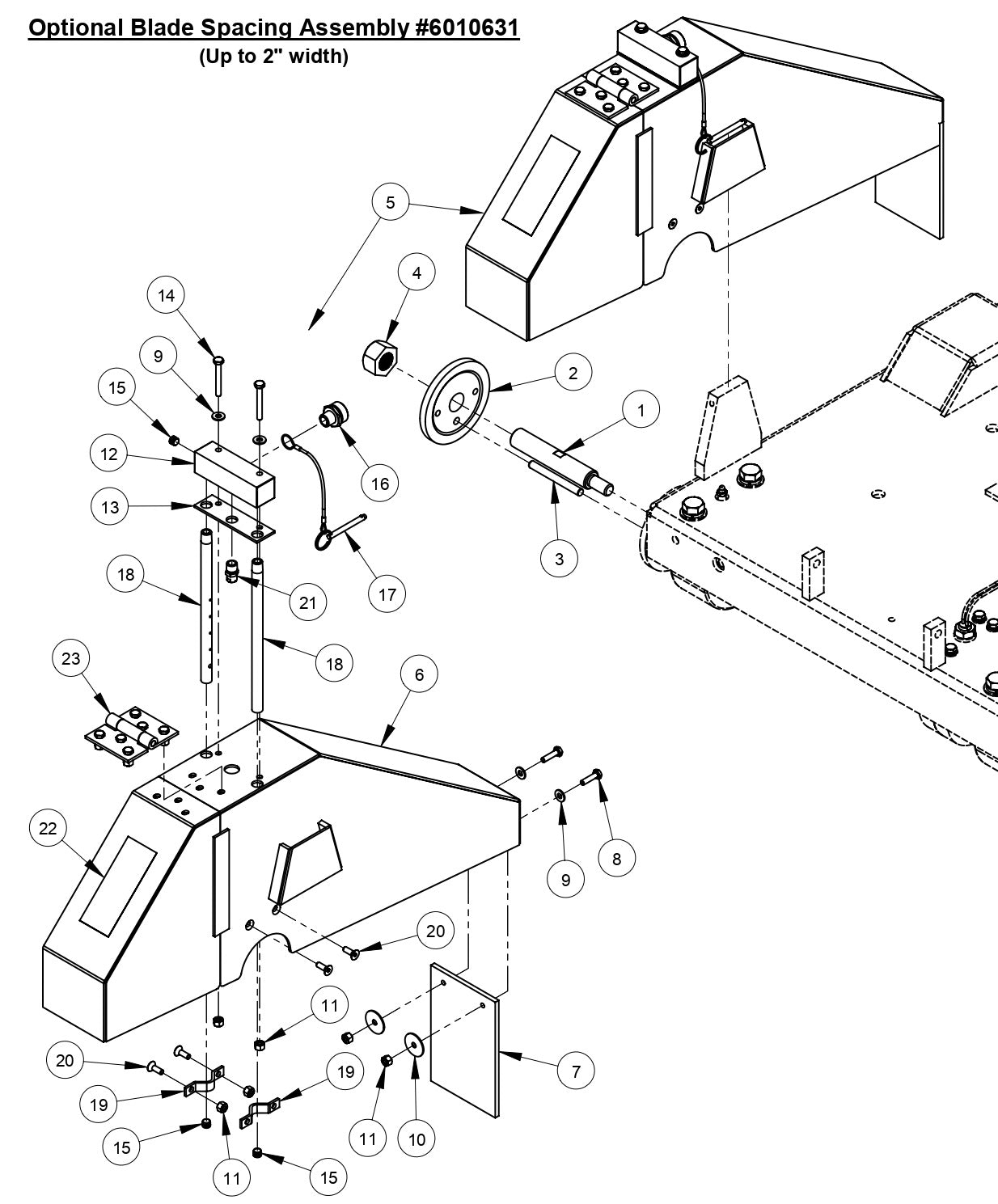

CC3535 Optional Blade Spacing Assembly (Up to 2" width) Parts

CC3535 Optional Blade Spacing Assembly (Up to 2" width) Parts

  • CC3535 Blade Shaft Assembly (Up to 2" width)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010186 Blade Shaft Extension, Left Hand Thread for CC3535 Concrete Saw Core Cut by Diamond Products
$102.59
2
6010187 Outer Flange 4-1/2" for CC3535 Concrete Saw Core Cut by Diamond Products
$136.62
3
2900218 Dowel Pin, 3/8" Dia. x 3-1/2" for CC3535 Concrete Saw Core Cut by Diamond Products
$14.54
4
2900212 Hex Nut, 1"-14 Left Hand for CC3535 Concrete Saw Core Cut by Diamond Products
$12.91
5
6010620 20" Wide Blade Guard Assembly for CC3535 Concrete Saw Core Cut by Diamond Products
$891.00
6
6010621 20" Wide Blade Guard Front & Rear Only for CC3535 Concrete Saw Core Cut by Diamond Products
$589.05
7
6010296 Splash Flap for CC3535 Concrete Saw Core Cut by Diamond Products
$33.20
8
2900008 Cap Screw, Hex Hd., 1/4-20 x 1" for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900009 Flat Washer, 1/4" SAE for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900083 Fender Washer, 1/4" x 1-1/4" for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900010 Lock Nut, 1/4-20 Nylon for CC3535 Concrete Saw Core Cut by Diamond Products
$2.99
12
6010288 Water Manifold for CC3535 Concrete Saw Core Cut by Diamond Products
$42.13
13
2500988 Water Manifold Gasket for CC3535 Concrete Saw Core Cut by Diamond Products
$8.66
14
2900294 Cap Screw, Hex Hd., 1/4-20 x 2" for CC3535 Concrete Saw Core Cut by Diamond Products
$3.99
15
3200001 Plug, 1/8" NPT for CC3535 Concrete Saw Core Cut by Diamond Products
$4.99
16
3200002 Fitting, 3/8" M. Pipe to 3/4" M. Garden for CC3535 Concrete Saw Core Cut by Diamond Products
$22.32
17
2900278 Lanyard with Lock Pin for CC3535 Concrete Saw Core Cut by Diamond Products
$20.52
18
6010085 Water Tube for 20" Guard for CC3535 Concrete Saw Core Cut by Diamond Products
$33.01
19
6048155 Water Tube Clamp for CC3535 Concrete Saw Core Cut by Diamond Products
$3.99
20
2900020 Cap Screw, Flat Hd., 1/4-20 x 3/4" for CC3535 Concrete Saw Core Cut by Diamond Products
$3.99
21
3200208 Nozzle, 1/4" NPT for CC3535 Concrete Saw Core Cut by Diamond Products
$34.44
22
1800001 Warning Label for CC3535 Concrete Saw Core Cut by Diamond Products
$3.99
23
6010251 Hinge Assembly for 20" Guard for CC3535 Concrete Saw Core Cut by Diamond Products
$43.98
